    Yuyao Lishuai Machine VISION Technology Co., Ltd
  • Top
  • Bar Lights (SLAC)

    Bar Lights (SLAC)

    Bar Lights (SLAC)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

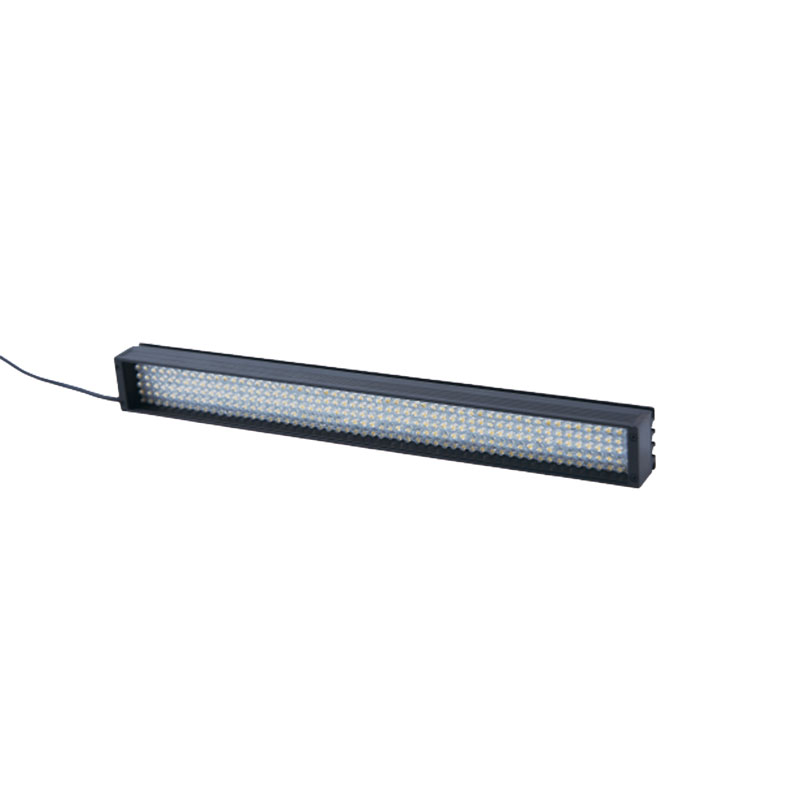

    Ultra-bright DIP LED is used for diffusion light at a small angle. The diffusion strip is optional to make the light softer.



    1.Product features



    SLA series light is a small-angle diffusion light. The aluminum sections is convenient for LED heat dissipation. Different sizes, different color temperature/wavelength can be selected. The back groove is convenient for installation. According to the characteristics of the measure object, a light group can be established and the beam angle can be adjusted.

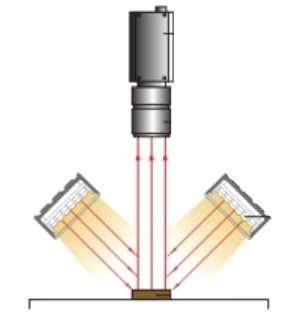

    2.Configuration example



    The back groove is convenient for installation and it can be used to install and adjust the angle of the lights in different lengths, which is convenient for CCD to capture the characteristics of the object.



    * This picture is shown as a sketch only.


    Sectional view of a bar light

    Configuration example

    3.Model name explaination

    4.Product list



    Model name

    LED color

    LED rows

    Voltage

    Power

    Weight

    Output

    connector

    IR

    LS-SLA-250x30

    IR

    5

    24V constant -voltage

    11W

    16.5W

    0.2kg

    SM 2.54 3Pin

    LS-SLA-300x30

    IR

    5

    19W

    22.5W

    0.2kg


    5.Applications



    1.Inspecting characters on printings

    2.Inspecting LED panel

    3.Image scanning



    Length increases in multiples of 50mm

    ***Subject to actual product***



    6.Application example



    Inspecting characters on cigarette case



    Measured object Configuration Effect image

    7.Service



    Color temperature/ Peak wavelength

     620nm-630nm 460nm-475nm  520nm-530nm

    3200K-7000K IR750~950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    c.Diffusion plate

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing LED rows

    e.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

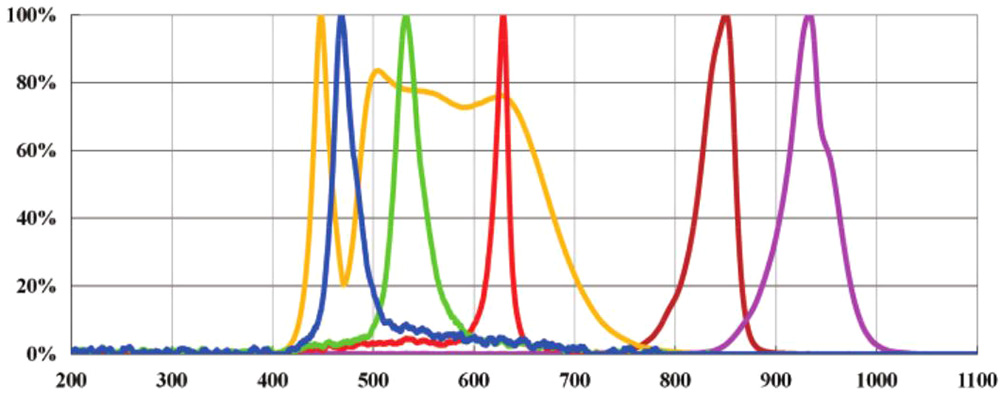

    8.Spectrum, uniformity

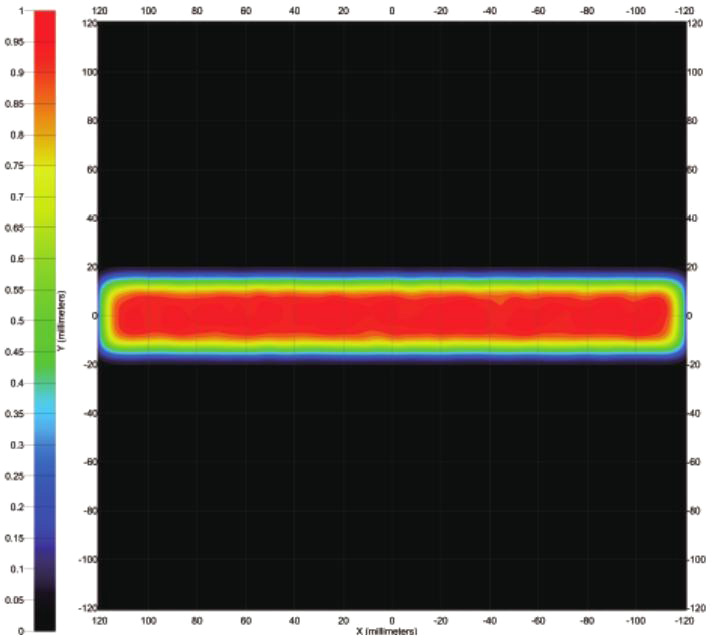

    Spectrum Uniformity(LS-SLA-250×30)

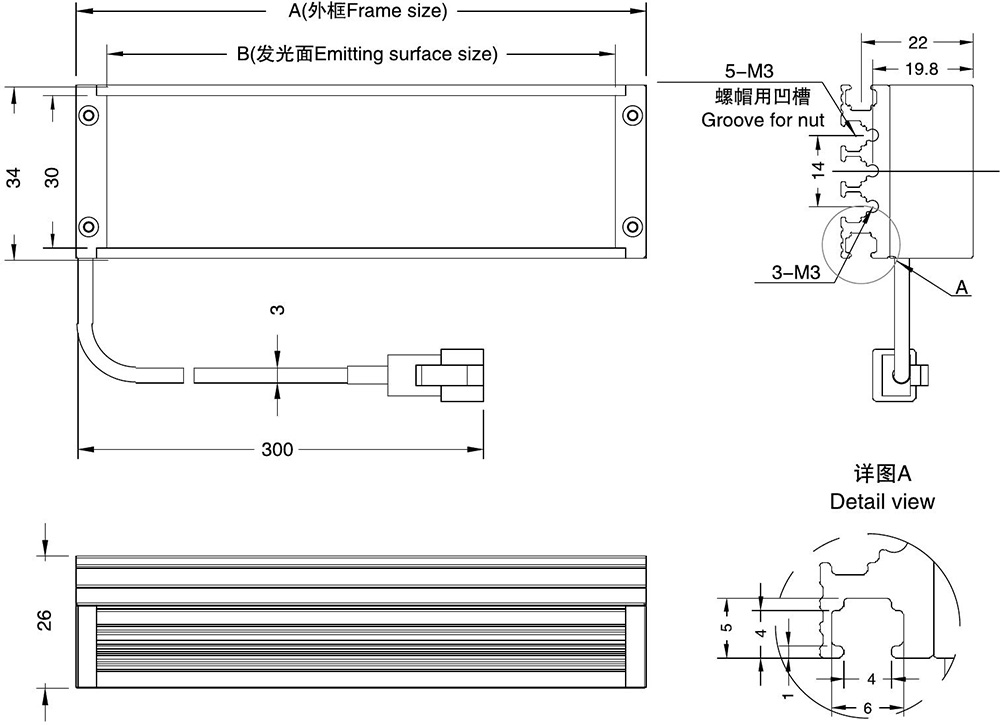

    9. Dimensions(mm)

    Model name

    Unit (mm)

    A

    B

    LS-SLA-250×30

    252

    240

    LS-SLA-300×30

    312

    300

    ***The size of the light source can be customized***
