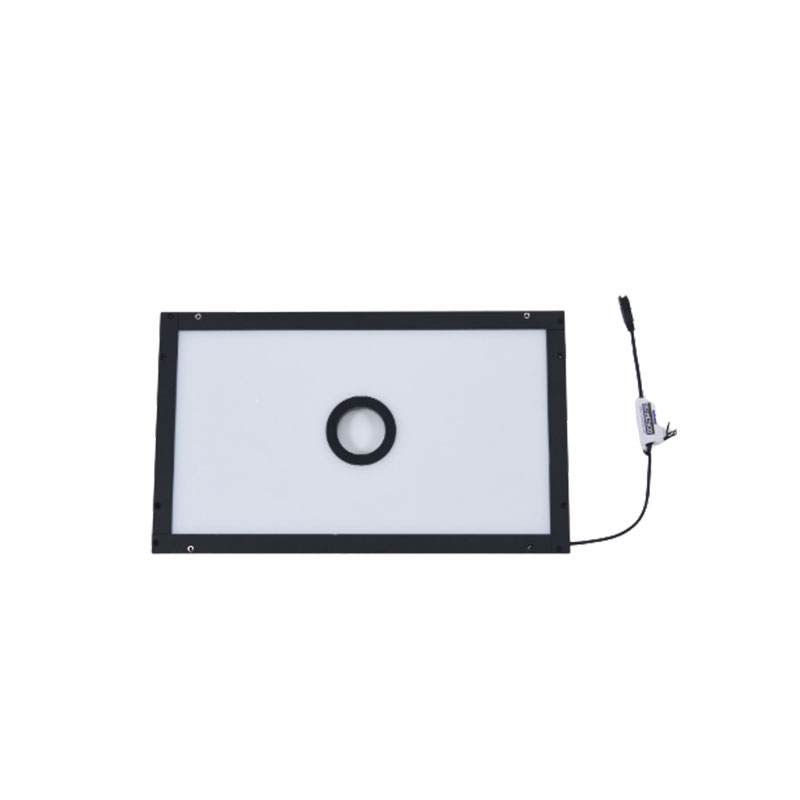

    Flat Lights (PLFR-2)

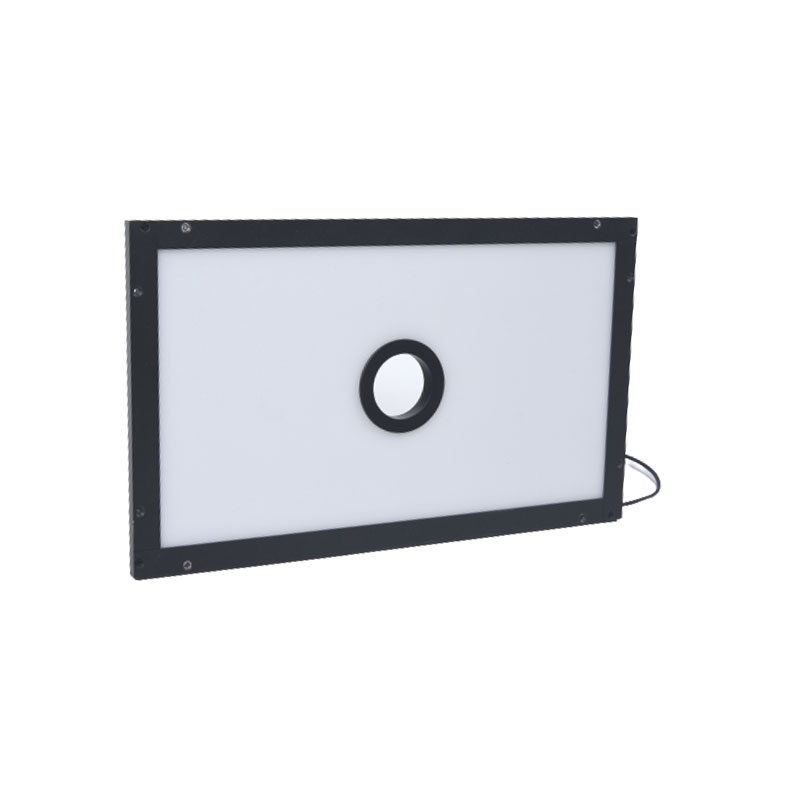

    Flat Lights (PLFR-2)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    High-density LED arrangement,multi-angle reflected,providing lights with high-uniformity.

    1.Product features

    The PLFR series keeps the characteristics of PLF series as high uniformity, super large and thin emitting surface, multiple size choice. It is a flat light with a camera window at the center of the emitting surface and it can be used as a front light.

    2. Configuration example

    The CCD camera shoots the object through the camera hole

    *This picture is shown as a sketch only.

    Sectional view of a flat light


    Configuration example

    3.Model name explaination



    4.Product list

    Model name

    LED color

    Voltage

    Power

    Weight

    Camera hole

    Output

    connector

    IR

    Size

    Hole

    LS-PLFR-250×300

    IR

    24V constant -voltage

    4.8W

    6W

    1.2kg

    40

    1

    SM 2.54 3Pin

    LS-PLFR-300×210

    IR

    4W

    5W

    1.0kg

    40

    1

    LS-PLFR-300×400

    IR

    7.6W

    9.6W

    1.7kg

    40

    1

    LS-PLFR-344×304

    IR

    6.6W

    8.3W

    1.5kg

    40

    4

    LS-PLFR-400×200

    IR

    5.1W

    6.4W

    1.2kg

    40

    2

    LS-PLFR-500×500

    IR

    17W

    19.5W

    3.9kg

    40

    1

    LS-PLFR-1000×1000

    IR

    48V constant- voltage/constant -current

    64W

    80W

    16kg

    40

    1

    G×16 4Pin

    ***Subject to actual product***

    5.Applications



    1.Large product location

    2.Large-size component recognition

    3.Appearance and outline measurement

    4.Product packing inspection

    5.Inspecting outline of metal parts

    6.Application example



    Inspecting outline of metal parts

    Measured object Configuration Effect image

    7.Service



    Color temperature/ Peak wavelength

    620nm-630nm 460nm-475nm520nm-530nm

    3200K-7000K  IR 750~950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.ustomizing color temperature, illuminance, peak wavelength

    c.ustomizing output connector, input voltage, drive mode.

    d.Customizing uniformity(95% max)

    e.Customizing mounting ways

    f.Customizing diameter, number and position of camera hole

    g.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support



    8.Spectrum, uniformity

    Spectrum Uniformity(LS-PLFR-500×500)

    9.Dimensions(mm)



    Light source model

    Unit (mm)

    Frame (± 1 mm)

    Luminous surface (±Jmm)

    A

    B

    C

    D

    E

    F

    LS-PLFR-250×300

    286

    336

    276.6

    326.6

    250

    300

    LS-PLFR-300×210

    336

    246

    326.6

    236.6

    300

    210

    LS-PLFR-300×400

    336

    436

    326.6

    426.6

    300

    400

    LS-PLFR-344×304

    380

    340

    370.6

    330.6

    344

    304

    LS-PLFR-400×200

    436

    236

    426.6

    226.6

    400

    200

    LS-PLFR-500×500

    536

    536

    526.6

    526.6

    500

    500


    ***The size of the light source can be customized***
