  • Flat Lights PLC

    Flat Lights PLC

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    PLF、PLE、PLC series

    Emitting lights from a large ultra-thin surface with high uniformity.



    1.Product features

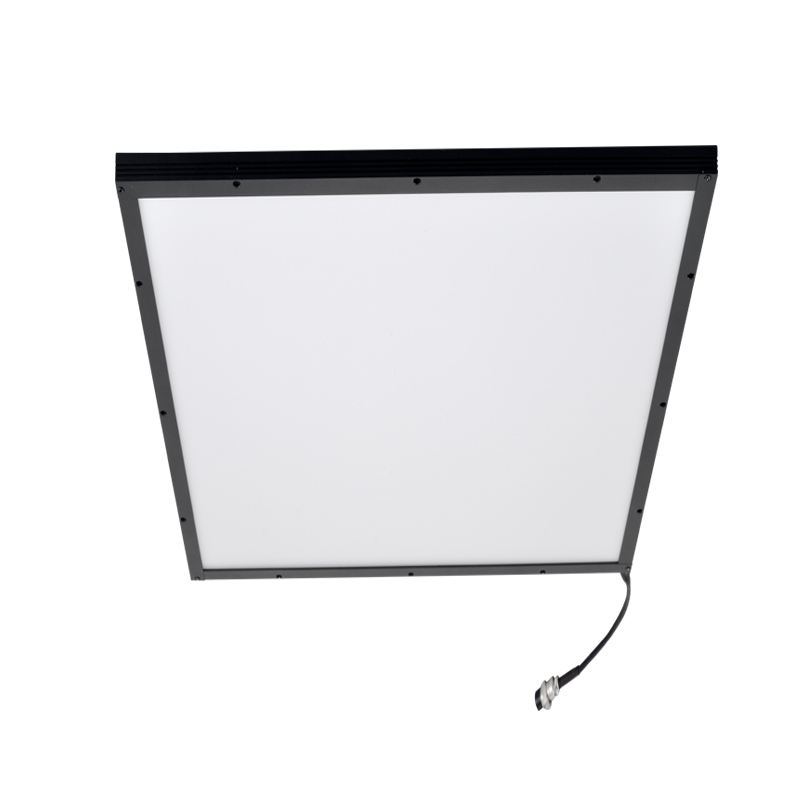

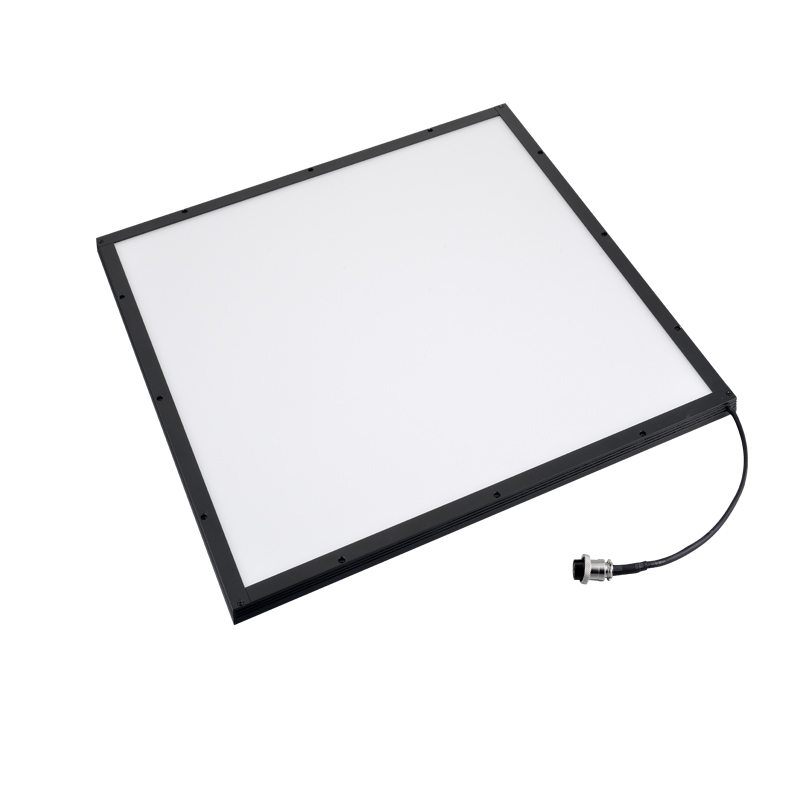

    The PLF, PLE, and PLC series lights use side-emitting mode to make the irradiated light softer and more uniform. Different light-emitting surface sizes can be flexibly selected, and single-color temperature or dual-color temperature is optional. The maximum size of PLF with thickness 10mm is 500x500mm, the maximum size of PLE with thickness 15mm is 1200x1200mm, and the maximum size of PLC with thickness 35mm is 2000x2000mm.

    2.Configuration example

    The CCD camera is placed on the top and captures the characteristics of the measured object under the flat light.



    * This picture is shown as a sketch only.

    Sectional view of a flat light

    Configuration example

    3.Model name explaination



    4.Product list

    Model name

    LED color

    Voltage

    Power

    Weight

    Output

    connector

    LS-PLF-51×102

    IR

    24V constant -voltage

    2W

    2.7W

    0.02kg

    SM

    2.54 3Pin

    LS-PLF-51×204

    IR

    3.5W

    6.5W

    0.2kg

    LS-PLF-180×150

    IR

    6.5W

    12W

    0.4kg

    LS-PLF-200×200

    IR

    4W

    6.5W

    0.7kg

    LS-PLF-350×250

    IR

    8.5W

    10.5W

    2.0kg

    LS-PLF-500×500

    IR

    17W

    19.5W

    3.9kg

    LS-PLE-640×458

    IR

    48V constant -voltage



    18.5W

    23W

    5.5kg

    GX16 4Pin

    LS-PLE-968×648

    IR

    39W

    49W

    17kg

    LS-PLE-1120×960

    IR

    66W

    83W

    20kg

    LS-PLE-1160×500

    IR

    36W

    45W

    11.5kg

    LS-PLE-1160×1000

    IR

    72W

    90.5W

    21.5kg

    LS-PLC-1300×880

    IR

    64W

    80W

    24.5kg

    LS-PLC-2000×1000

    IR

    124.5W

    156W

    42kg

    LS-PLC-2000×2000

    IR

    160W

    200W

    77kg

    ***Subject to actual product***

    5.Applications

    1.Inspecting the printing on large tyres

    2. Inspecting dead LED

    3.Inspecting liquid volume in glass bottles

    4.Inspecting circuit board and its printing

    5.Module calibration testing

    6.Inspecting outline of metal parts

    6.Application example

    Inspecting outline of metal parts

    Measured object Configuration Effect image

    7.Service

    Color temperature/ Peak wavelength

    620nm-630nm 460nm-475nm520nm-530nm

    3200K-7000K IR 750〜950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing uniformity (95% max)

    e.Customizing mounting ways

    f.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

    8.Spectrum, uniformity

    Spectrum uniformity(Ls-PLF-200x200)

    9.Dimensions(mm)

    Model name

    Unit(mm)

    Frame size(±1mm)

    Mounting hole(± 1mm)

    Emitting surface size(± 1mm)

    A

    B

    C

    D

    E

    F

    LS-PLF-51×102

    87

    138

    77.6

    128.6

    51

    102

    LS-PLF-51×204

    87

    240

    77.6

    230.6

    51

    204

    LS-PLF-180×150

    216

    186

    206.6

    176.6

    180

    150

    LS-PLF-200×200

    236

    236

    226.6

    226.6

    200

    200

    LS-PLF-350×350

    386

    386

    376.6

    376.6

    350

    350

    LS-PLF-500×500

    536

    536

    526.6

    526.6

    500

    500

    ***The size of the light source can be customized***

    Model name

    Unit(mm)

    Frame size(±1mm)

    Mounting hole(± 1mm)

    Emitting surface size(± 1mm)

    A

    B

    C

    D

    E

    F

    LS-PLE-640×458

    670

    488

    659

    477

    640

    458

    LS-PLE-968×648

    998

    678

    987

    667

    968

    648

    LS-PLE-1120×960

    1150

    1010

    1139

    979

    1120

    960

    LS-PLE-1160×500

    1190

    530

    1179

    519

    1160

    500

    LS-PLE-1160×1000

    1190

    1030

    1179

    1019

    1160

    1000

    ***The size of the light source can be customized***

    Model name

    Uni(mm)

    Frame size(±1mm)

    Mounting hole(± 1mm)

    Emitting surface size(± 1mm)

    A

    B

    C

    D

    E

    F

    LS-PLC-1300×880

    1350

    930

    1335

    915

    1300

    880

    LS-PLC-2000×1000

    2050

    1050

    2035

    1035

    2000

    1000

    LS-PLC-2000×2000

    2050

    2050

    2035

    2035

    2000

    2000

    ***The size of the light source can be customized***
