  • LS-MTR-1300X880

    LS-MTR-1300X880

    LS-MTR-1300X880

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    Large flat light, with built-in sensor, can automatically calibrate with the controller, so that the light data is kept within the error range.



    1.Product features



    The MTR series lighting source is built-in multiple probes. With MTR control unit it can monitor lighting intensity and color temperature without dead angle in real time. The MTR series lighting source has an uniformity up to 95% and a color temperature uniformity up to above 98%.

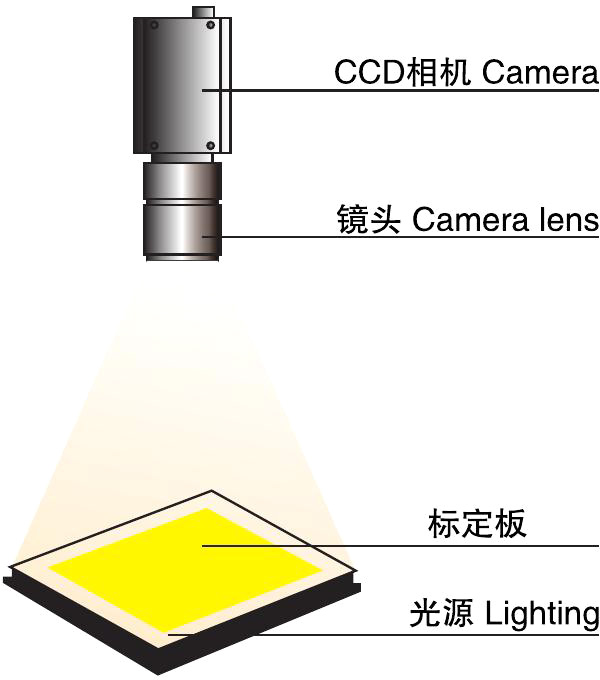

    2.Configuration example



    The module or sensor is placed above the light source. Calibrate the optical parameters of the tested module or sensor.

    * This picture is shown as a sketch only.

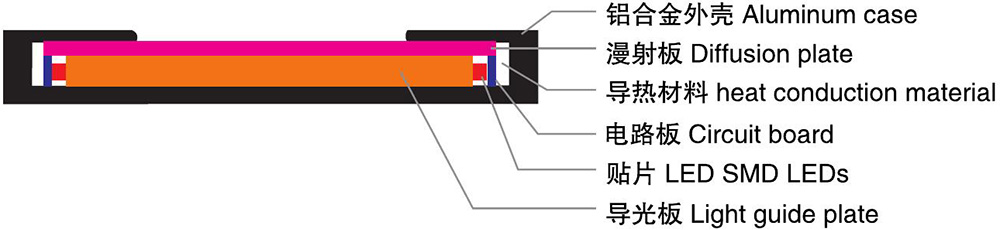

    Sectional view of an auto-calibrating light

    Configuration example

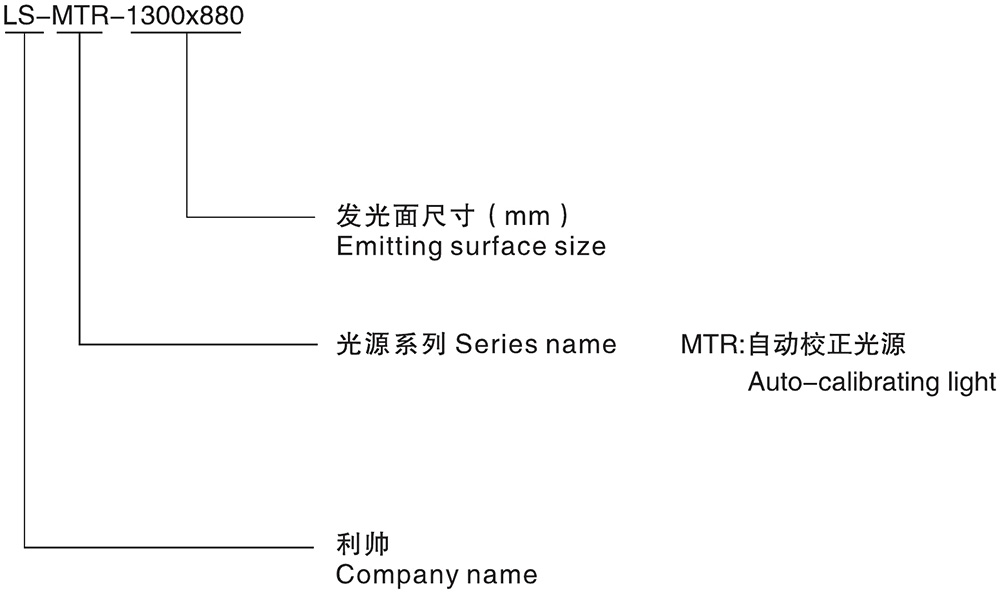

    3. Model name explaination

    4.Product list

    Model name

    LED color

    Voltage

    Power

    Weight

    Output

    connector

    LS-MTR-1300×880

    3200K-7000K

    48V constant -voltage

    40W

    25kg

    GX16 4Pin

    ***Subject to actual product***

    5.Applications



    1.Inspecting appearance and outline

    2.Dimension measurement

    3.Transparent object scratch detection

    4.Mechanical parts size inspection

    5.Module calibration testing



    6.Application example

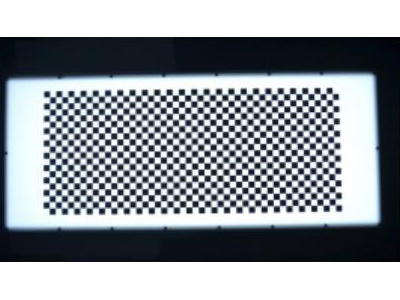

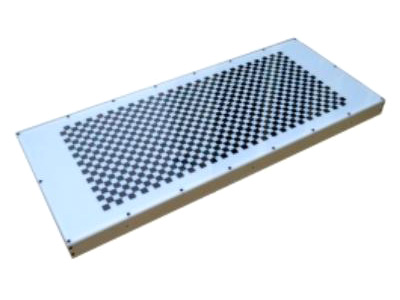

    Calibration board testing

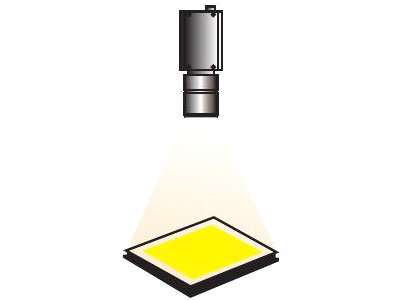

    Measured object Configuration Effect image

    7.Service

    Color temperature/ Peak wavelength

    3200K-7000K

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Communication extension cable

    c.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing uniformity(95% max)

    e.Customizing mounting ways

    f.Customizing bi-color or multiple combined lights

    g.Customizing number of sensors

    Warranty

    One year product warranty and provide technical support

    8.Spectrum, uniformity

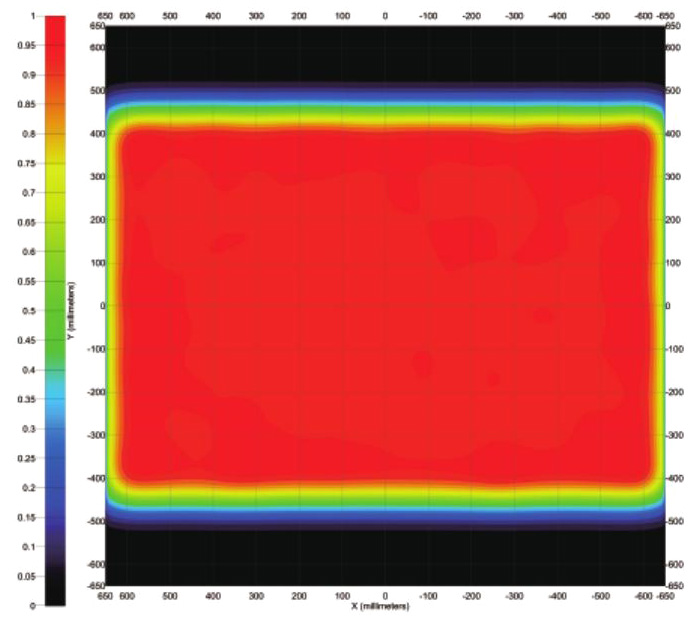

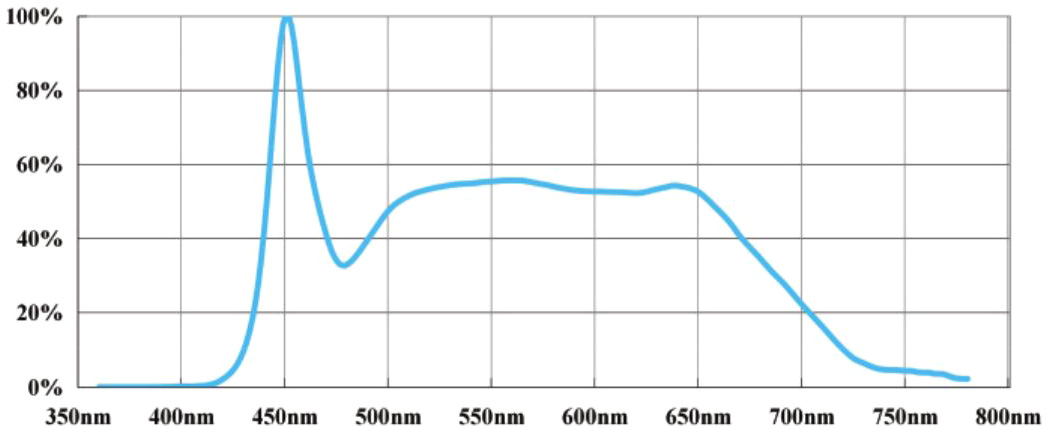

    Spectrum Uniformity

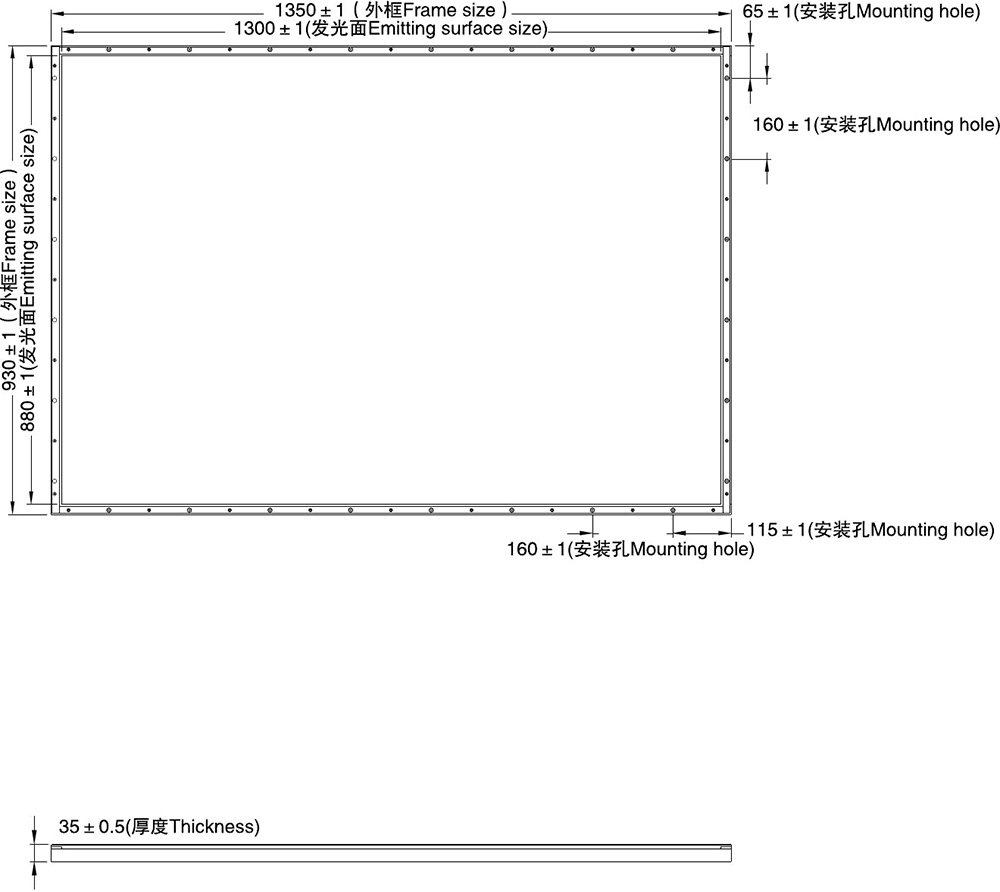

    9. Dimensions(mm)
