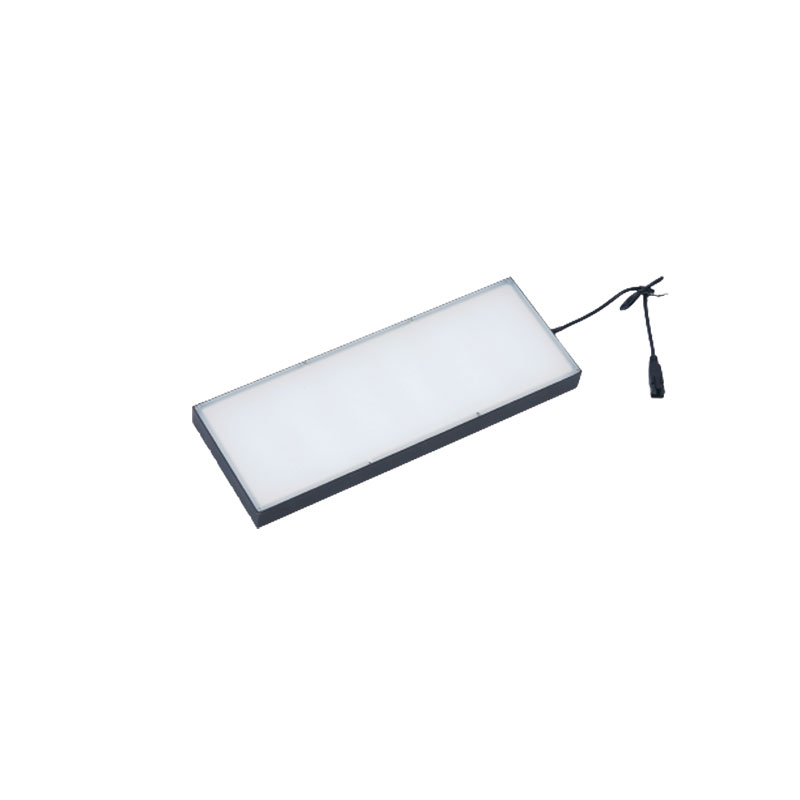

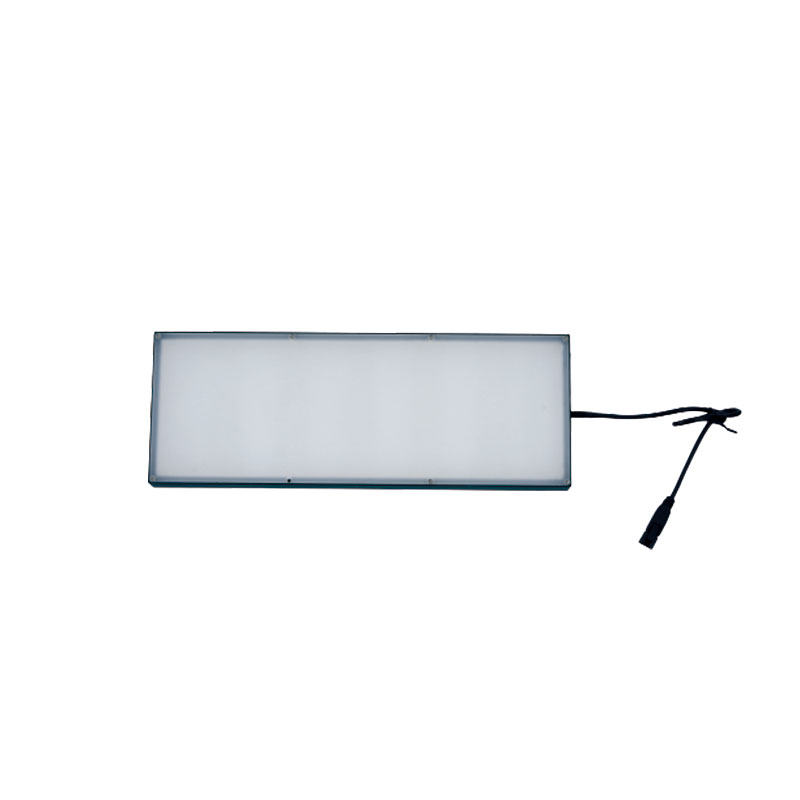

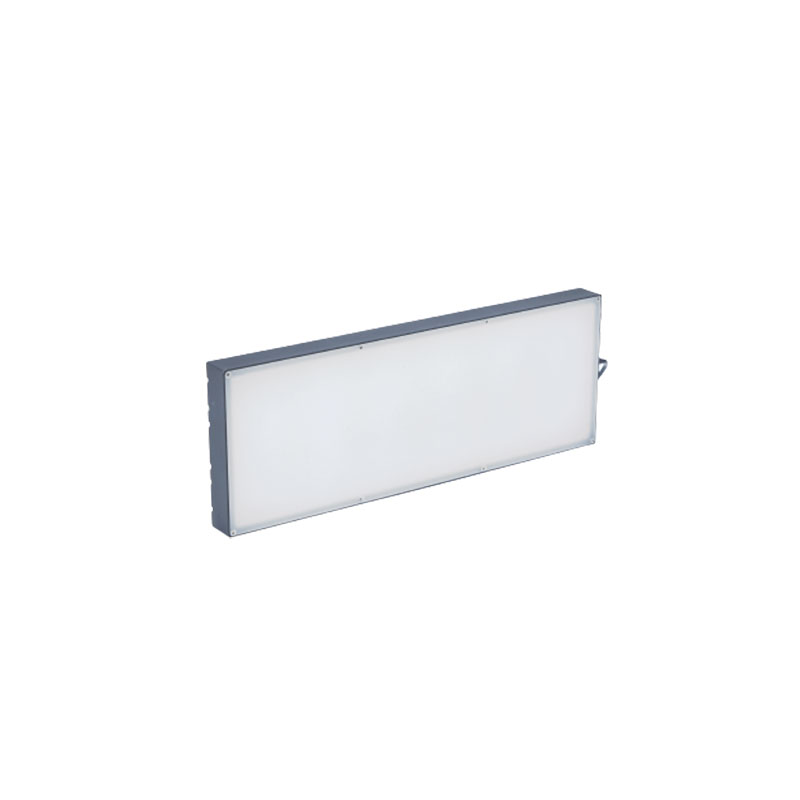

    Flat Lights (BK-3)

    Flat Lights (BK-3)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    BK series light uses a back-lighting method, high brightness and high uniformity.

    1.Product features



    The BK series light uses a back-lighting method, using ultra-bright LEDs in high-density uniform arrangement. It illuminates uniformly through the diffusion plate which is much brighter than side-emitting lights.

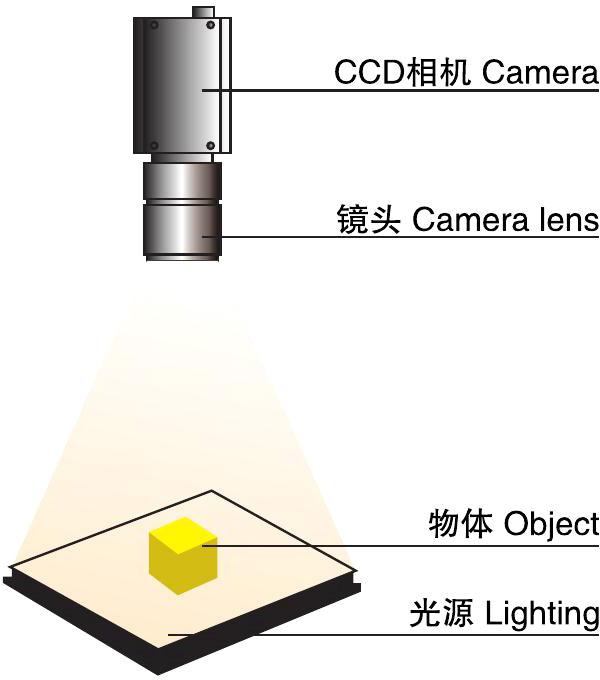

    2.Configuration example



    The CCD camera is placed on the top and captures the characteristics of the measured object under the flat light.

    *This picture is shown as a sketch only.

    Sectional view of a flat light

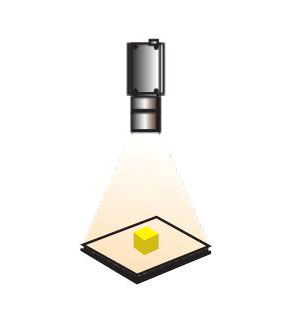

    Configuration example

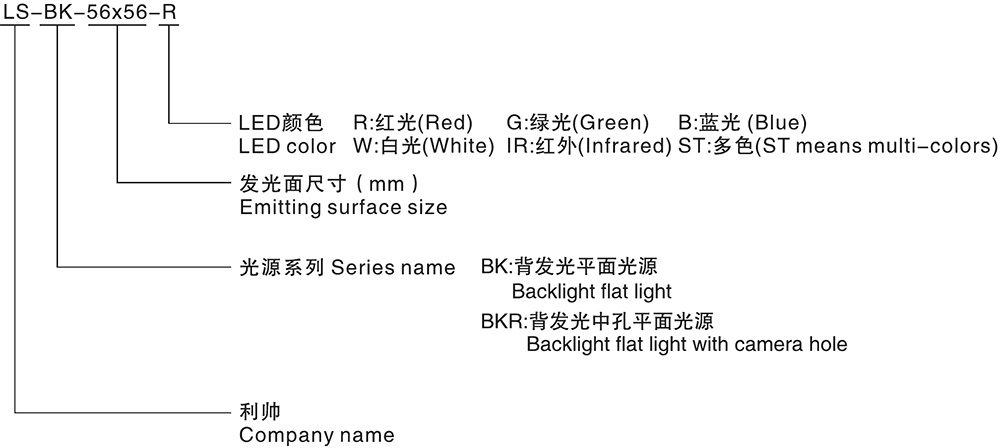

    3.Model name explaination

    4.Product list

    Model name

    LED color

    Voltage

    Power

    Weight

    Output

    connector

    IR

    LS-BK-56×56

    IR

    24V constant -voltage

    3W

    6.5W

    0.2 kg

    SM

    2.54 3Pin

    LS-BK-104×104

    IR

    7.2W

    12W

    3.3kg

    LS-BK-120×120

    IR

    15.5W

    25.8W

    0.6kg

    LS-BK-196×196

    IR

    18W

    30W

    6.2kg

    LS-BK-210×210

    IR

    19.5W

    32.1W

    1.4kg

    LS-BK-260×75

    IR

    11.7W

    19.5W

    0.2kg

    LS-BK-260×90

    IR

    14W

    23.4W

    0.7 kg

    LS-BK-270×270

    IR

    21.6W

    36W

    2.4kg

    LS-BK-314×314

    IR

    22.8W

    38W

    2.6kg

    LS-BK-350×350

    IR

    23.4W

    39W

    0.9kg

    LS-BK-500×500

    IR

    24W

    40W

    0.2 kg

    LS-BK-820×720

    IR

    48V constant-voltage/constant-current

    45W

    75W

    8.7kg

    G×16 4Pin

    LS-BK-1400×1100

    IR

    120W

    200W

    11.8kg

    5.Applications



    1.Inspecting appearance and outline

    2.Dimension measurement

    3. Transparent object scratch detection

    4.Mechanical parts size inspection

    6.Application example



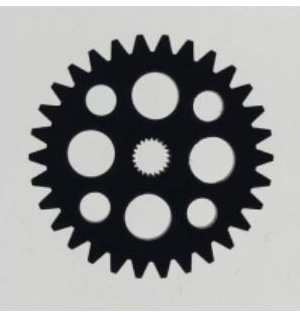

    Inspecting outline of metal parts

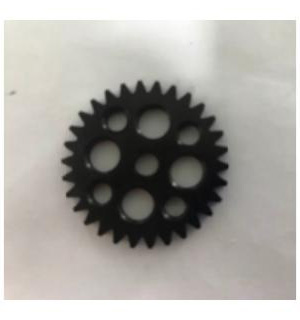

    Measured object Configuration Effect image

    7.Service



    Color temperature/ Peak wavelength

     620nm~630nm 460nm~475nm  520nm~530nm

    3200K~7000K IR750~950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing uniformity(95% max)

    e.Customizing mounting ways

    f.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

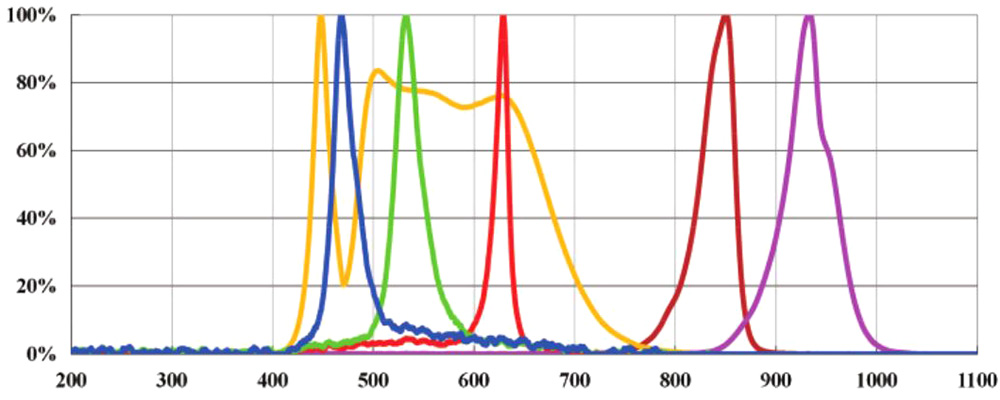

    8.Spectrum, uniformity

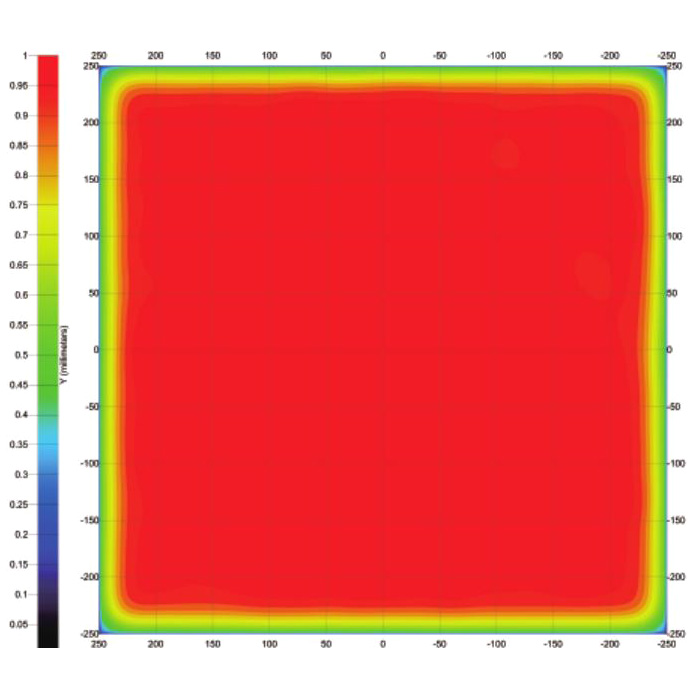

    Spectrum uniformity(LS-BK-500x500)

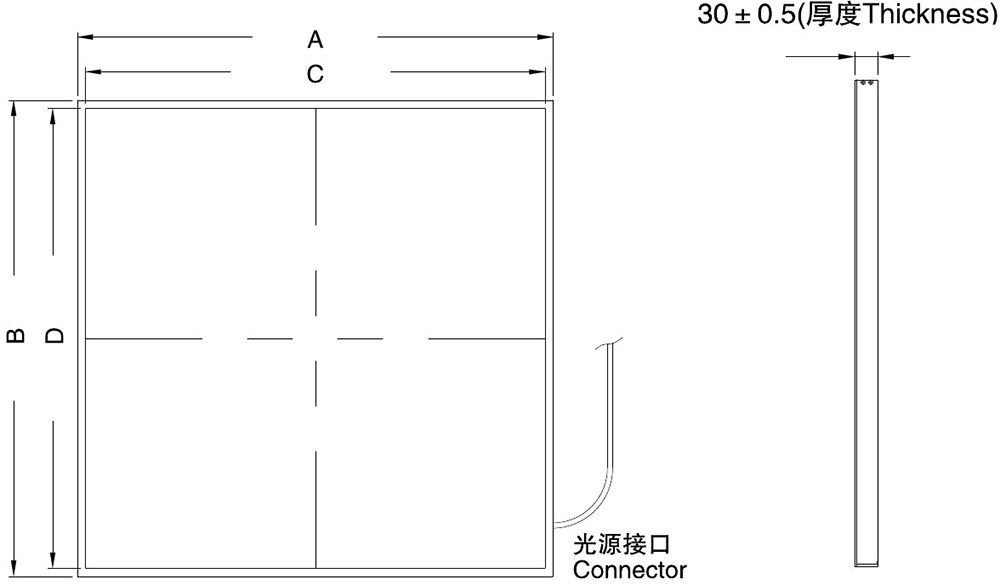

    9. Dimensions(mm)

    Model name

    Unit(mm )

    Frame size(±1 mm)

    Emitting surface size(±1mm)

    A

    B

    C

    D

    LS-BK-104x104

    124

    124

    104

    104

    LS-BK-196x196

    216

    216

    196

    196

    LS-BK-260X75

    290

    95

    260

    75

    LS-BK-260x90

    290

    110

    260

    90

    LS-BK-270x270

    290

    290

    270

    270

    LS-BK-314x314

    334

    334

    314

    314

    LS-BK-350X350

    370

    370

    350

    350

    LS-BK-500X500

    520

    520

    500

    500

    LS-BK-820x720

    840

    740

    820

    720

    LS-BK-1400x1100

    1420

    1120

    1400

    1100



    ***The size of the light source can be customized***
