  • AC Constant-voltage Single-channel Analog Controller (PDD)

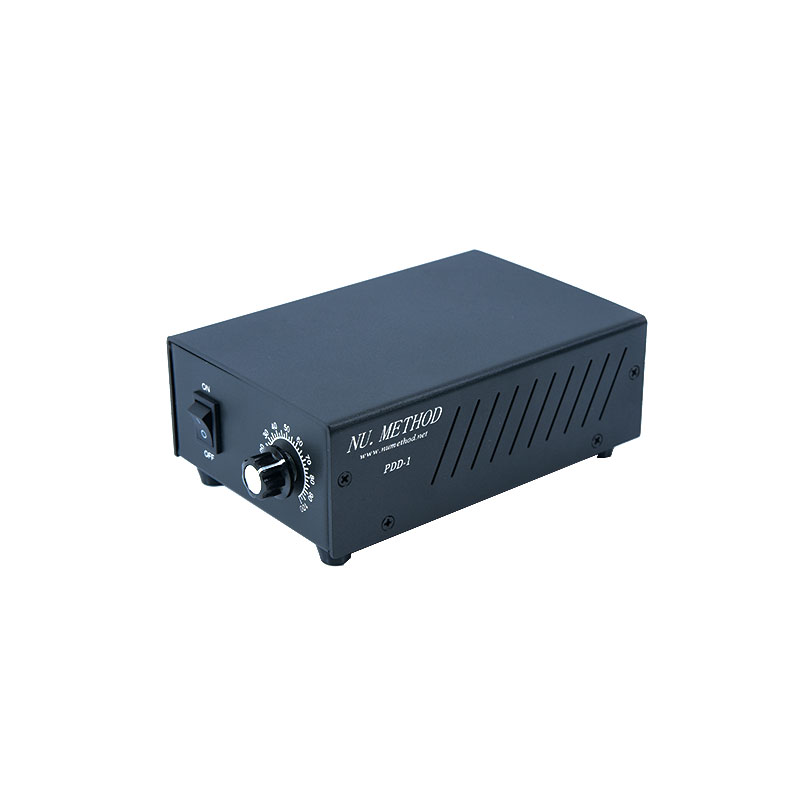

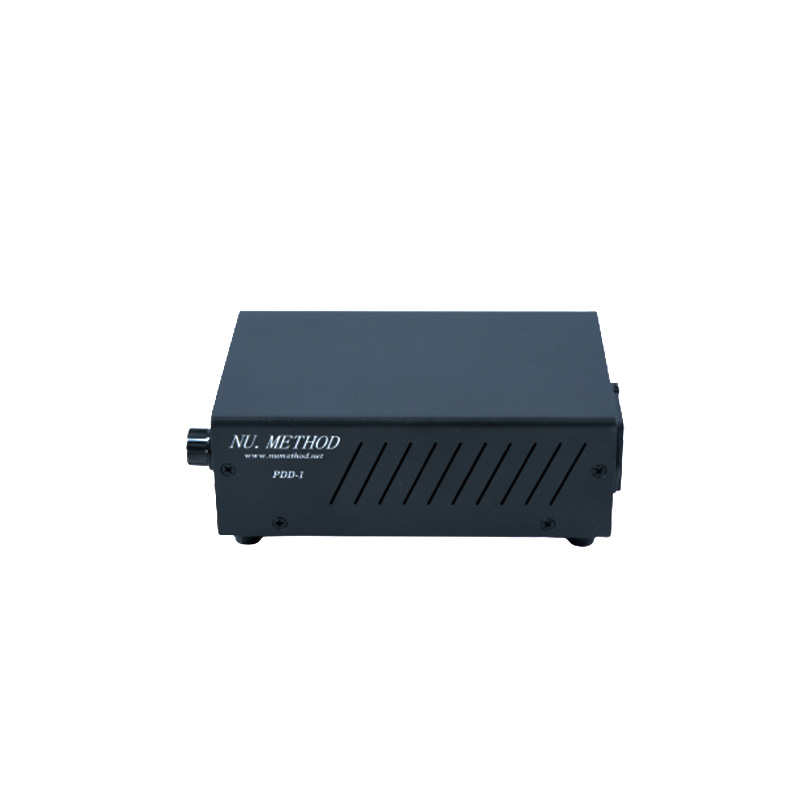

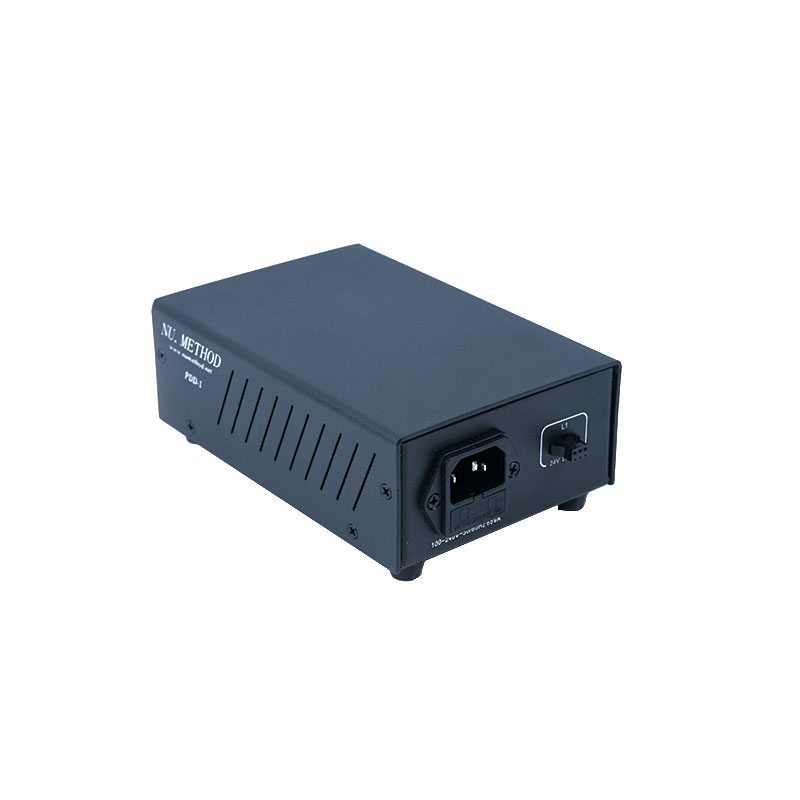

    AC Constant-voltage Single-channel Analog Controller (PDD)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    Manual stepless dimming, smaller size.

    1. Product features

    The PDD series analog control unit are suitable for 24V DC input lighting. They can be dimmed directly through the potentiometer. Their small size minimize the working space.

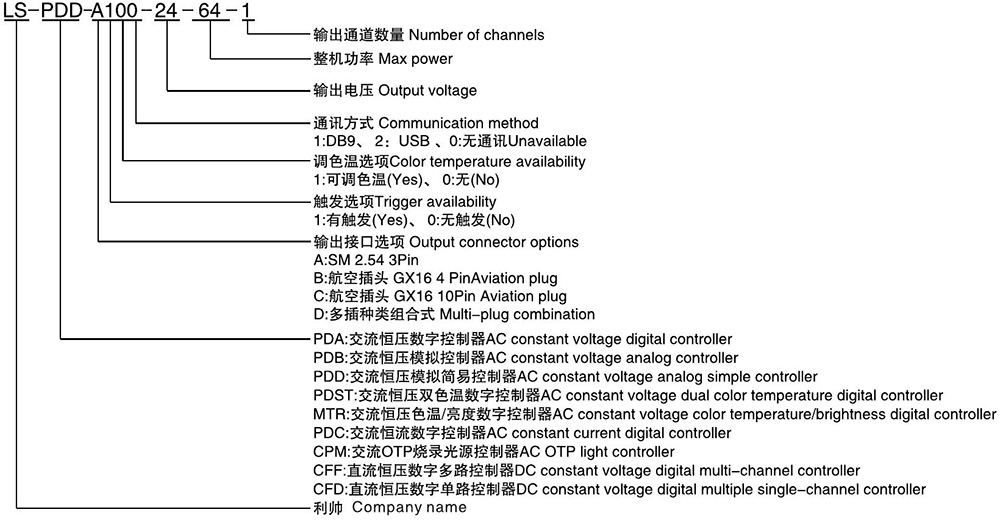

    2. Naming rule



    Complete model

    Abbr. Model

    LS-PDD-A100-24-65-1

    PDD-1

    LS-PDD-A100-24-65-2

    PDD-2

    3. Product specifications

    Model name

    PDD-1

    PDD-2

    Input voltage/Frequency

    AC 100〜240V 50/60HZ

    Lighting method

    Continuous lighting/Strobe lighting

    Number of channels

    1 channels

    2 channels

    Drive method

    Constant-voltage system

    Rated capacity

    65W max (30W max per channel)

    Lighting mode setting

    Manual

    Lighting mode setting

    0-100%

    Output connector

    (24V LIGHT ) SM port3-pin

    External control connector

    -

    PWM frequency

    40 KHz

    Applicable light units

    Lighting with input DC24V, constant-voltage driving system

    Operating temperature and humidity

    Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)

    Cooling method

    Natural cooling

    Installation method

    Naturally placed

    Material and surface processing

    Aluminum alloy, surface electrophoresis

    Weight

    0.5Kg

    0.55Kg

    Included accessories

    AC power cord 1.2m, Instruction manual



    4. Service

    Accessories

    a.DC extension cord

    b.AC power cord



    Customization



    a.Communication Cable, DC extension cord, length can be customized

    b.Output and input interface can be customized

    c.Power/Voltage can be customized

    Warranty

    One-year warranty and technical support

    5.Dimensions(mm)

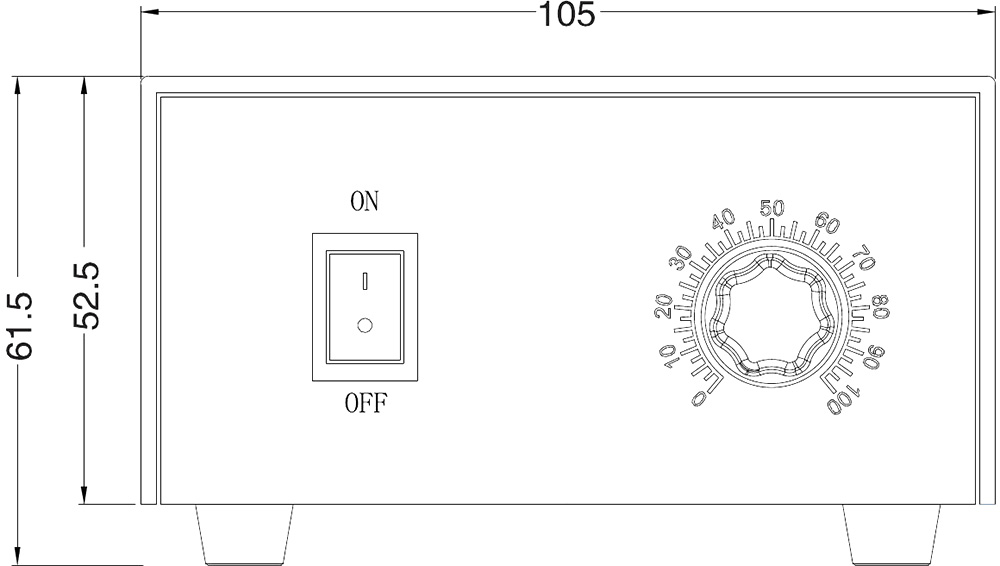

    PDD-1 Front view

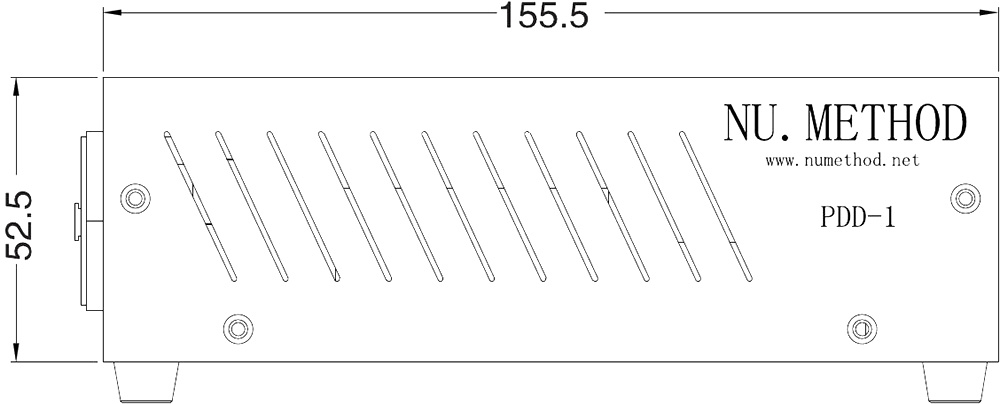

    PDD-1 Side view

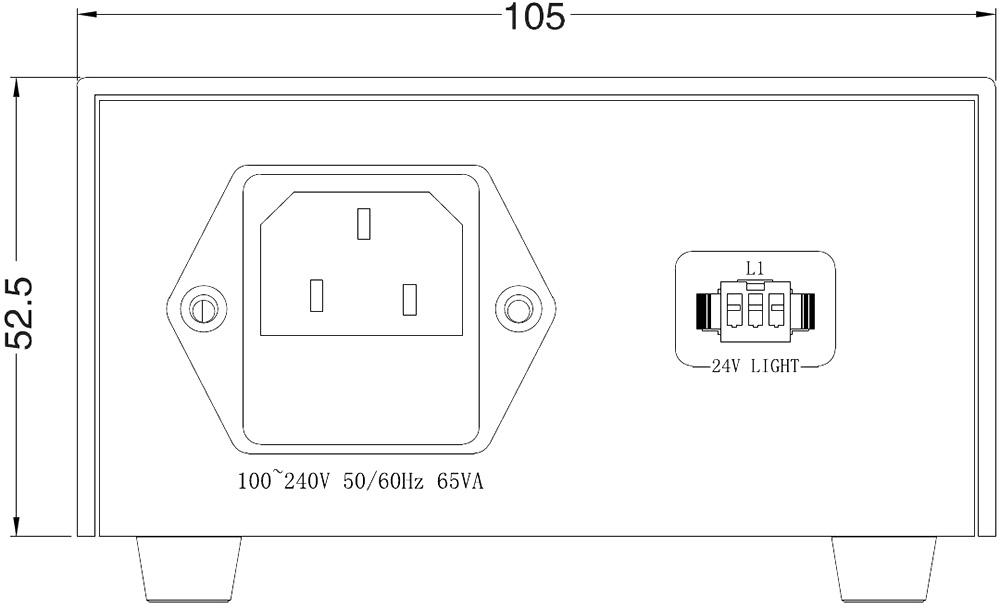

    PDD-1 Back view
