AC Constant-current Digital Controller (PDC)

Yuyao Lishuai Machine VISION Technology Co., Ltd

PDC series control units are constant-current system, for the high power LED light units.

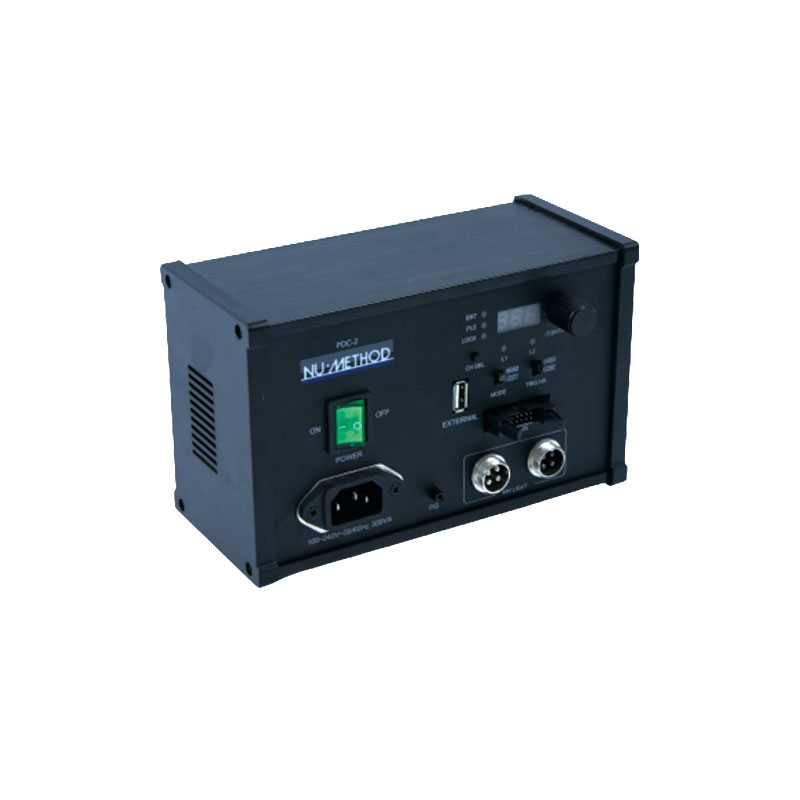

1. Product features

The PDC series automatic calibration control units are driven by constant current and used for high power LED light fixtures. A single channel of the control unit is able to load up to 100W of power. The digital display on the control unit makes it easy to check the settings. The PDC series control units have the functions of triggering, constant lighting, strobe, dual channel independent output and simultaneous control 2 light fixture. The unique GX16 aviation port enhances the stability and reliability of the signal transmissions between the control units and the light fixtures. PDC-2A is able to adjust the color temperature. The operation panel is lockable, and data can be stored after power off.

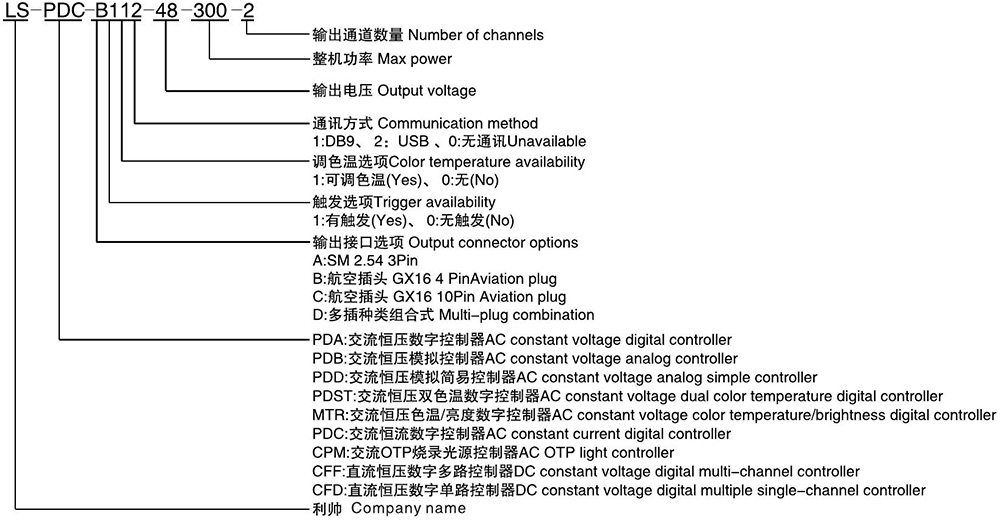

2. Naming rule

Complete model	Abbr. Model
LS-PDC-B112-48-300-DC-2A	PDC-2A
LS-PDC-B112-48-300-DC-2	PDC-2

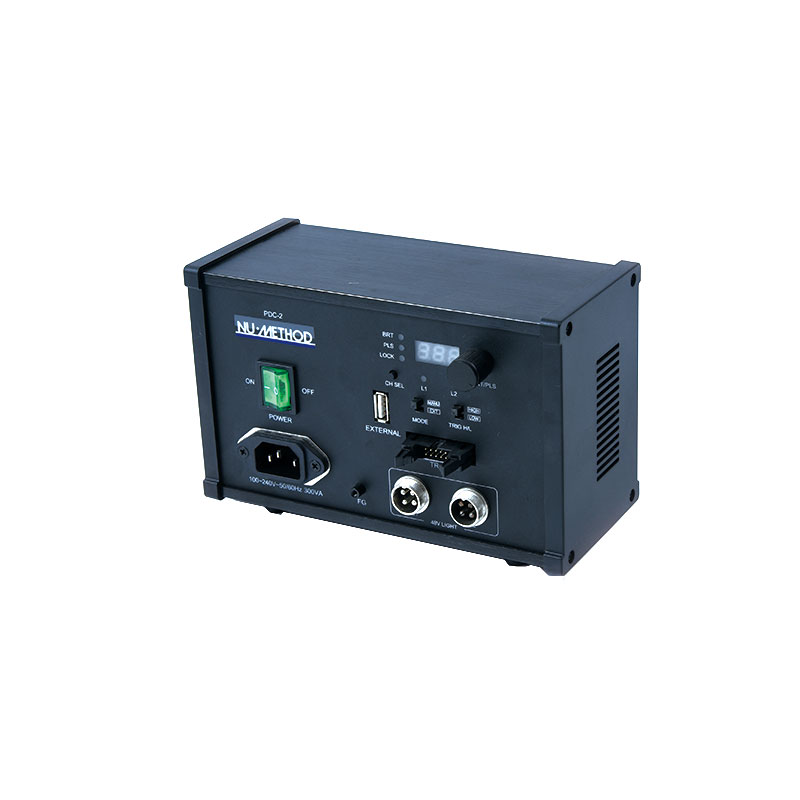

3. Product specifications

Model name	PDC-2A	PDC-2
Input voltage/Frequency	AC 100～240V 50/60HZ
Lighting method	Continuous lighting/Strobe lighting
Number of channels	2 channels
Drive method	Constant-current system
Rated capacity	300W max (30W max per channel)
Lighting mode setting	Manual/External
Lighting mode setting	0~999 Level
Color temperature adjustment availability	YES	NO

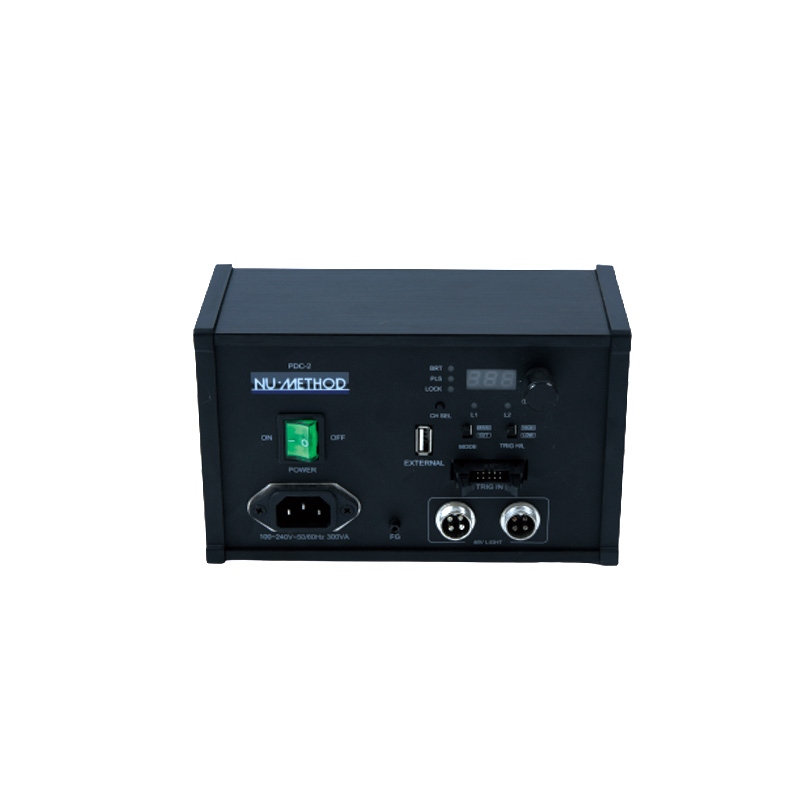

Output connector	(48V LIGHT ) GX16 4-pin
Trigger connector	(TRIG IN ) Parallel communication connector DC3-8/2.54
External control connector	(EXTERNAL) USB
PWM frequency	150 KHz
Applicable light units	Lighting with input DC48V, Constant-current system
Operating temperature and humidity	Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)
Cooling method	Forced air cooling

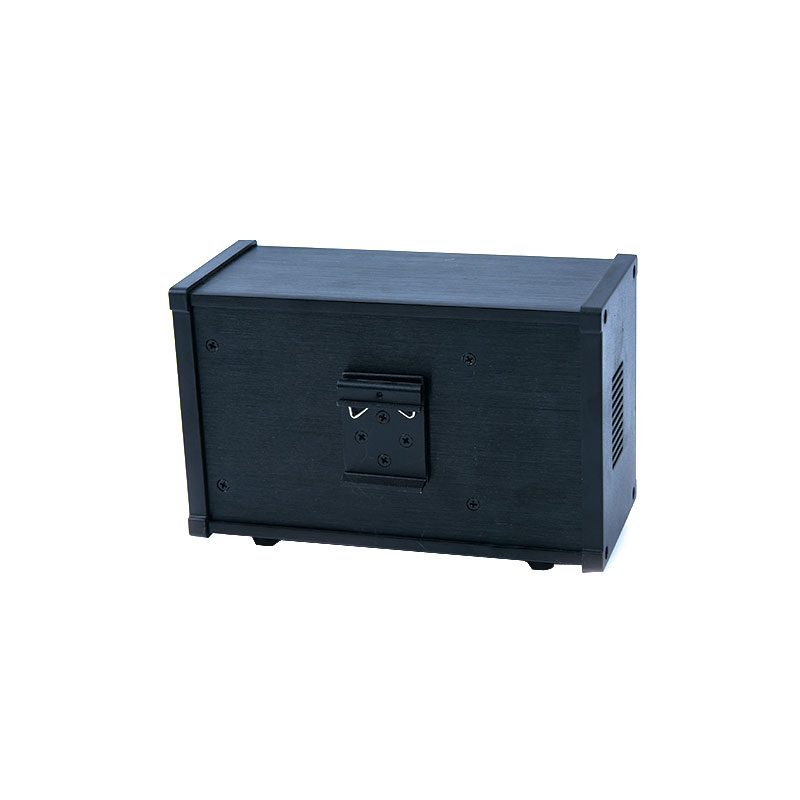

Installation method	Naturally placed/DIN rail installation
Material and surface processing	Aluminum alloy, surface electrophoresis
Weight	1.1 Kg
Included accessories	AC power cord 1.2m, Instruction manual

4. Service

Accessories	a.DC extension cord	c.External trigger cable
	b.AC power cord	d.Communication Cable
Customization	a.Communication Cable, DC extension cord, External trigger cable, length can be customized
	b.Output and input interface can be customized
	c.Power/Voltage can be customized
Warranty	One-year warranty and technical support

5. Dimensions (mm)

PDC-2A Front view

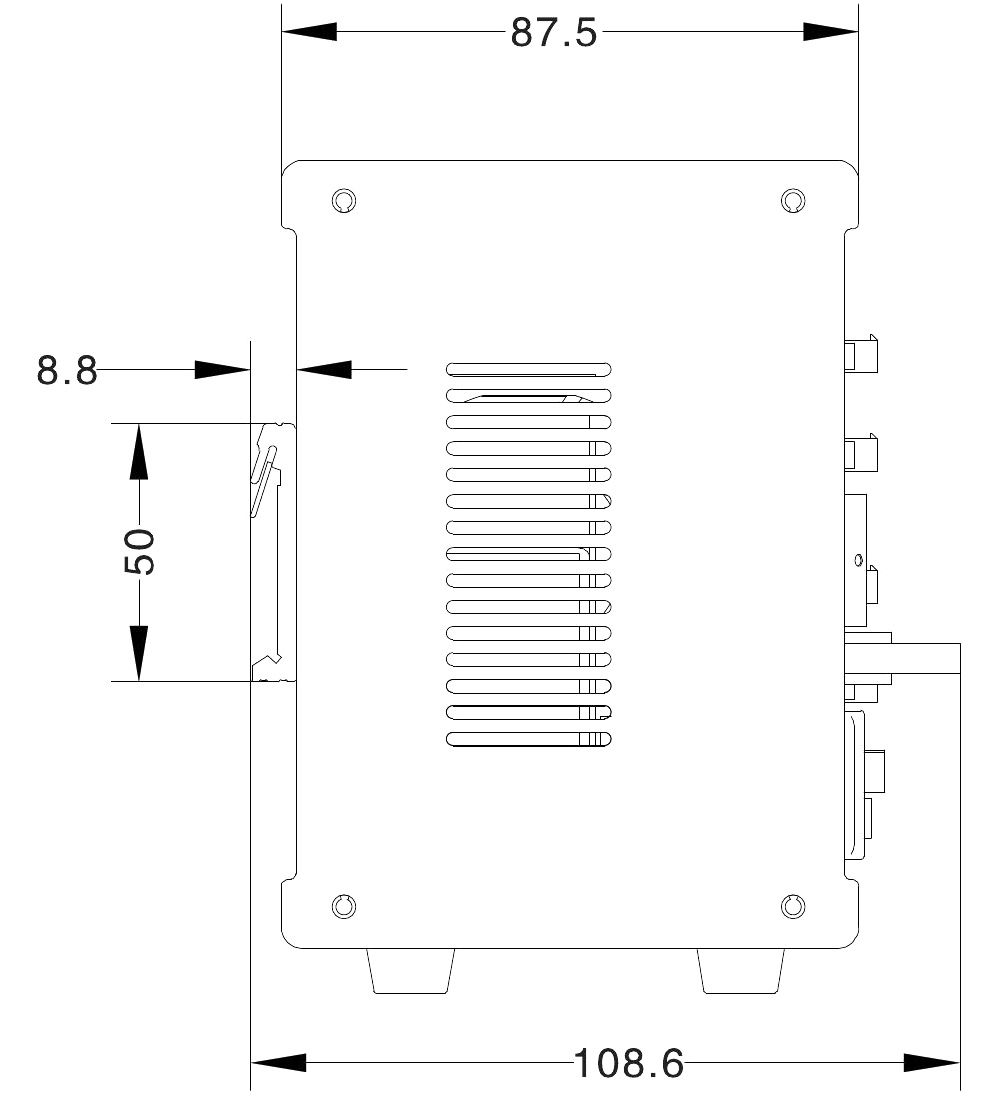

PDC-2A Side view

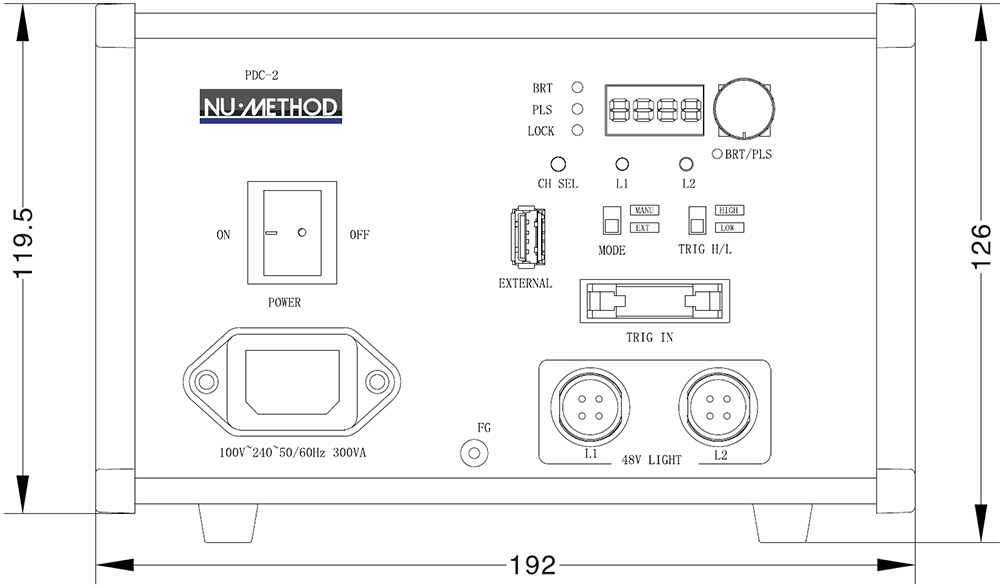

PDC-2 Front view

PDC-2 Side view
