AC Constant -voltage Analog Controller (PDB)

Yuyao Lishuai Machine VISION Technology Co., Ltd

PDB series analog control units are manually dimmable, with simple operation panel.

1. Product features

PDB series constant voltage digital control units adopt STM chip, with functions of triggering, constant light, strobe, multi-channel, etc. The main features are high-power output and manual stepless dimming, make the brightness of the light fixture change smoothly.

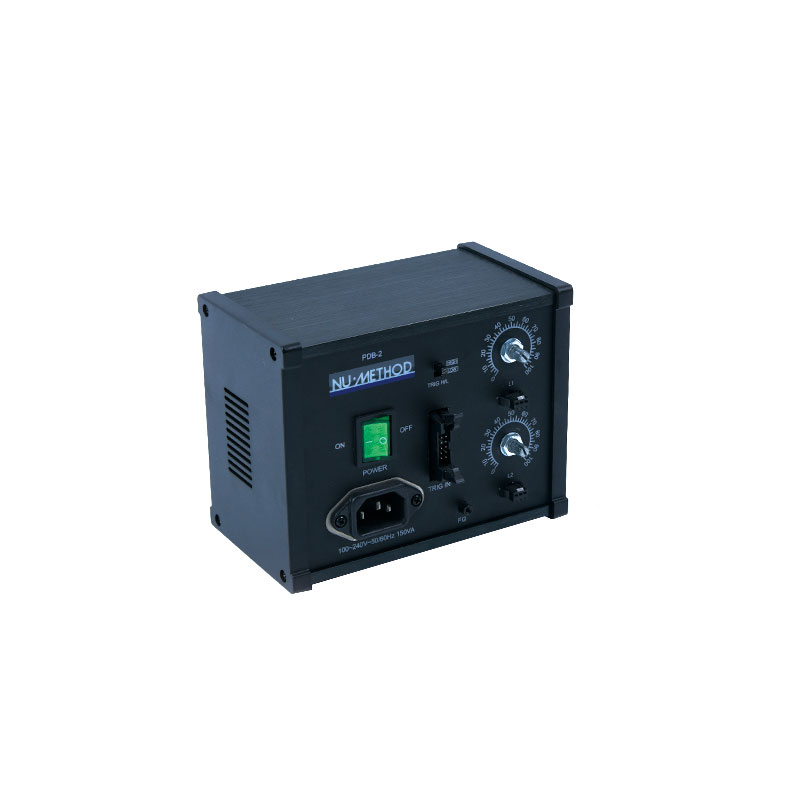

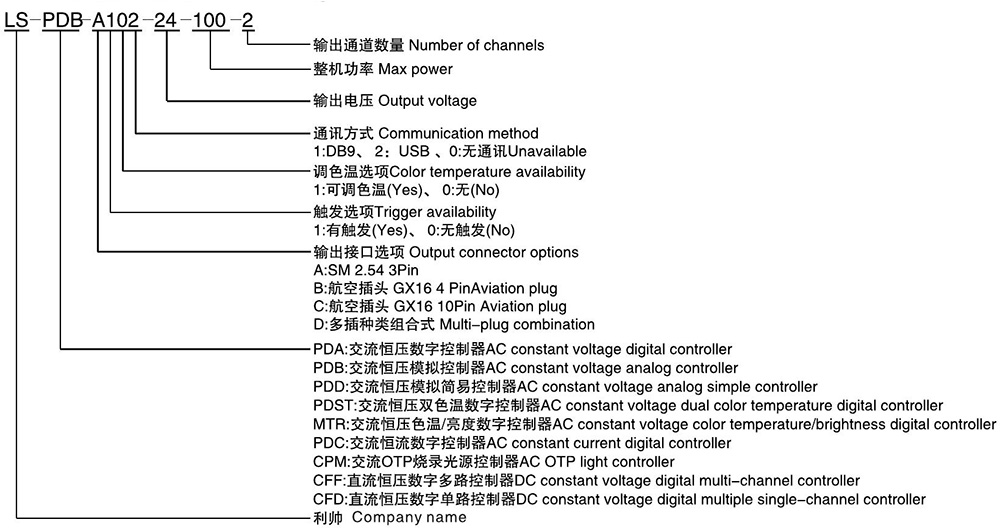

2. Naming rule

Complete model	Abbr. Model
LS-PDB-A102-24-100-2	PDB-2
LS-PDB-A102-24-150-4	PDB-4

3. Product specifications

Model name	PDB-2	PDB-4
Input voltage/Frequency	AC 100～240V 50/60HZ
Lighting method	Continuous lighting/Strobe lighting
Number of channels	2 channels	4 channels
Drive method	Constant-voltage system
Rated capacity	100W max (30W max per channel)	150W max (30W max per channel)
Lighting mode setting	Manual
Lighting mode setting	0-100%
Output connector	(24V LIGHT ) SM port3-pin
Trigger connector	(TRIG IN ) Parallel communication connector DC3-8/2.54
External control connector	-
PWM frequency	62.5 KHz
Applicable light units	Lighting with input DC24V, constant-voltage driving system
Operating temperature and humidity	Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)
Cooling method	Forced air cooling
Installation method	Naturally placed/DIN rail installation
Material and surface processing	Aluminum alloy, surface electrophoresis
Weight	0.8Kg	1.0Kg
Included accessories	AC power cord 1.2m, Instruction manual

4. Service

Accessories	a.DC extension cord	c.External trigger cable
	b.AC power cord
Customization	a.Communication Cable, DC extension cord, External trigger cable, length can be customized
	b.Output and input interface can be customized
	c.Power/Voltage can be customized
Warranty	One-year warranty and technical support

5. Dimensions (mm)

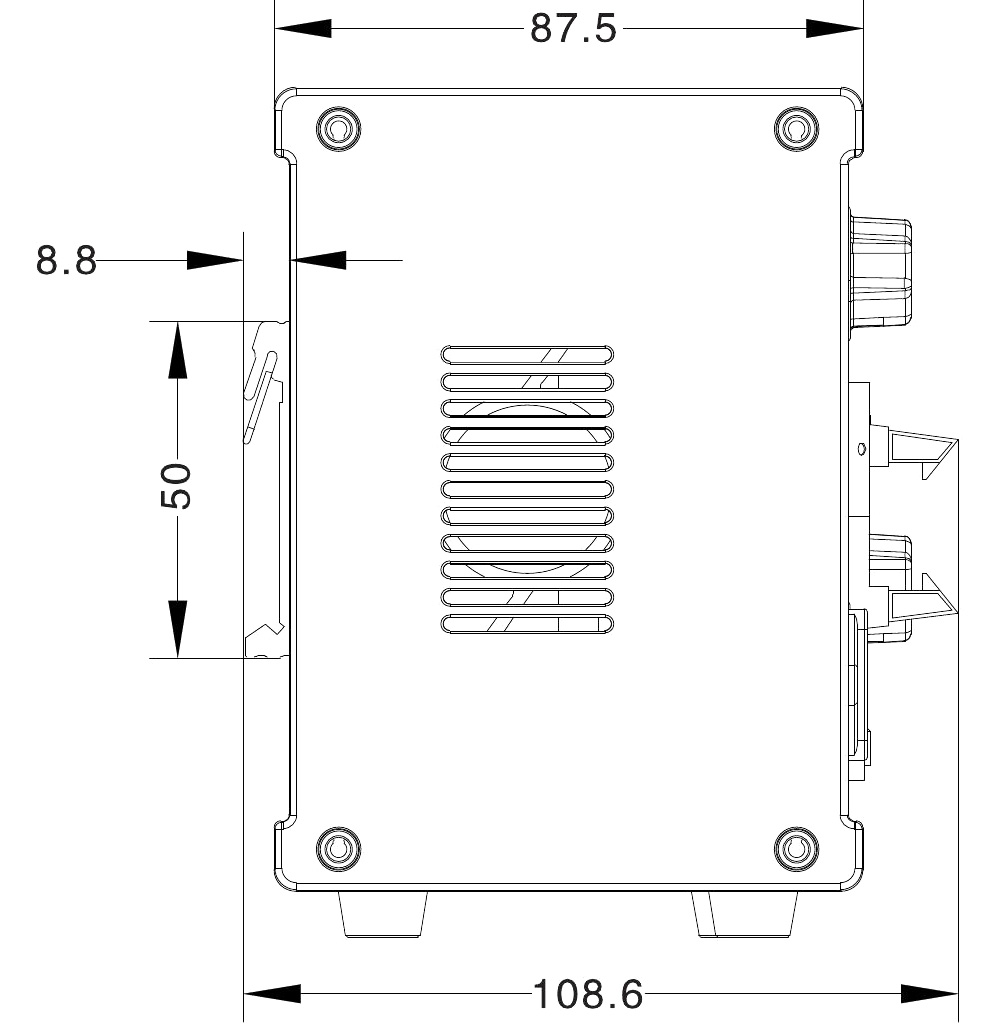

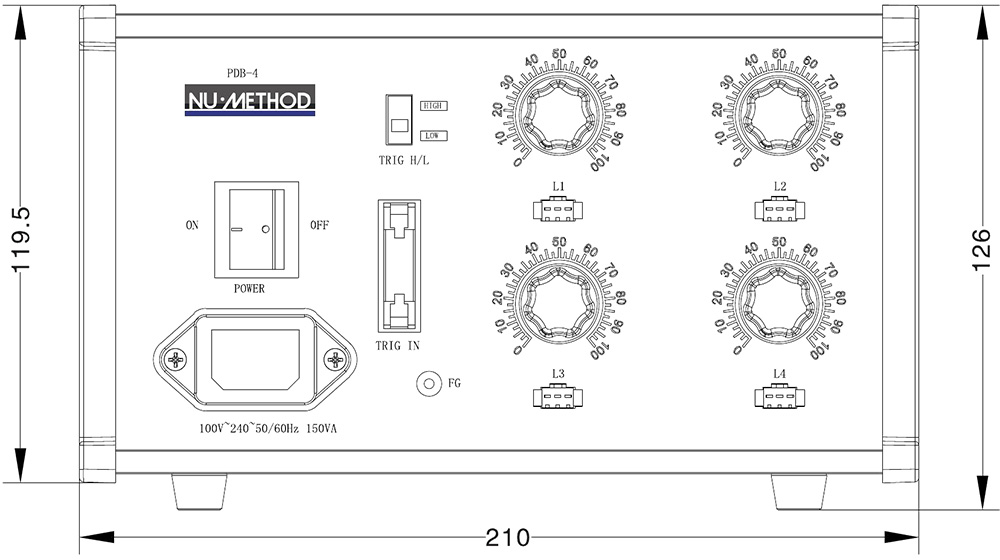

PDB-4 Front view

PDB-4 Side view

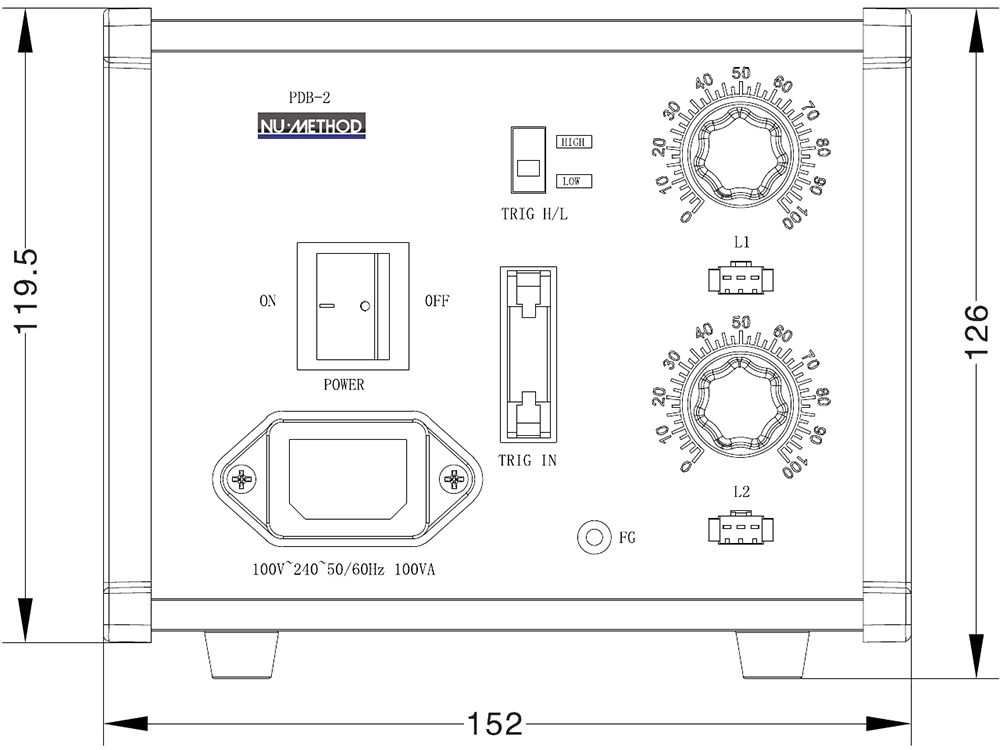

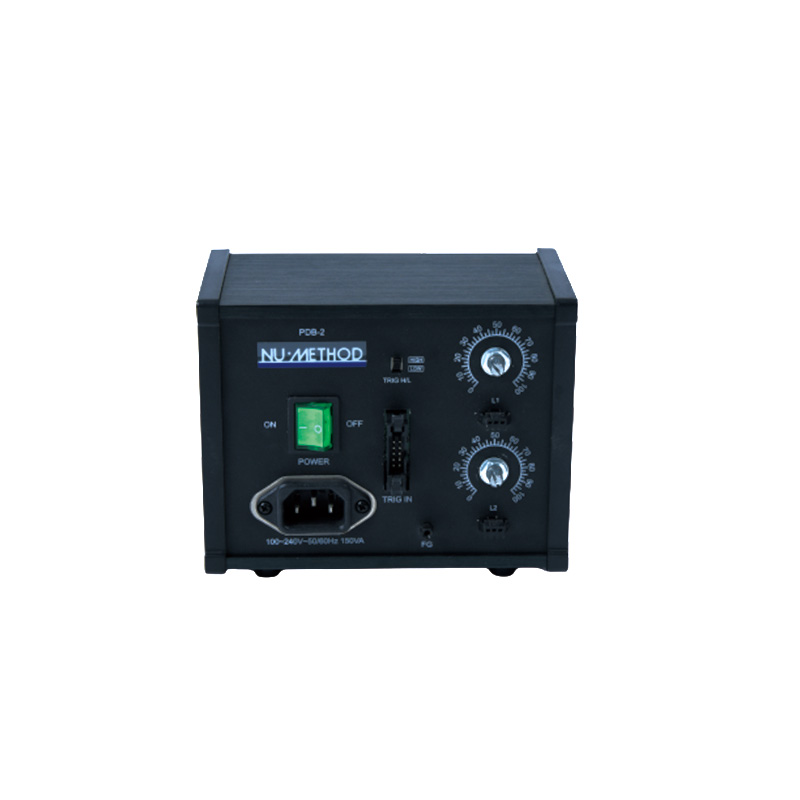

PDB-2 Front view

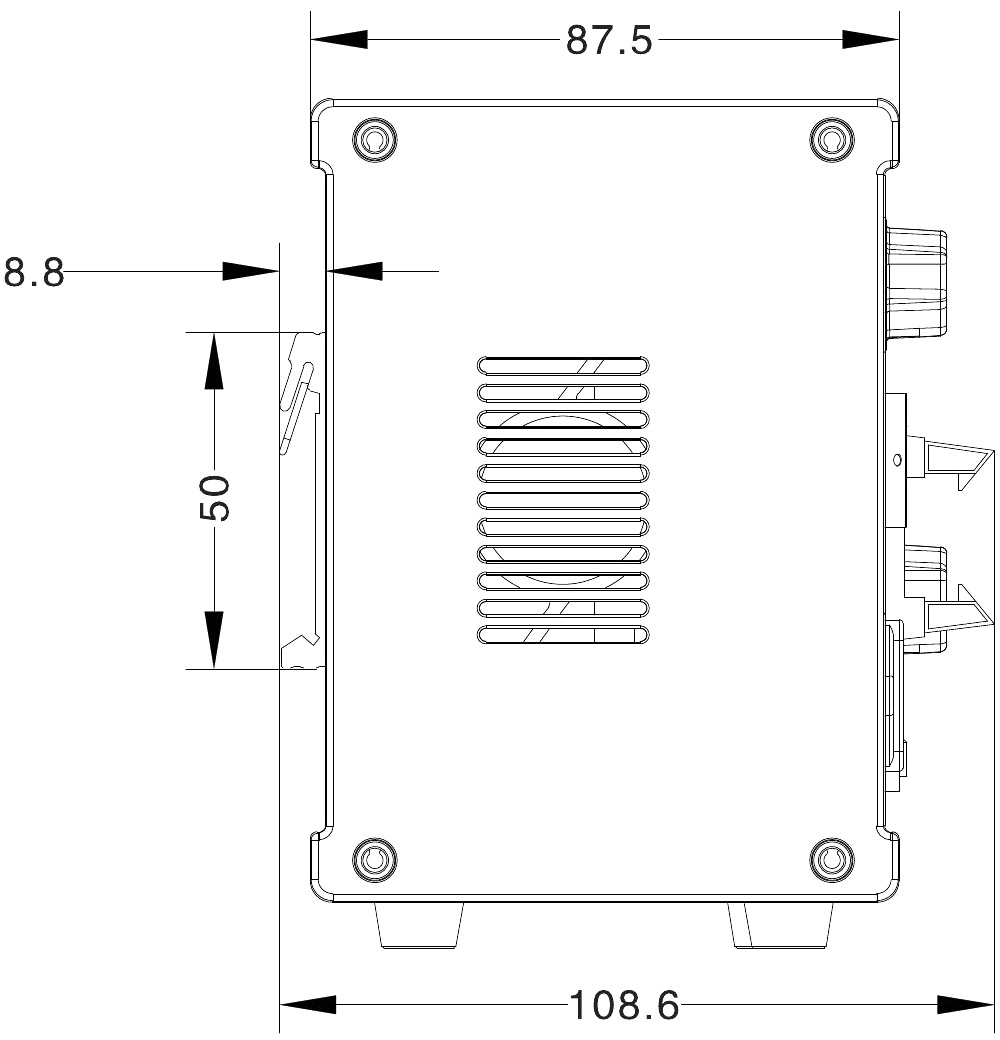

PDB-2 Side view
