AC Constant -voltage Digital Controller (PDA)

Yuyao Lishuai Machine VISION Technology Co., Ltd

PDA series control units are compatible with continuous, ON/OFF and strobe lighting, operable through external PC.

1. Product features

PDA series constant voltage digital control units adopt STM chip, with functions of triggering, constant light, strobe, multi-channel, storage, etc. The main functions of high-power output and four PWM frequency options help eliminate the water ripples and adjust the dimming to 999 level. The host is connected through various communication methods.

2. Naming rule

Complete model	Abbr. Model
LS-PDA-A102-24-100-2	PDA-2
LS-PDA-A102-24-150-4	PDA-4
LS-PDA-A101 -24-300-8	PDA-8

3. Product specifications

Model name	PDA-2	PDA-4	PDA-8
Input voltage/Frequency	AC 100～240V 50/60HZ
Lighting method	Continuous lighting/Strobe lighting
Number of channels	2 channels	4 channels	8 channels
Drive method	Constant-voltage system
Rated capacity	100W max (30W max per channel)	150W max (30W max per channel)	300W max (30W max per channel)
Lighting mode setting	Manual/External
Lighting mode setting	0～999Level
Output connector	(24V LIGHT ) SM port3-pin		SM port3-pin/EL port2-pin (HLV LIGHT ) SM port3-pin
Trigger connector	(TRIG IN ) Parallel communication connector DC3-8/2.54
External control connector	(EXTERNAL) USB		(EXTERNAL) DB9
PWM frequency	62.5 KHz		(62.5,125,250,500)KHz
Applicable light units	Lighting with input DC24V, constant-voltage driving system
Operating temperature and humidity	Temperature: 0 to 40°C，Humidity: 20% to 85% (with no condensation)
Cooling method	Forced air cooling
Installation method	Naturally placed/DIN rail installation
Material and surface processing	Aluminum alloy, surface electrophoresis
Weight	0.8Kg	1.0Kg	1.4Kg
Included accessories	AC power cord 1.2m, Instruction manual

4. Service

Accessories	a.DC extension cord	c.External trigger cable
	b.AC power cord	d.Communication Cable
Customization	a.Communication Cable, DC extension cord, External trigger cable, length can be customized
	b.Output and input interface can be customized
	c.Power/Voltage can be customized
Warranty	One-year warranty and technical support

5. Dimensions (mm)

PDA-8 Front view

PDA-8 Side view

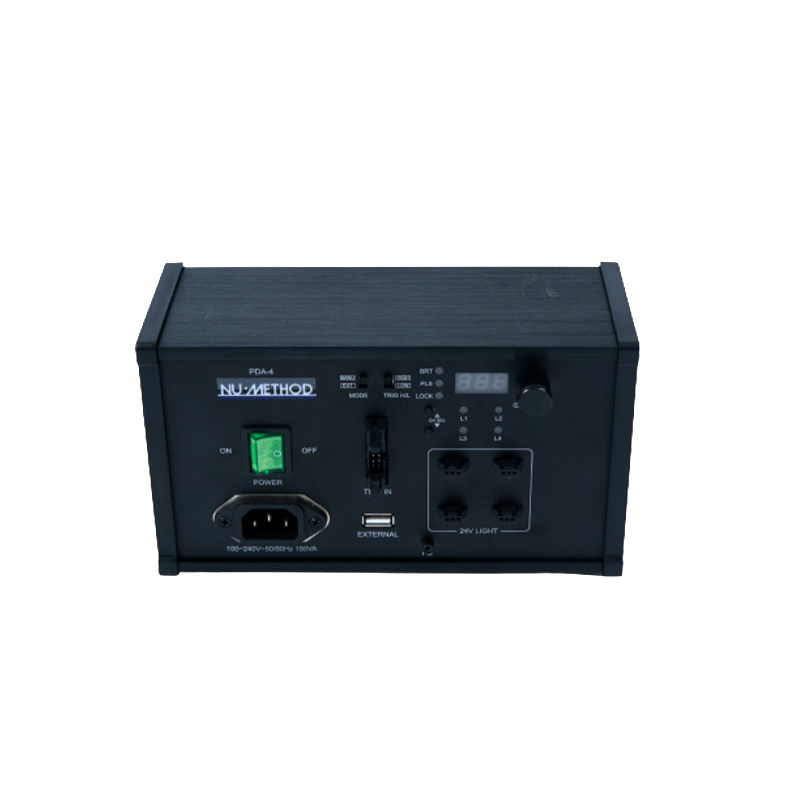

PDA-4 Front view

PDA-4 Side view

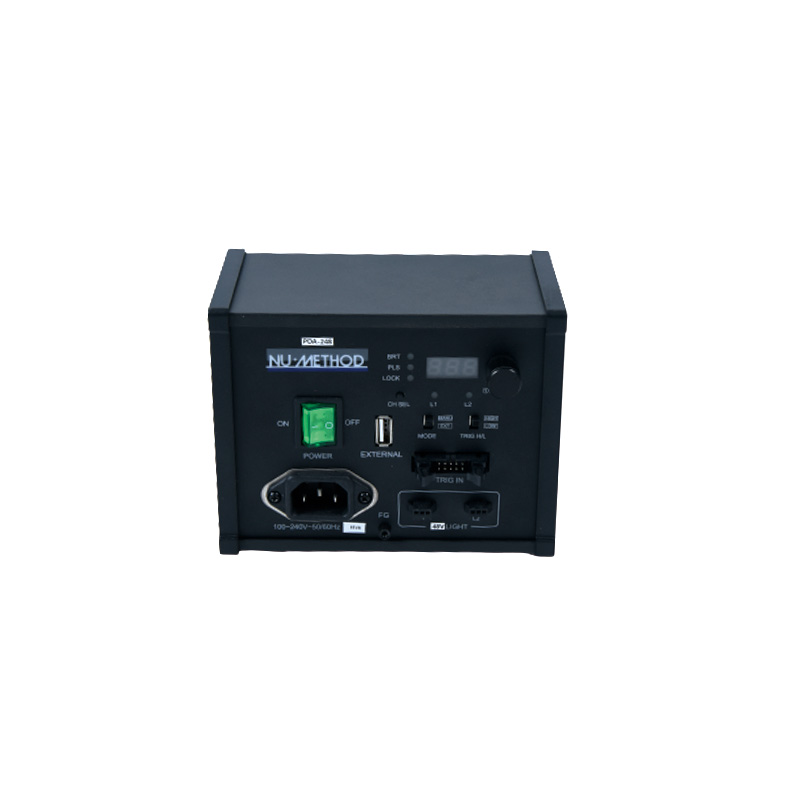

PDA-2 Front view

PDA-2 Side view
