  • LS-MTTL-295

    LS-MTTL-295

    LS-MTTL-295

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

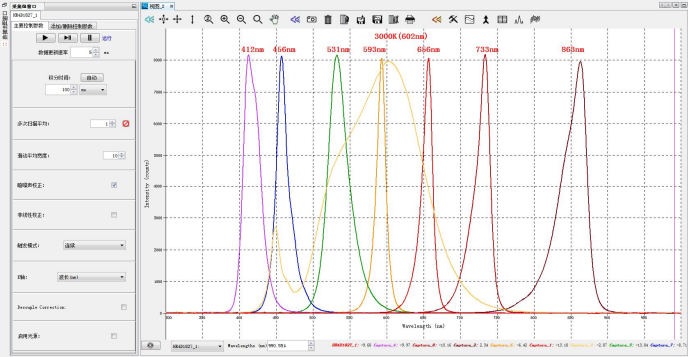

    1. Spectrogram

    2. Product specifications

    model : LS-MTTL-295 Remark
    Specification version: 2021032901 V1.0
    LED wavelength: 405 ± 10nm (ultraviolet) 457 ± 10nm (blue)
    527 ± 10nm (green) 600 ± 10nm (orange)
    660 ± 10nm (red) 730 ± 10nm (far infrared)
    860 ± 10nm (infrared) 600 ± 10nm (white)
    LED intensity: 100lux ± 10%
    Test Equipment KONICA CL-200A
    Ocecn HR4000CG UV-NIR
    Input voltage: DC 24V / constant voltage (*8)
    Evenness: -
    Line length: 300mm
    Output Interface SM 3P interface
    shell material: Aluminum alloy
    c way: Natural heat dissipation
    Light source life ≥2 years
    Standards compliant: CE.ROHS.
    Ambient temperature and humidity: 0~40℃ 20-85%
    Storage temperature and humidity: —20~60℃ 20-85%
    size:
