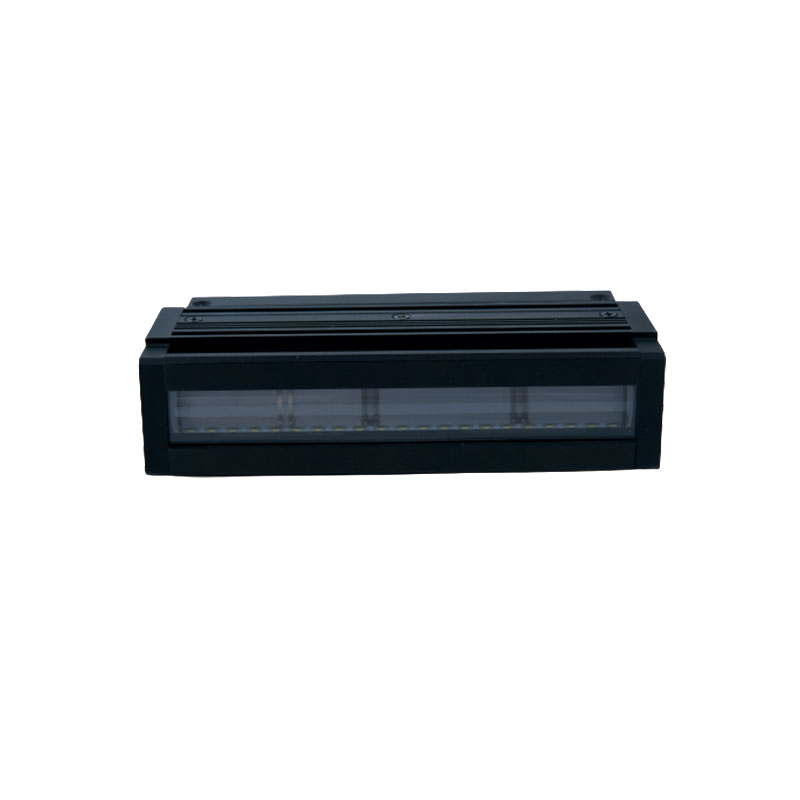

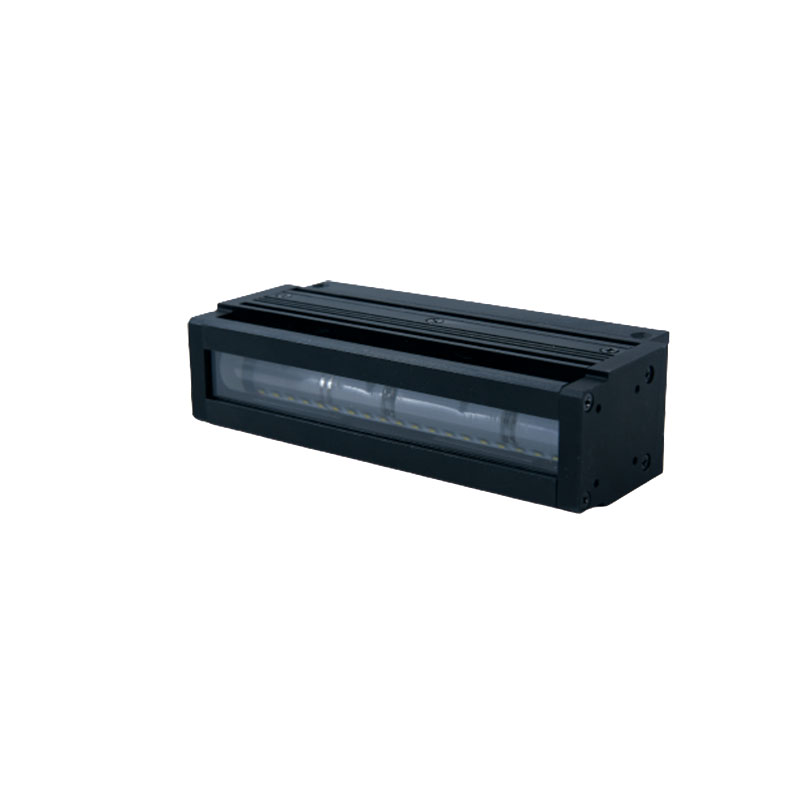

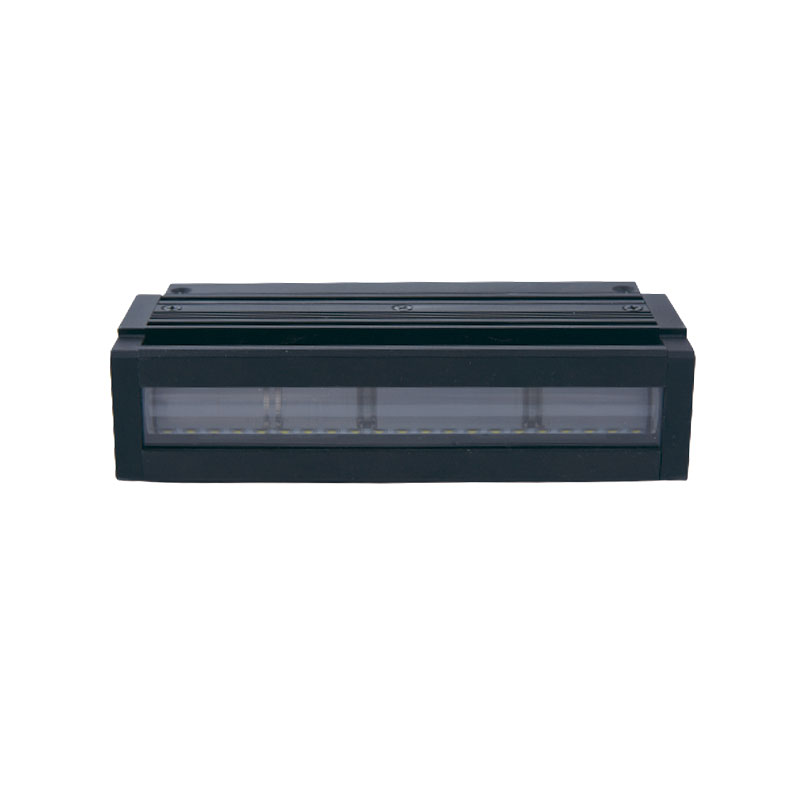

Line Lights (60-LN-300)

Yuyao Lishuai Machine VISION Technology Co., Ltd

High uniformity, irradiate linear light.

1. Product features

The LN series of light sources are arranged with high-density LEDs and are integrally formed with aluminum alloy to provide stable and bright light. The special cylindrical mirror gathers the light to illuminate the ray-shaped light, which is suitable for high-speed and flowing water detection occasions.

2. Imaging illustration

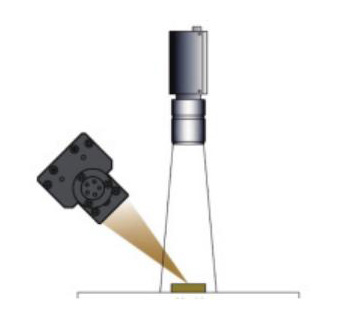

The CCD camera is placed above the object to be inspected, and the light source is placed on the side to capture the characteristics of the object to be inspected.

* This picture is only for illustration, and may not be exactly the same as the actual product

Linear light source cross section

Lighting structure effect diagram

3. Model code description

4. Product selection table

model	LED color	Voltage	power		weight	interface
model	LED color	Voltage	●	● ● ●	weight	interface
LS-LN-150	● ● ● ●	24V constant voltage	13W	20W	0.6kg	SM 2.54 3Pin
LS-LN-300	● ● ● ●		25W	40W	1.1kg
LS-LN-450	● ● ● ●		40W	60W	1.7kg
LS-LN-600	● ● ● ●		53W	80W	2.0kg
LS-LN-900	● ● ● ●		67W	100W	3.1kg

The length is increased by multiples of 150mm

***Subject to the actual product***

5. Application field

1. Lithium battery surface defect detection

2. PCB board circuit inspection

3. Fabric embryo detection

4. LCD screen appearance inspection

6. Application case

Fabric inspection

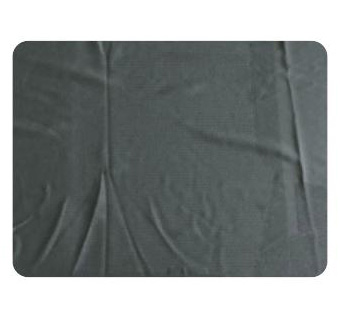

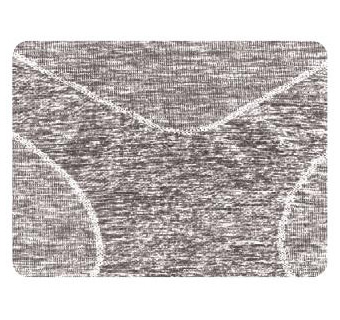

Physical map	Lighting method	Effect picture

7. Product Service

Light source color range	● 620nm-630nm ● 460nm-475nm ● 520nm-530nm
Light source color range	● 3200K-7000K
Use environment	a. Temperature 0-40℃
Use environment	b. Humidity 20-85%RH (no frosting state)
Service life	5% attenuation in 30,000 hours
Accessories selection	a. Extension cord
Accessories selection	b. Controller
Customized service	a. Light source size customization
	b. Color temperature, brightness, wavelength customization
	c. Customization of output interface, input voltage and drive mode
	d. Installation method customization
Warranty	One year product warranty and technical support

8. Spectrum, uniformity map

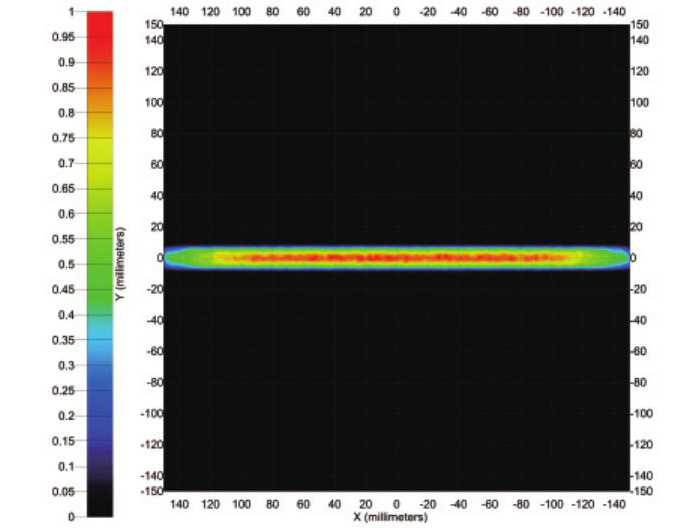

Spectrum	Uniformity map

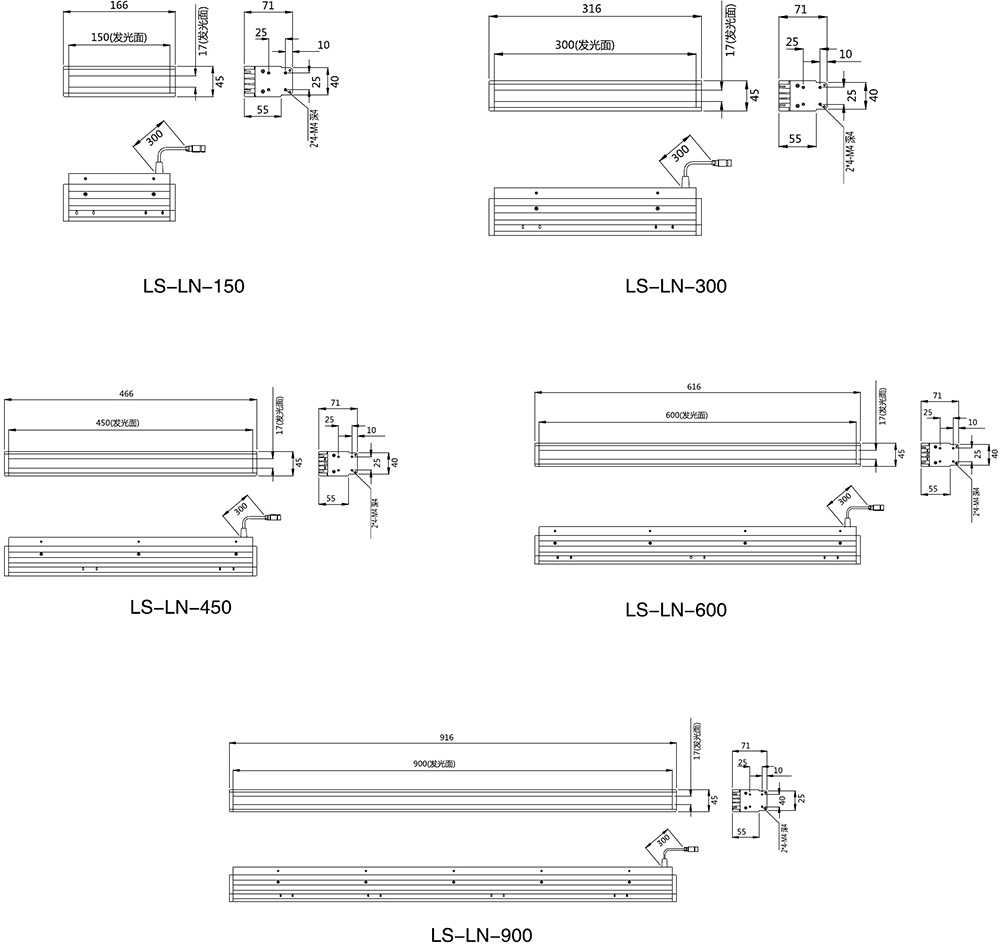

9. Dimensions (mm)
