    Yuyao Lishuai Machine VISION Technology Co., Ltd
  • Top
  • Dome Lights (25-HBD)

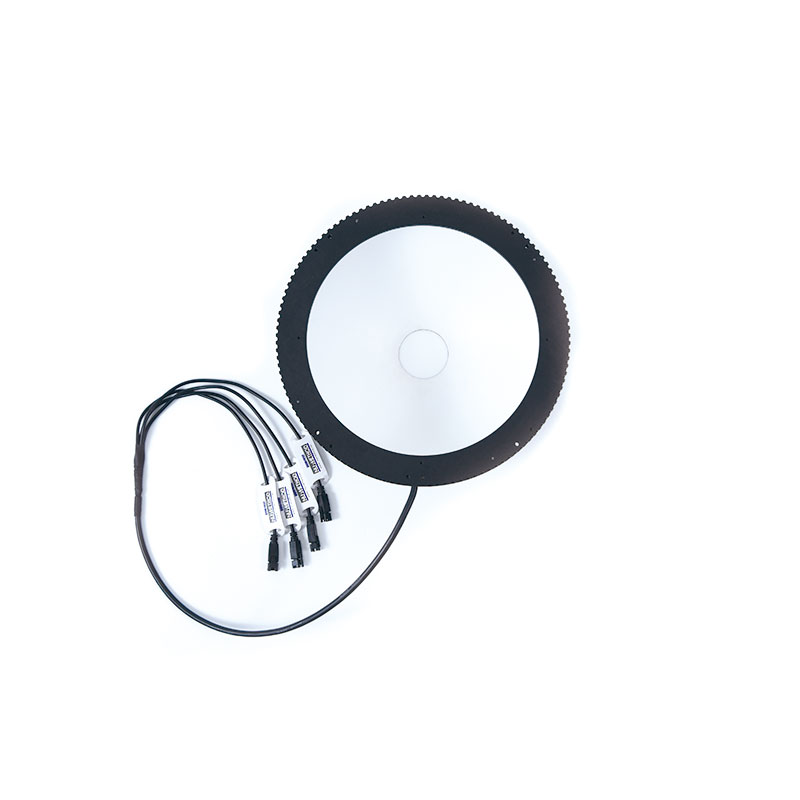

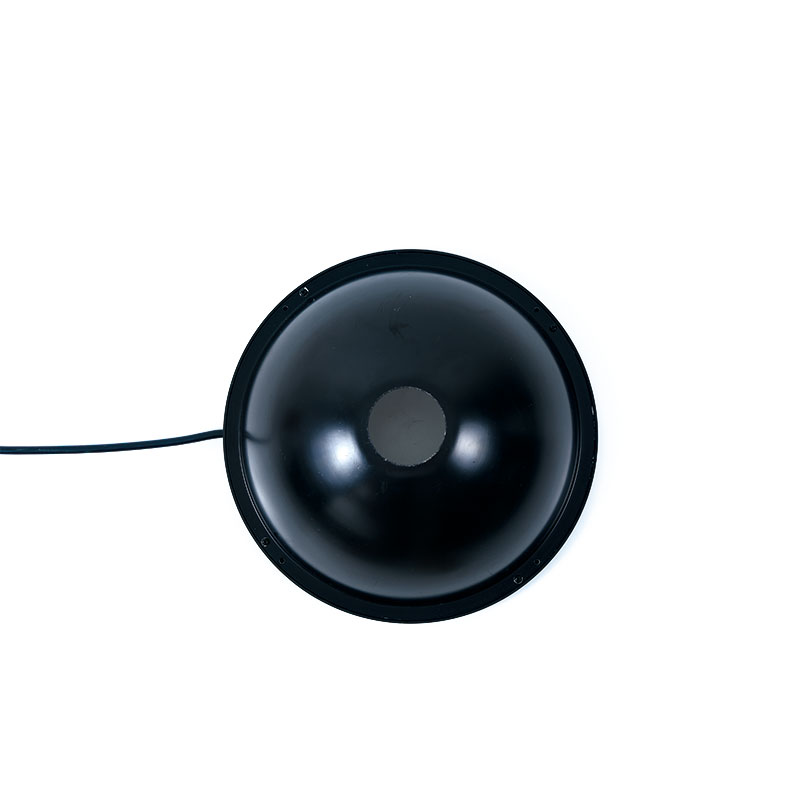

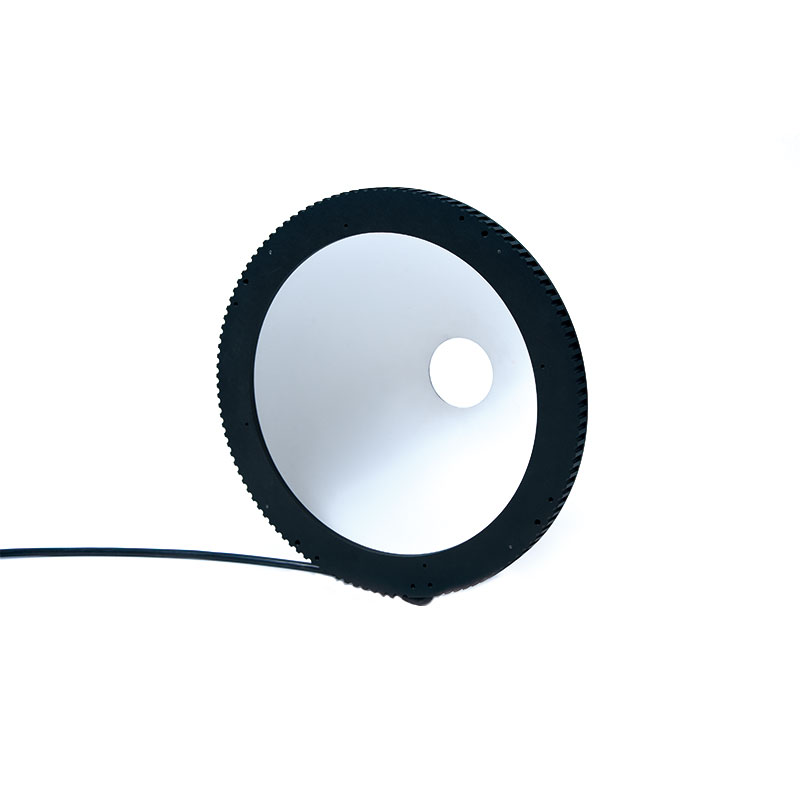

    Dome Lights (25-HBD)

    Dome Lights (25-HBD)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    The unique dome design of the HBD series enables it to radiate a uniform spread light through the diffusion panel.



    1.Product features

    The HBD series dome light is a diffuse reflection shadowless light source. After the light emitted by the LED is diffusely reflected by the inner spherical surface, it emits a smooth and uniform light that can illuminate the measured object in all directions.



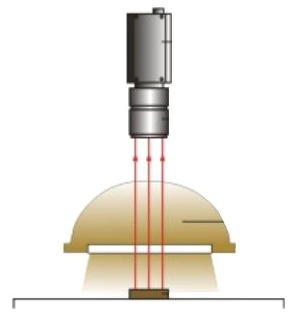

    2.Configuration example

    The CCD captures the characteristics of the measured object through the hole in the dome.

    * This picture is shown as a sketch only.

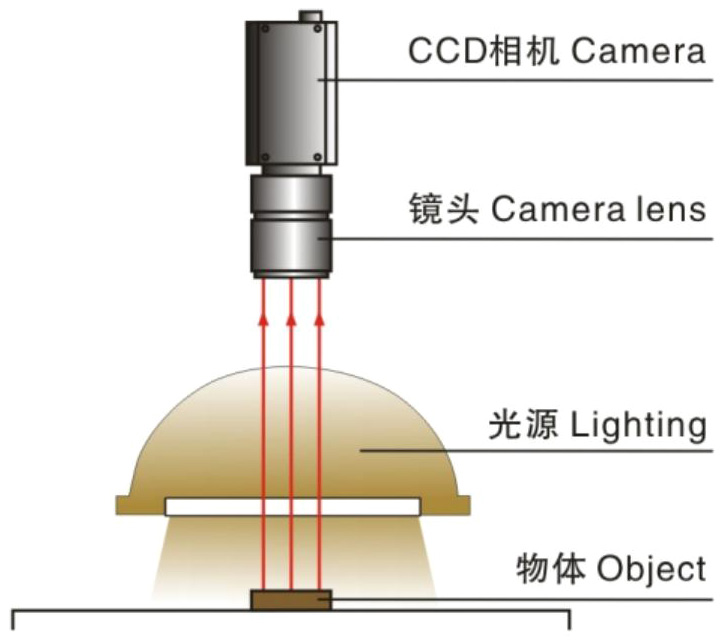

    Sectional view of a dome light

    Configuration example

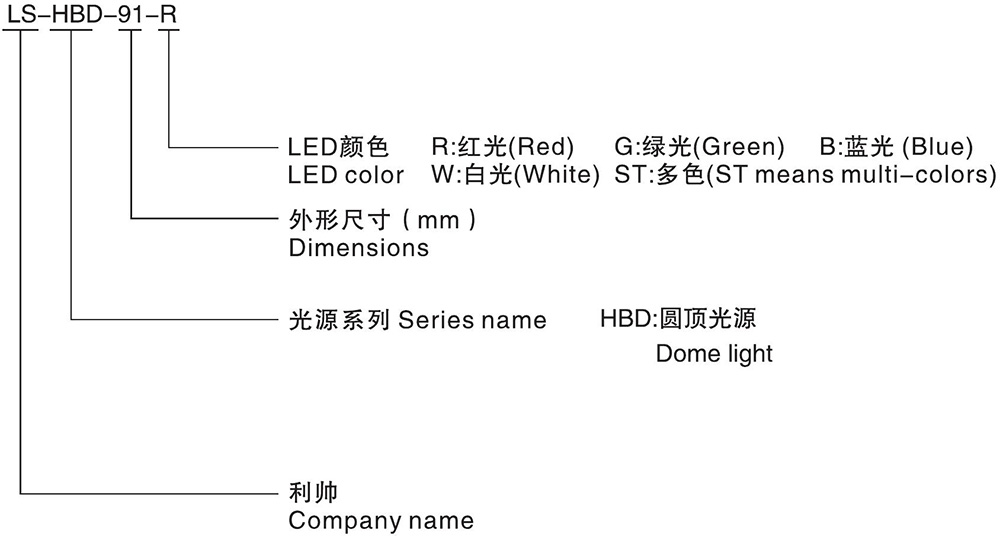

    3.Model name explaination

    4.Product list



    Model name

    LED color

    Voltage

    Power

    Weight

    Output

    connector

    LS-HBD-91



    24V constant-voltage



    3.5W

    5.5W

    0.1kg





    SM 2.54 3Pin





    LS-HBD-116

    5W

    8W

    0.2kg

    LS-HBD-166

    6.5W

    14.5W

    0.3kg

    LS-HBD-216

    9.5W

    15W

    0.5kg

    LS-HBD-266

    12W

    18.5W

    0.6kg

    LS-HBD-424

    20.5W

    32W

    1.4kg

    *** Subject to actual product***



    5.Applications



    1.Inspecting prints on paper box

    2.Inspecting electronic components

    3.Inspecting the uneven surface of workpiece

    4.Inspecting the reflective surface of the object like metal and glass



    6.Application example

    Bright metal detection

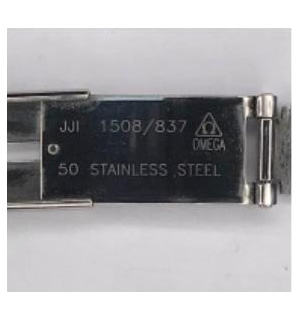

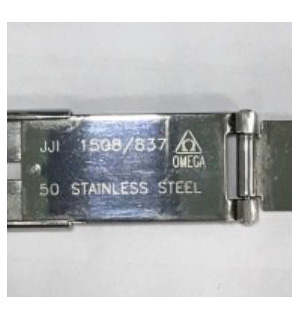

    Measured object Configuration Effect image



    7.Service

    Color temperature/ Peak wavelength

     620nm-630nm 460nm-475nm 520nm-530nm

    3200K-7000K

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing diameter, number and position of camera hole

    e.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

    8.Spectrum, uniformity

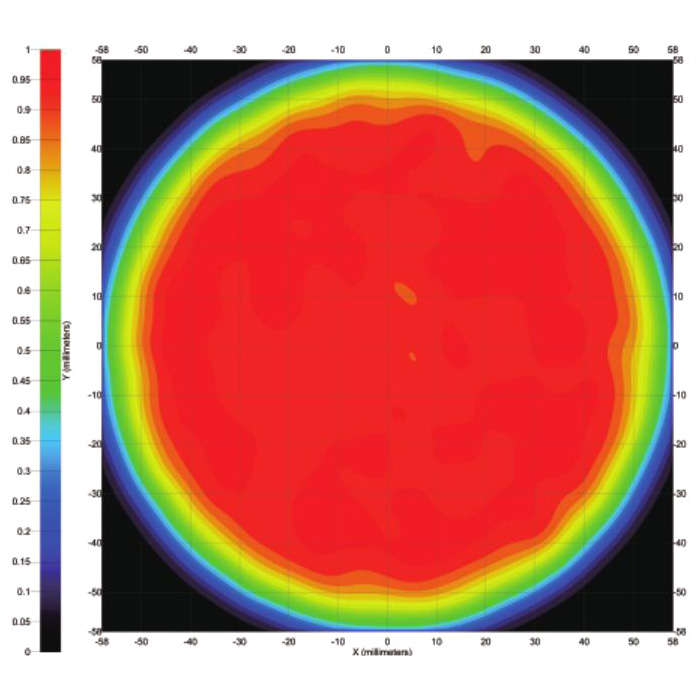

    Spectrum Uniformity(LS-HBD-116)

    9. Dimensions(mm)





    Model name

    Unit (mm)

    A

    B

    C

    D

    E

    F

    LS-HBD-91

    91

    20

    SR37.5

    45.3

    41

    82

    LS-HBD-116

    116

    25

    SR49.7

    54.4

    66

    106

    LS-HBD-166

    166

    35

    SR75

    74.1

    116

    155.5

    LS-HBD-216

    216

    40

    SR99

    100

    166

    204

    LS-HBD-266

    266

    50

    SR122.5

    106

    210

    254

    LS-HBD-424

    424

    80

    SR196.5

    203

    360

    410



    ***The size of the light source can be customized***
