  • AC OTP Light Controller (CPM)

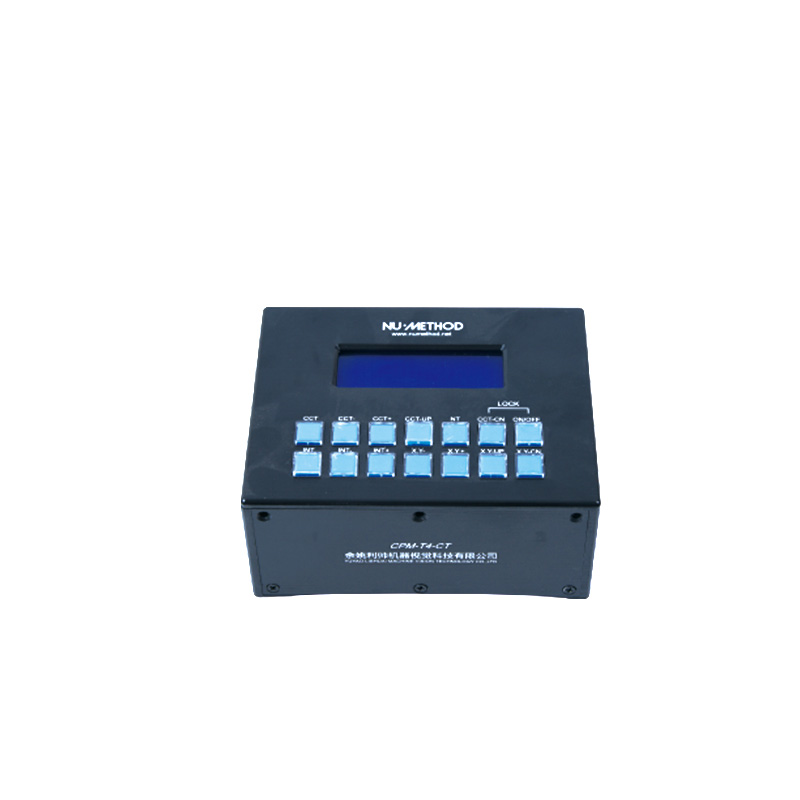

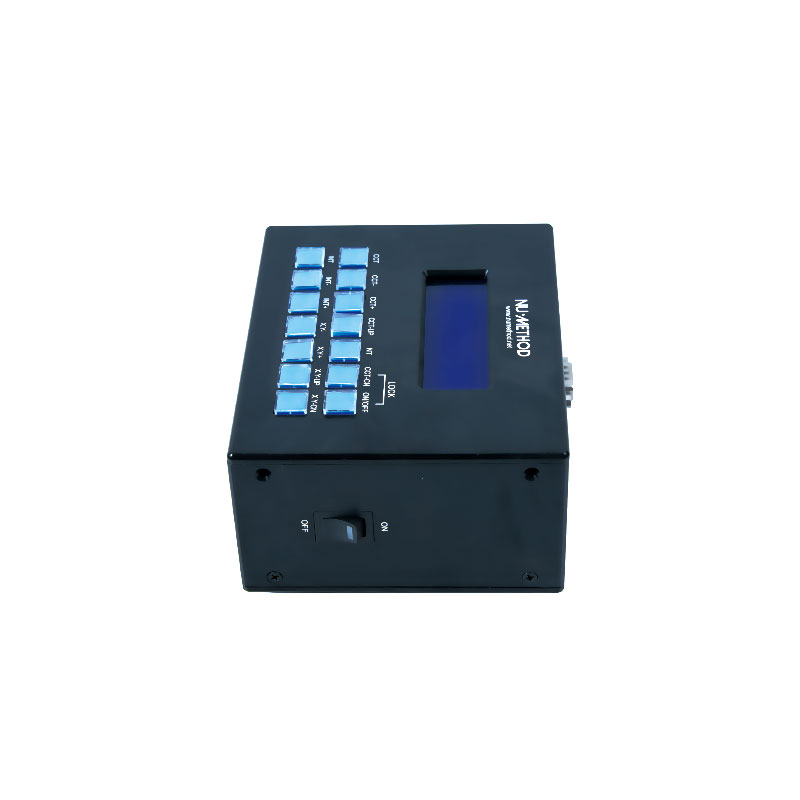

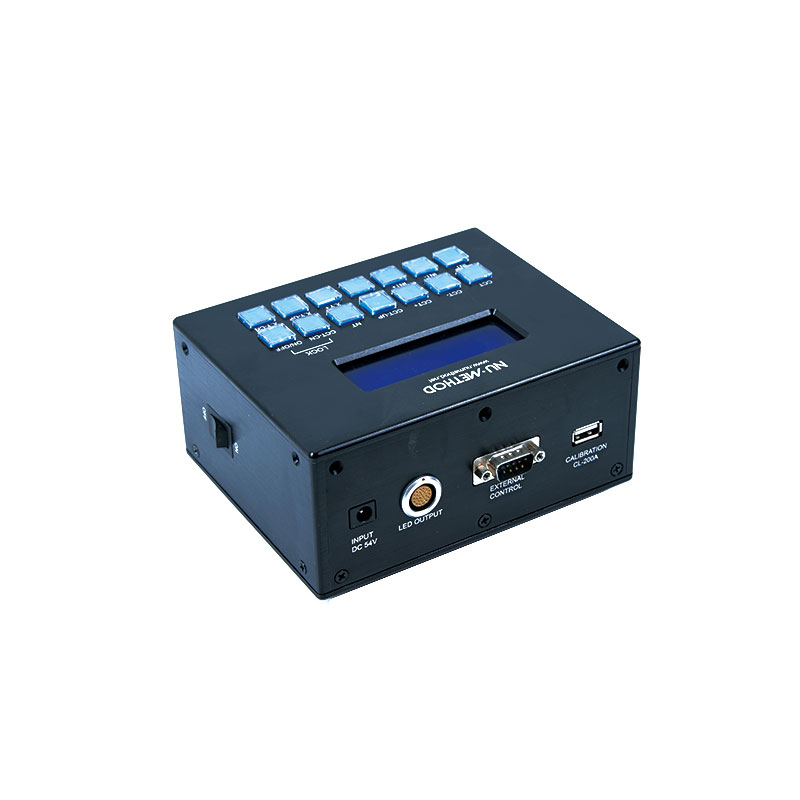

    AC OTP Light Controller (CPM)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    OTP burn in light source controller.

    1. Product features

    CPM series control unit is constant-current system. It has two calibration modes, automatic calibration mode for color temperature and brightness settings and automatic calibration mode for XY coordinate settings. The adjustment accuracy of color temperature and intensity is up to 1 lux. Working with it,the CPM series light source can output a stable, standard spectrum. It comes with communication function, individual output of multi-channels, operation panel locking function, settings saving function and CL-200A real-time correction function.

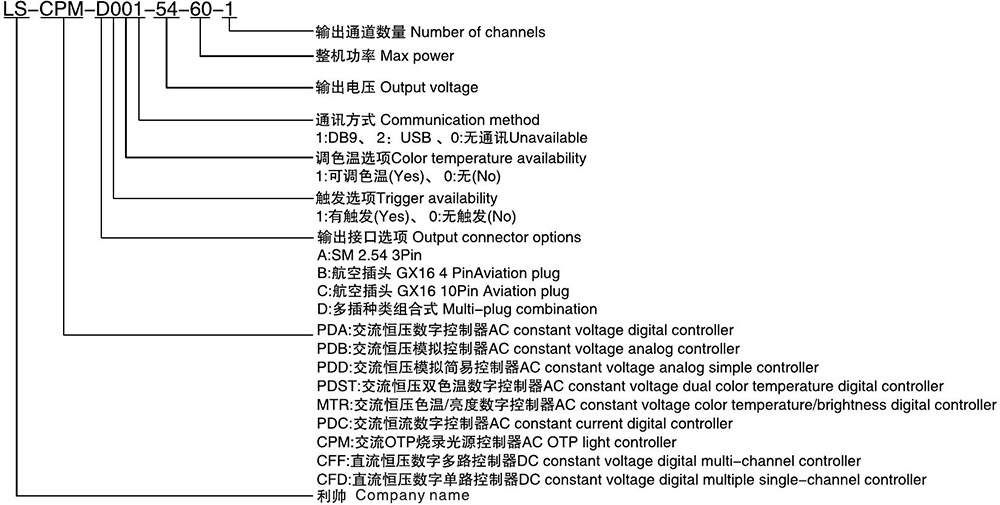

    2. Naming rule




    Complete model

    Abbr. Model

    LS-CPM-D001 -54-60-1

    CPM-T4-CT

    3. Product specifications

    Model name

    CPM-T4-CT

    Input voltage/Frequency

    AC 100~240V 50/60HZ

    Lighting method

    Continuous lighting

    Number of channels

    1 channels

    Drive method

    Constant-current system

    Rated capacity

    20W

    Lighting mode setting

    Manual/External

    Lighting mode setting

    0~3000级 Level

    Output connector

    (LED OUTPUY ) EGG-2B-326-NA0.5

    External control connector

    CL-200A calibration communication

    (CALIBRATION CL-200A ) USB

    PC communication

    (EXTERNAL CONTROL ) RS-232

    PWM Frequency

    28KHz

    Applicable light units

    Lighting with input DC 24V, Constant-current system

    Operating temperature and humidity

    Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)

    Cooling method

    Natural cooling

    Installation method

    Naturally placed

    Material and surface processing

    Aluminum alloy, surface electrophoresis

    Weight

    1.1 Kg

    Included accessories

    AC power cord 1.2m,Instruction manual

    4. Service

    Accessories

    a.DC extension cord

    c.External trigger cable

    b.AC power cord

    d.Communication Cable

    Customization

    a.Communication Cable, DC extension cord, External trigger cable, length can be customized

    b.Output and input interface can be customized

    c.Power/Voltage can be customized

    Warranty

    One-year warranty and technical support

    5. Dimensions(mm)

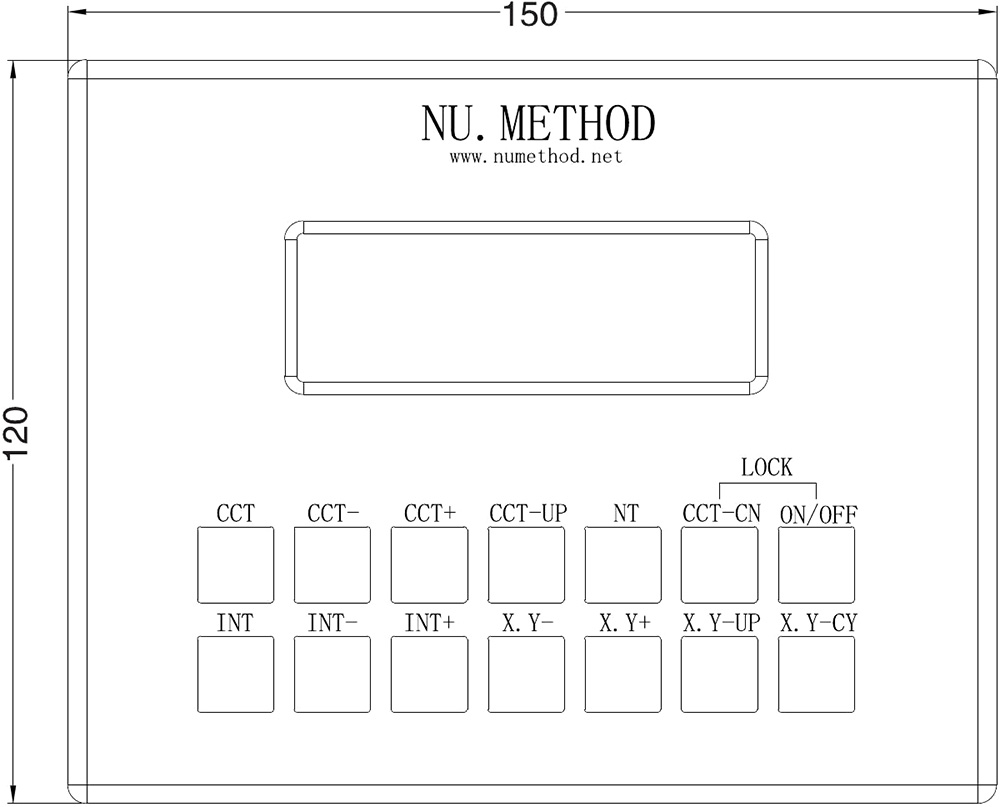

    CPM-T4-CT Front view

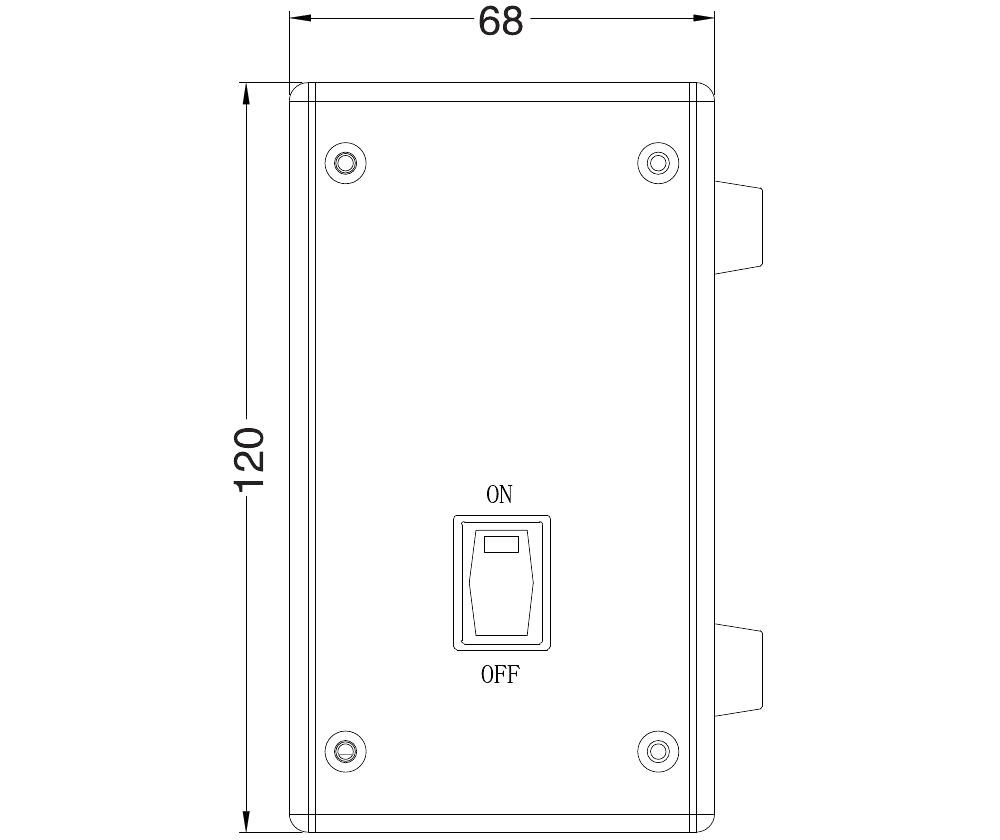

    CPM-T4-CT Right side view

    CPM-T4-CT Top view
