    Collimated Coaxial Lights (COP)

    Collimated Coaxial Lights (COP)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

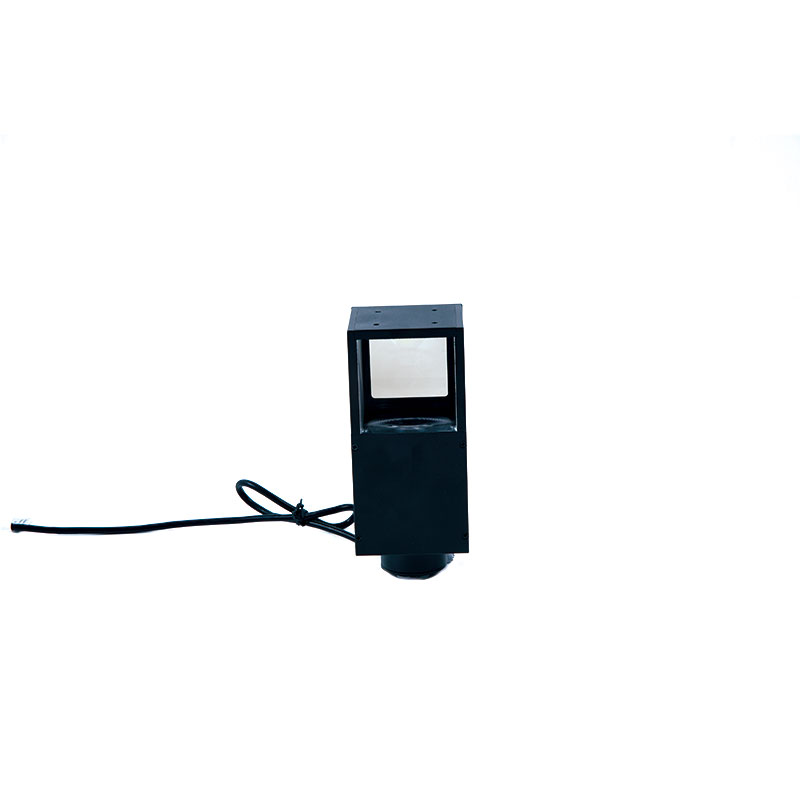

    High collimation coaxial light.



    1.Product features



    The special light-emitting structure of the COP series light combined with the special lens module can make the light and the camera's illumination angle on the coaxial line, so that the brightness of the surface of the illuminated object is consistent. Heat is dissipated through the sections.



    2.Configuration example

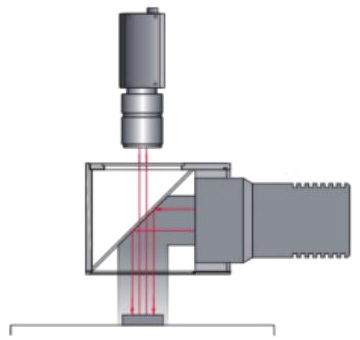

    The CCD camera is placed on the reflected lighting outlet of the coaxial light, so that the reflected light is coaxial with the CCD camera to capture the characteristics of the object.



    * This picture is shown as a sketch only.

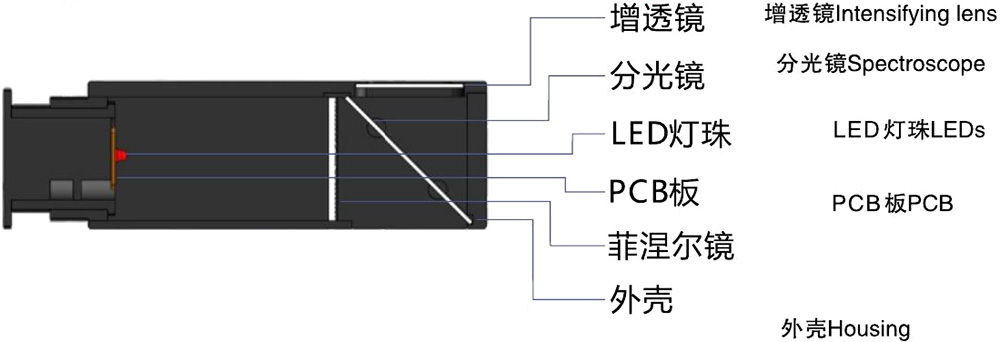

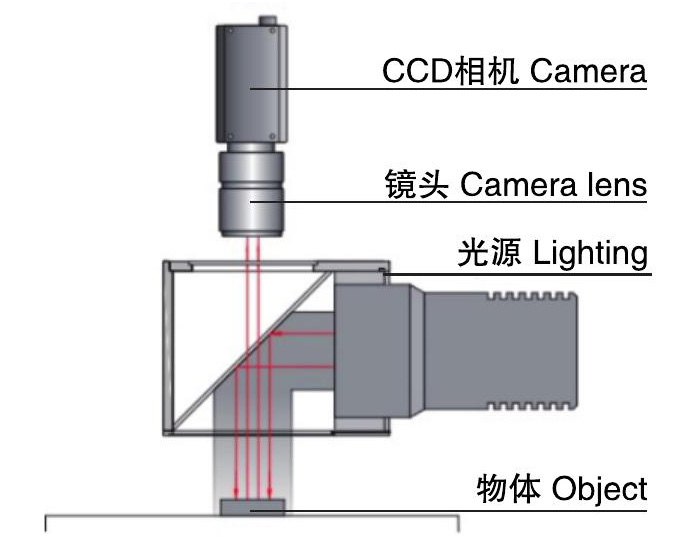

    Sectional view of a coaxial light





    Configuration example

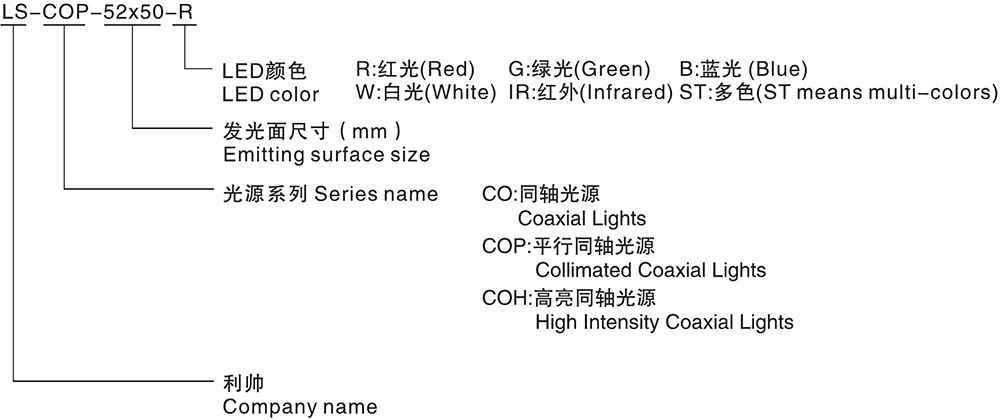

    3.Model name explaination

    4.Product list



    Model name

    LED color

    Voltage

    Power

    Weight

    Output

    connGctor

    IR

    LS-COP-19×19

    IR

    24V constant-voltage

    1W

    1.5W

    0.1kg

    SM 2.54 3Pin

    LS-COP-32×30

    IR

    2.5W

    3.5W

    0.1kg

    LS-COP-39×38

    IR

    3W

    4.5W

    0.2kg

    LS-COP-52×50

    IR

    4W

    6W

    0.3kg

    LS-COP-61×43

    IR

    5.5W

    8W

    0.4kg

    LS-COP-70×70

    IR

    6W

    9W

    0.5kg

    LS-COP-80×80

    IR

    7W

    10W

    0.7kg

    LS-COP-90×90

    IR

    8W

    12W

    0.8kg

    LS-COP-100×100

    IR

    9W

    14W

    1.0kg

    LS-COP-120×120

    IR

    12W

    18W

    1.2kg

    LS-COP-131×140

    IR

    16W

    24W

    1.7kg

    ***Subject to actual product***

    5.Applications



    1.Surface scratch detection of reflective products

    2.Contour detection of electronic components

    3.Character detection on glossy surface

    4.Scratch inspection on glossy surface

    5.marking detection on glass and metal surface



    6.Application example



    Character detection on plastic cap

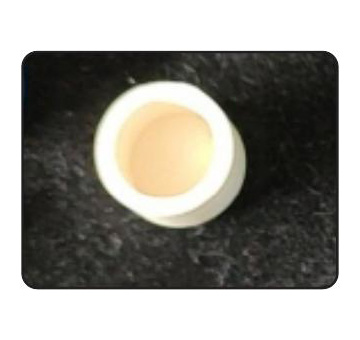

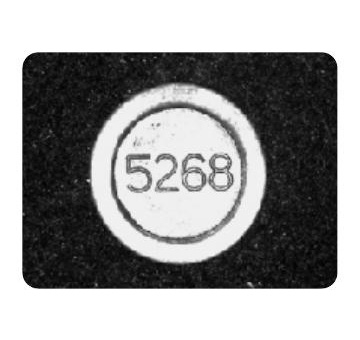

    Measured object Configuration Effect image

    7.Service



    Color temperature/ Peak wavelength

     620nm-630nm  460nm-475nm  520nm-530nm

    3200K-7000K IR 750~950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing output connector, input voltage, drive mode.

    d.Customizing mounting ways

    e.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

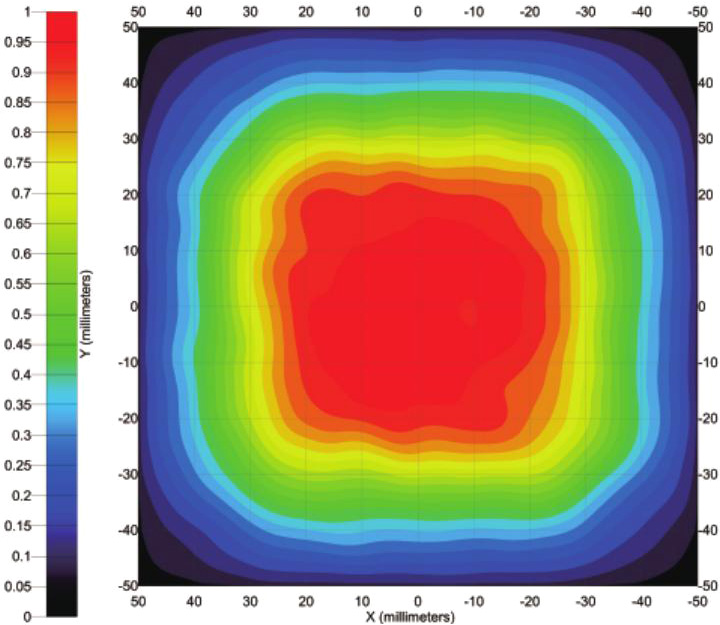

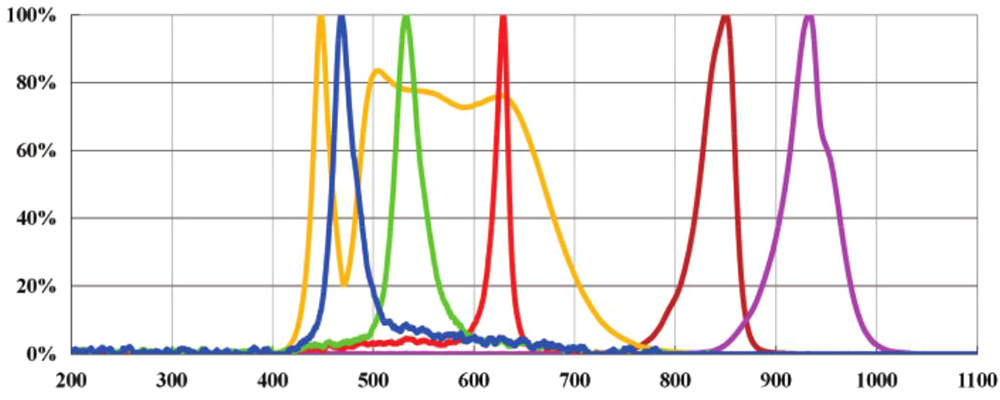

    8.Spectrum, uniformity

    Spectrum Uniformity

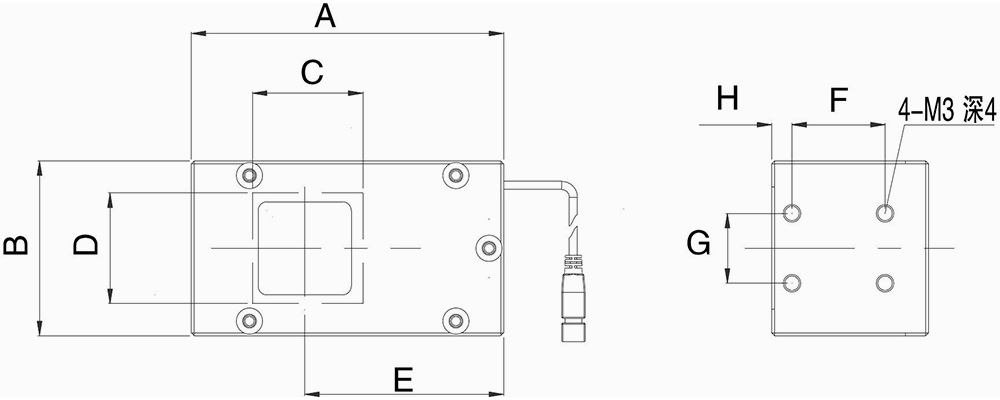

    9. Dimensions(mm)

    Model name

    Unit(mm )

    Frame size(± 1mm)

    Emitting surface size(± 1mm)

    Mounting holes(± 1mm)

    A

    B

    C

    D

    E

    F

    G

    H

    LS-COP-19×19

    53.7

    30

    19

    19

    34.2

    16

    12

    3.5

    LS-COP-32×30

    67

    40

    32

    30

    45.5

    20

    20

    10

    LS-COP-39×38

    70

    46

    39

    38

    43.5

    25

    30

    12

    LS-COP-52×50

    87

    58

    52

    50

    55

    25

    25

    19.5

    LS-COP-61×43

    90

    70

    61

    43

    53.5

    40

    30

    15

    LS-COP-70×70

    104

    81

    70

    70

    62.5

    50

    50

    6.5

    LS-COP-80×80

    114

    91

    80

    80

    69.5

    50

    50

    15.5

    LS-COP-90×90

    124

    101

    90

    90

    72

    60

    60

    15.2

    LS-COP-100×100

    134

    111

    100

    100

    77

    70

    70

    15

    LS-COP-120×120

    154

    131

    120

    120

    89

    90

    90

    15.7

    LS-COP-131×140

    174

    151

    131

    140

    97

    90

    90

    25.3

    ***The size of the light source can be customized***
