DC Constant-voltage Multi-channel Digital Controller (CFF)

Yuyao Lishuai Machine VISION Technology Co., Ltd

Mini size, multiple functions.

1. Product features

CFF series of small control units are driven by digital constant voltage and applicable on the light fixtures with 24V DC input. They have digital nixie tube display, for easy data settings. The CFF series control units have the functions of triggering, constant lighting, strobe, various PWM working frequencies, multi-channel independent output and simultaneous control multiple light fixtures. They can store data after power off, lock the operation panel to avoid accidentally touching the panel buttons. The size and weight make them suitable for most of the environments.

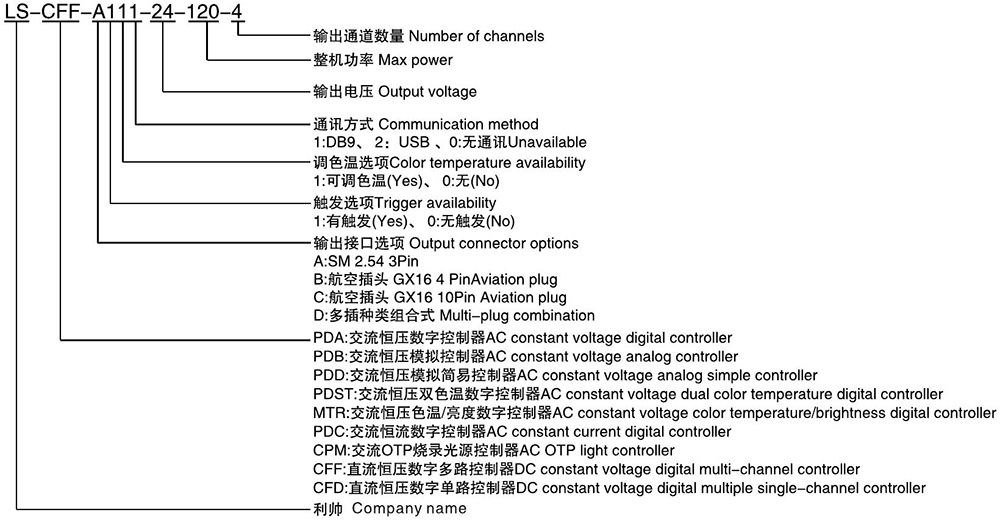

2. Naming rule

Complete model	Abbr. Model
LS-CFF-A111 -24-120-4	CFF-4

3. Product specifications

Model name	CFF-4
Input voltage	DC 24V
Lighting method	Continuous lighting/Strobe lighting
Number of channels	4 channels
Drive method	Constant-voltage system
Rated capacity	120W max (30W max per channel)
Lighting mode setting	Manual/External
Lighting mode setting	0~999 Level
Output connector	(24V LIGHT ) SM port3-pin
Trigger connector	Push-in terminals
External control connector	(EXTERNAL ) RS-232
PWM Frequency	62.5KHz、125KHz、250KHz、500KHz
Applicable light units	Lighting with input DC 24V, constant-voltage driving system
Operating temperature and humidity	Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)
Cooling method	Natural cooling
Installation method	Naturally placed
Material and surface processing	Engineering plastics
Weight	160g
Included accessories	AC power cord 1.2m, Instruction manual
USB upgrade	Support

4. Service

Accessories	a.DC extension cord
Accessories	b.AC power cord
Customization	a.Communication Cable, DC extension cord, length can be customized
	b.Output and input interface can be customized
	c.PowerA/oltage can be customized
Warranty	One-year warranty and technical support

5. Dimensions (mm)

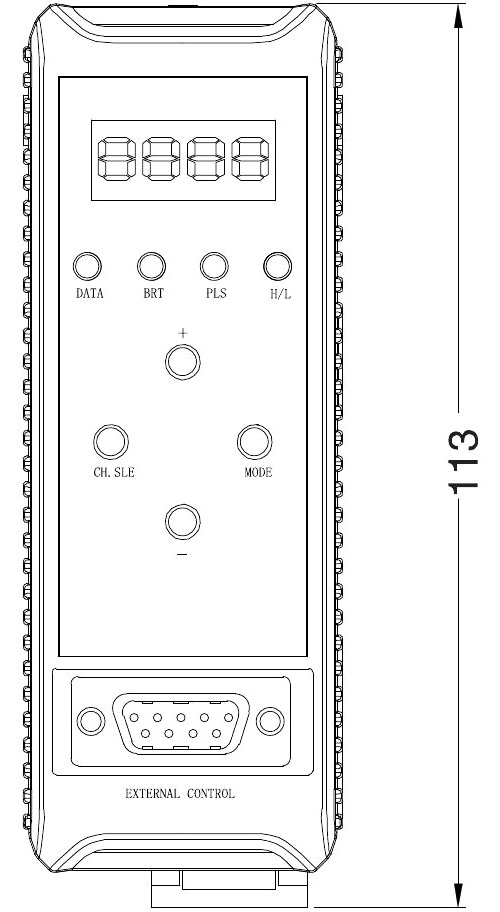

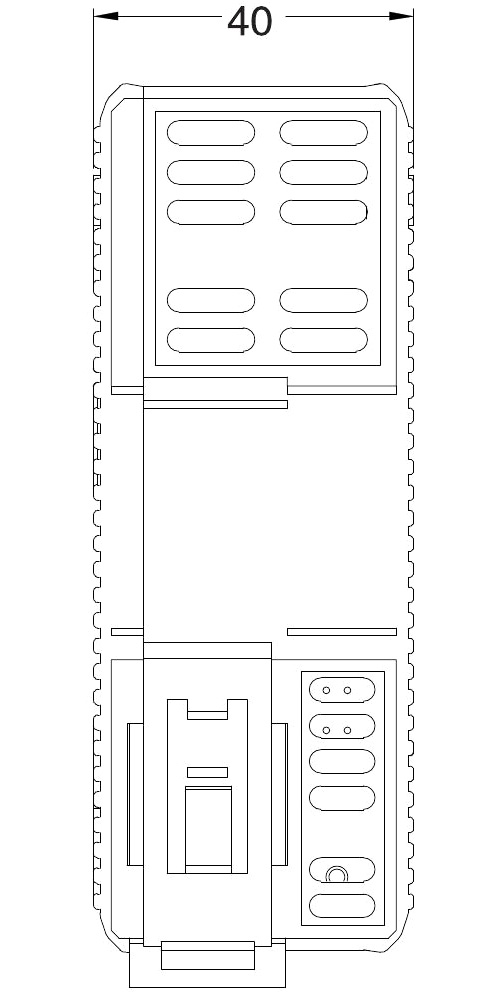

CFF-4 Front view	CFF-4 Back view

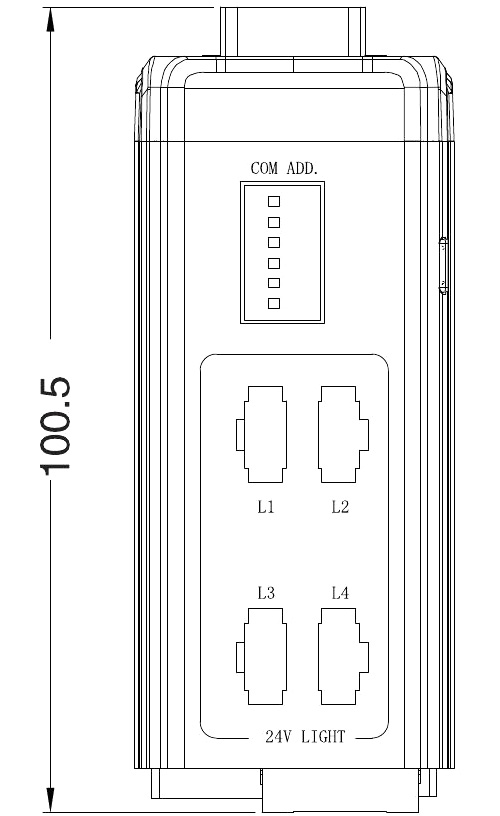

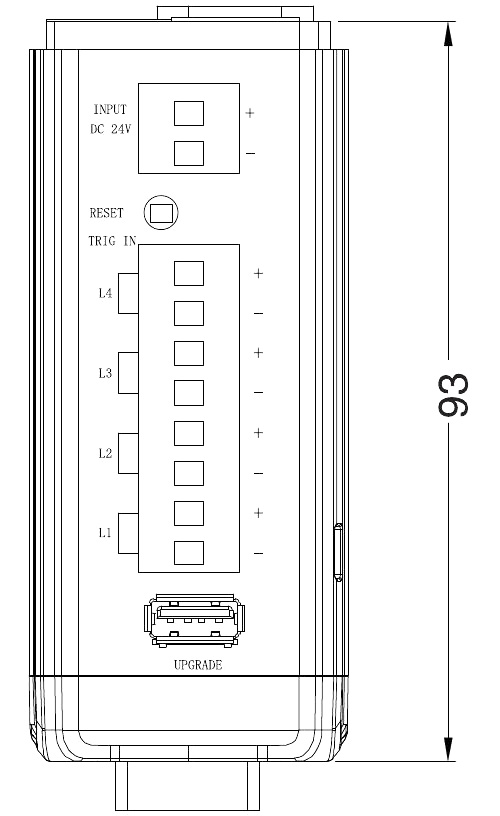

CFF-4 Top view	CFF-4 Bottom view

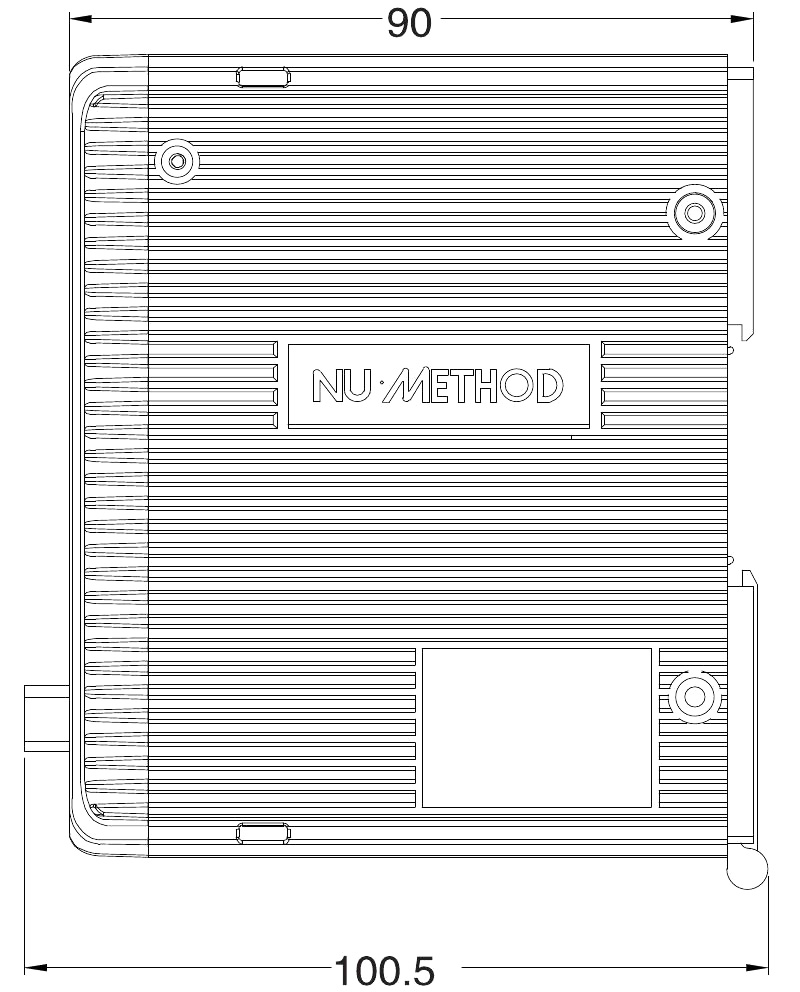

CFF-4 Right side view
