  • DC Constant-voltage Single-channel Digital Controller (CFD)

    DC Constant-voltage Single-channel Digital Controller (CFD)

    Yuyao Lishuai Machine VISION Technology Co., Ltd

    Specifications

    Mini size, multiple functions.

    1. Product features

    CFD series of small control units are driven by digital constant voltage and applicable on the lights fixtures with 24V DC input. They have 4-stop output, button switches, LED flashing frequency shows the current brightness level. The CFD series control units support triggering, single channel independent output, intensity storage. The small sizes make them suitable for most of the environments.

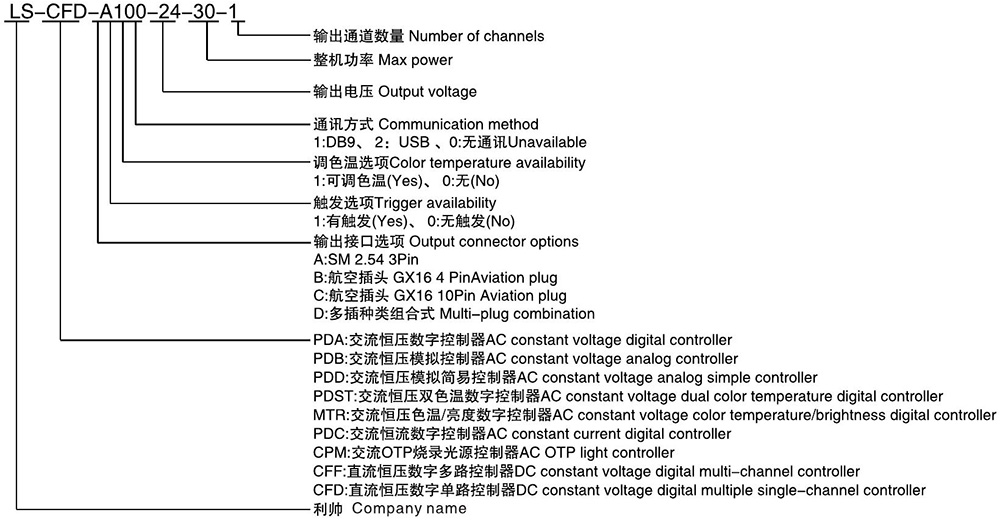

    2. Naming rule



    Complete model

    Abbr. Model

    LS-CFD-A100-24-30-1

    CFD-1

    3. Product specifications

    Model name

    CFD-1

    Input voltage

    DC 24V 30W

    Lighting method

    Continuous lighting/Strobe lighting

    Number of channels

    1 channels

    Drive method

    Constant-voltage system

    Rated capacity

    30W max (30W max per channel)

    Lighting mode setting

    Manual

    Lighting mode setting

    0〜4 级 Level

    Output connector

    (24V LIGHT ) SM port3-pin

    PWM Frequency

    62.5KHZ

    Applicable light units

    Lighting with input DC 24V, constant-voltage driving system

    Operating temperature and humidity

    Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)

    Cooling method

    Natural cooling

    Installation method

    Naturally placed

    Material and surface processing

    Aluminum alloy, surface electrophoresis and bush finished

    Weight

    40g

    Included accessories

    Instruction manual

    4. Service

    Accessories

    a.DC extension cord

    Customization

    a.DC extension cord, length can be customized

    b.Output and input interface can be customized

    c.Power/Voltage can be customized

    Warranty

    One-year warranty and technical support

    5. Dimensions (mm)

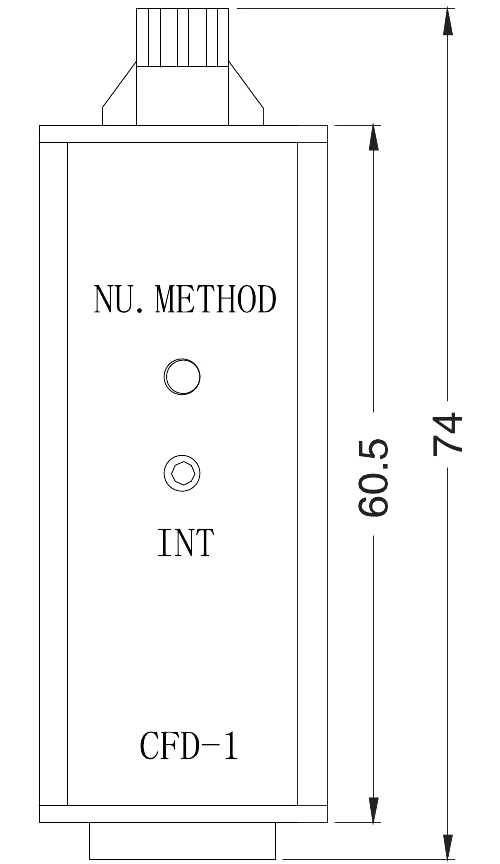

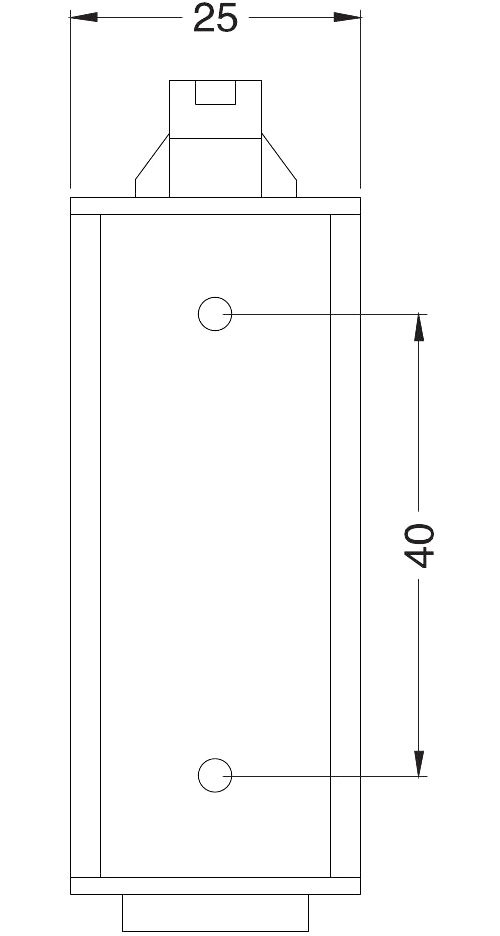

    CFD-1 Front view CFD-1 Back view

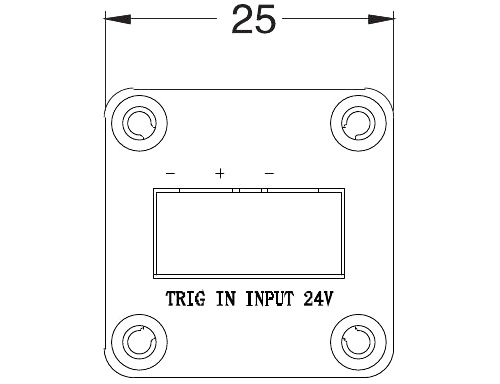

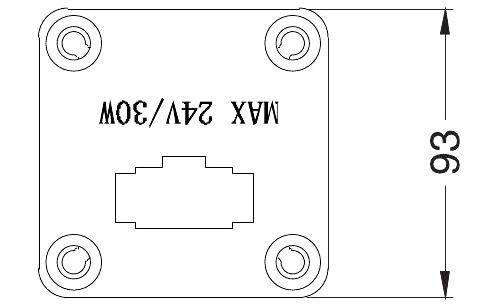

    CFD-1Top view CFD-1 Bottom view
