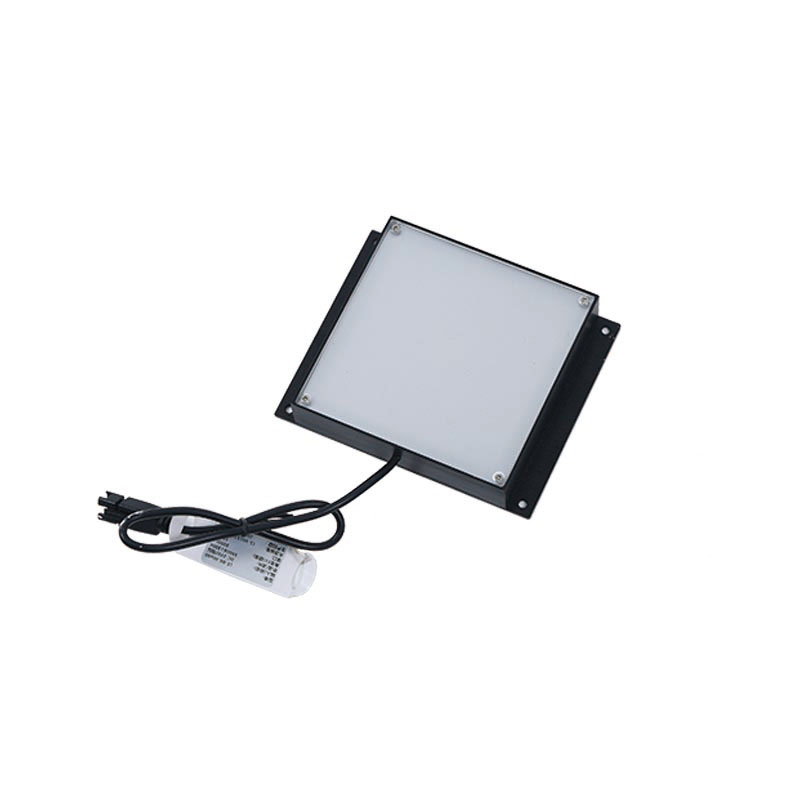

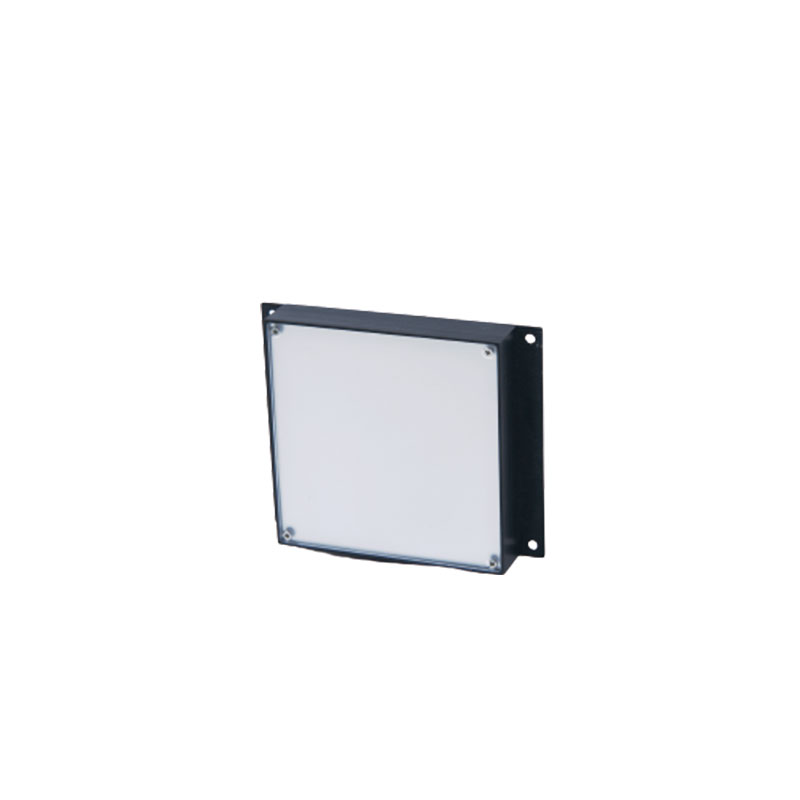

Parallel Lights (BKP)

Yuyao Lishuai Machine VISION Technology Co., Ltd

Irradiating ultra-bright and high-uniformity parallel light.

1.Product features

The BKP series light source uses a back-emission method to emit parallel, uniform and ultra-bright light.

2.Configuration example

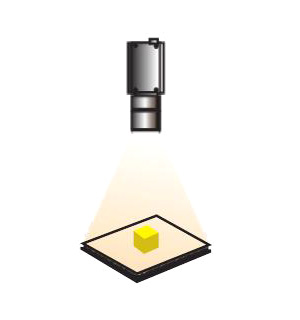

The CCD camera is placed on the top and captures the characteristics of the measured object under the flat light.

*This picture is shown as a sketch only.

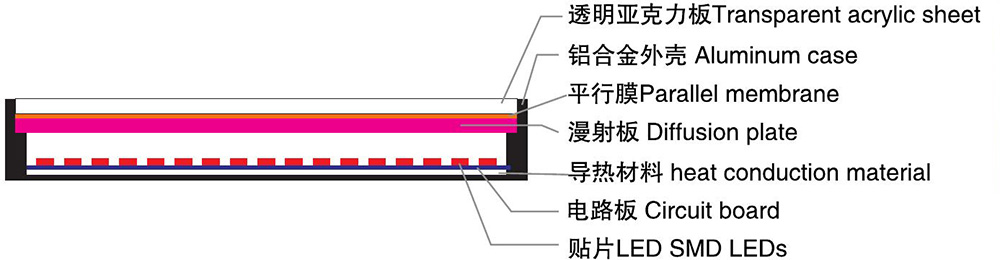

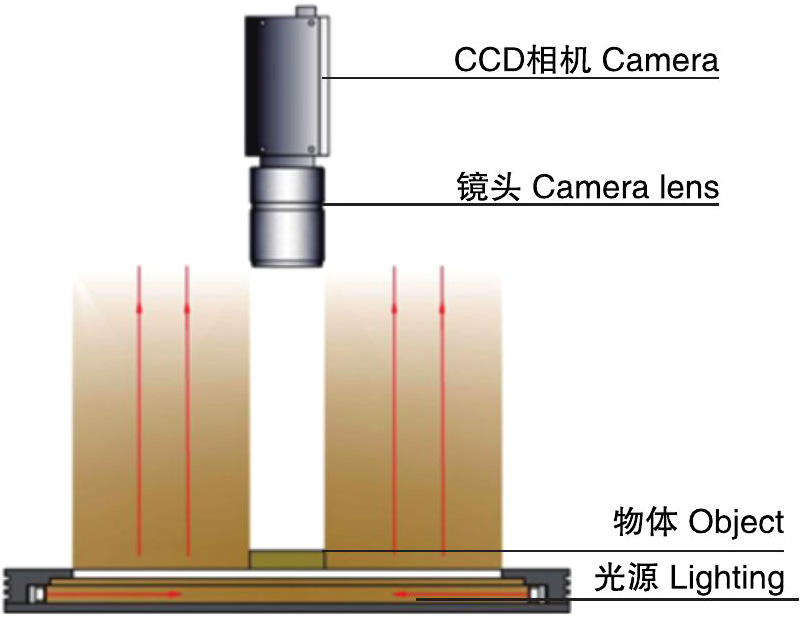

Sectional view of a parallel light

Configuration example

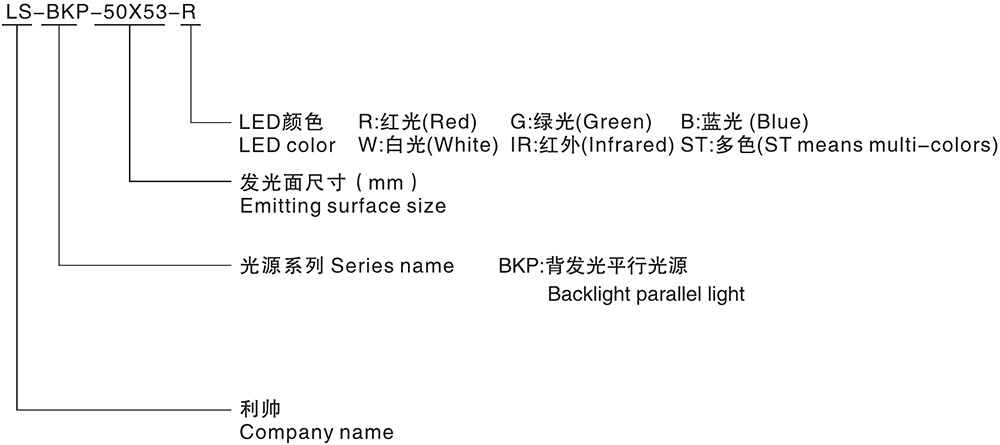

3.Model name explaination

4.Product list

Model name	LED color	Voltage	Power	Weight	Output connector
LS-BKP-50×53	●●●●IR	24V constant-voltage	2W	0.1kg	SM 2.54 3Pin
LS-BKP-70×70	●●●●IR		3W	0.2kg
LS-BKP-103×106	●●●●IR		8W	0.3kg
LS-BKP-103×159	●●●●IR		12W	0.5kg
LS-BKP-156×159	●●●●IR		18W	0.6kg
LS-BKP-156×212	●●●●IR		24W	0.7kg
LS-BKP-209×212	●●●●IR		32W	0.9kg
LS-BKP-209×265	●●●●IR		50W	1.1kg
LS-BKP-209×318	●●●●IR		48W	1.3kg
LS-BKP -262×318	●●●●IR		60W	1.7kg
LS-BKP-315×318	●●●●IR		72W	2.0kg

***Subject to actual product***

5.Applications

1.Inspecting appearance and outline

2.Dimension measurement

3.Transparent object scratch detection

4.Mechanical parts size inspection

6.Application example

Inspecting outline of metal parts

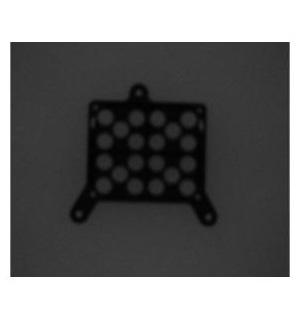

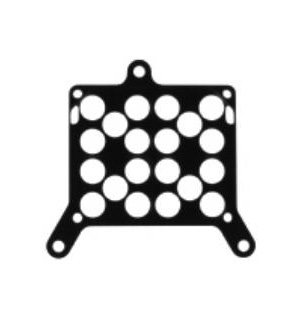

Measured obiect	Confiauration	Effect imaae

7.Service

Color temperature/ Peak wavelength	●620nm-630nm ●460nm-475nm ●520nm-530nm
Color temperature/ Peak wavelength	●3200K-7000K IR 750〜950nm
Operating temperature and humidity	a.Temperature 0-40°C
Operating temperature and humidity	b.Humidity: 20%-85% (with no condensation)
Service life	Lighting decay 5% per 30,000hrs
Accessories	a.Extension cable
Accessories	b.Constant-voltage control unit
Customization	a.Customizing emitting surface size and dimension
	b.Customizing color temperature, illuminance, peak wavelength
	c.Customizing output connector, input voltage, drive mode.
	d.Customizing uniformity(max 95%)
	e.Customizing mounting ways
	f.Customizing bi-color or multiple combined lights
Warranty	One year product warranty and provide technical support

8.Spectrum, uniformity

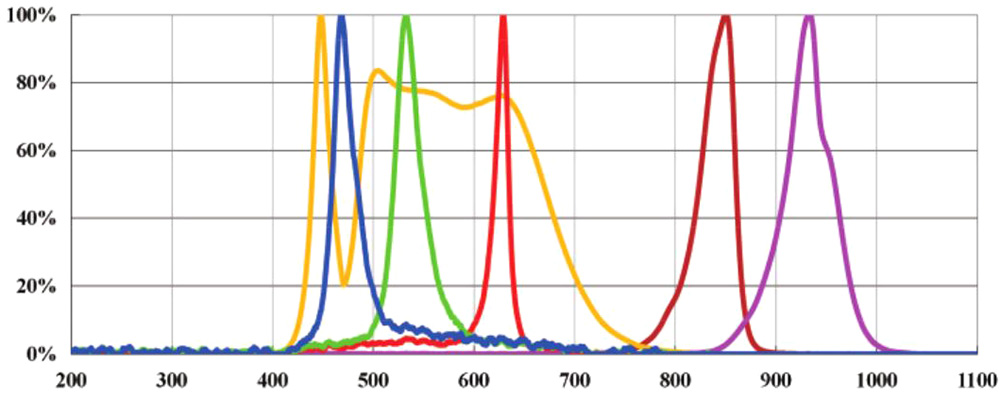

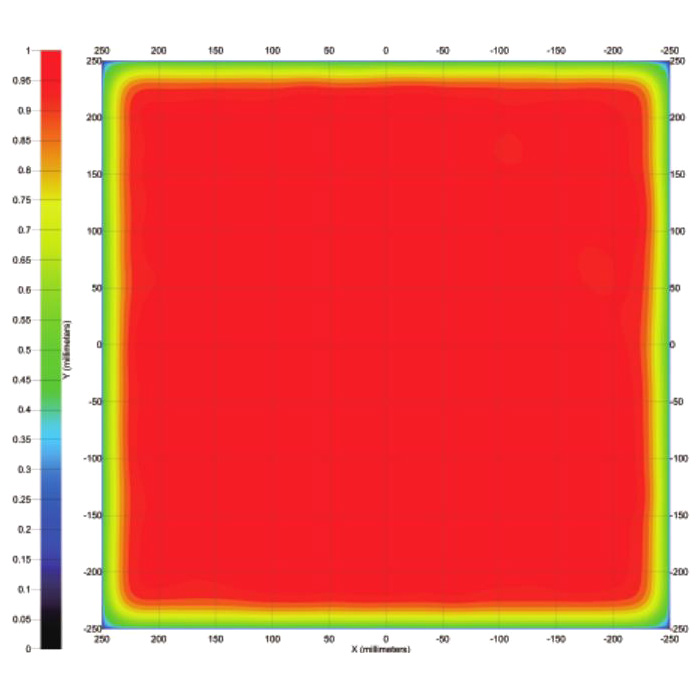

Spectrum	Uniformity（LS-BKP-70×70）

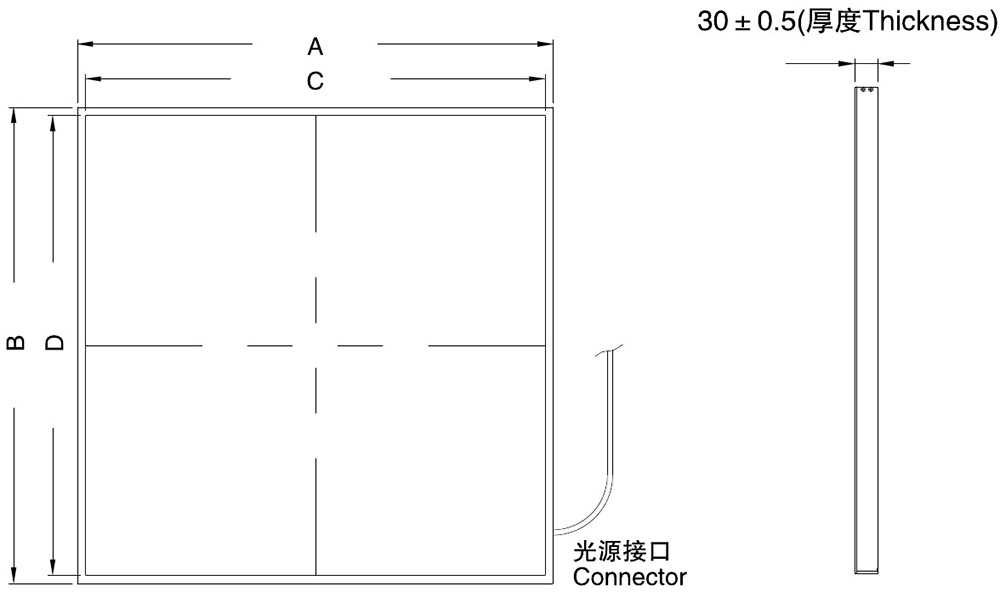

9. Dimensions(mm)

Model name	Unit(mm )
	Frame size(± 1 mm)		Emitting surface size(± 1mm)
	A	B	C	D
LS-BKP-50×53	64	78	50	53
LS-BKP-70×70	84	95	70	70
LS-BKP-103×106	117	131	103	106
LS-BKP-103×159	117	184	103	159
LS-BKP-156×159	170	184	156	159
LS-BKP-156×212	170	237	156	212
LS-BKP-209×212	223	237	209	212
LS-BKP-209×265	223	290	209	265
LS-BKP-209×318	223	343	209	318
LS-BKP-262×318	276	343	262	318
LS-BKP-315×318	329	343	315	318

***The size of the light source can be customized***
