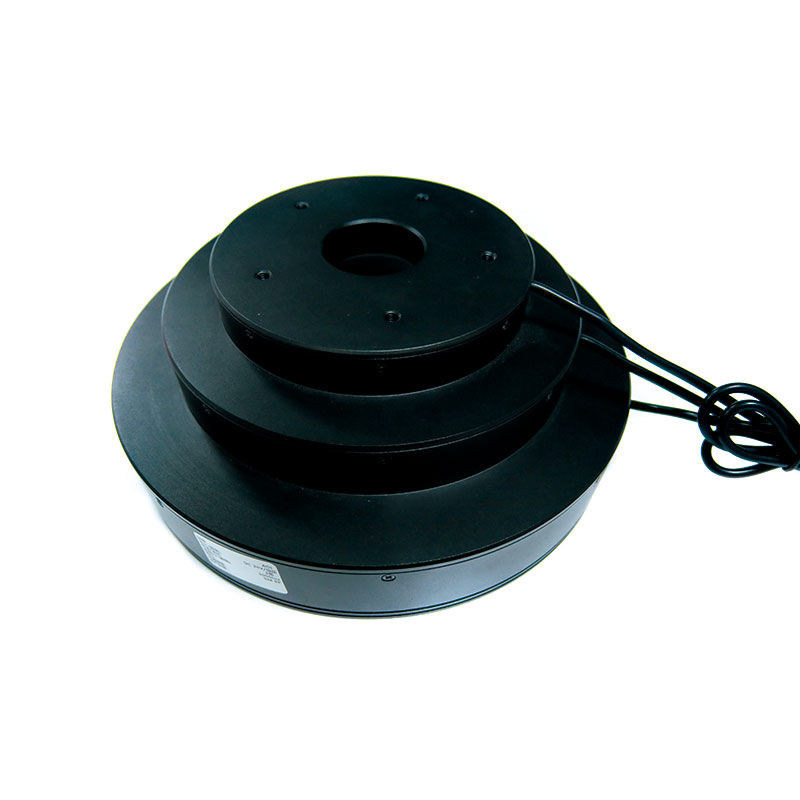

Light source (AOI)

It supports illumination in multiple colors, multiple layers and multiple angles.



1.Product features

AOI series uses RGB dip LEDs arranged evenly in circular distribution. The special diffusion plate makes the light more uniform. The intensity of the three RGB LEDs can be adjusted individually or three colors can be illuminated at the same time, highlighting and strengthening the three-dimensional characteristics of the inspected object.



2. Configuration example

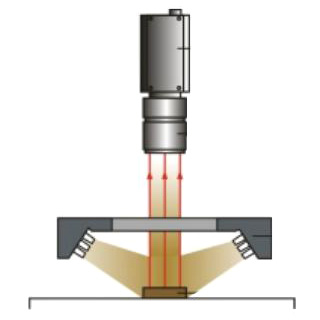

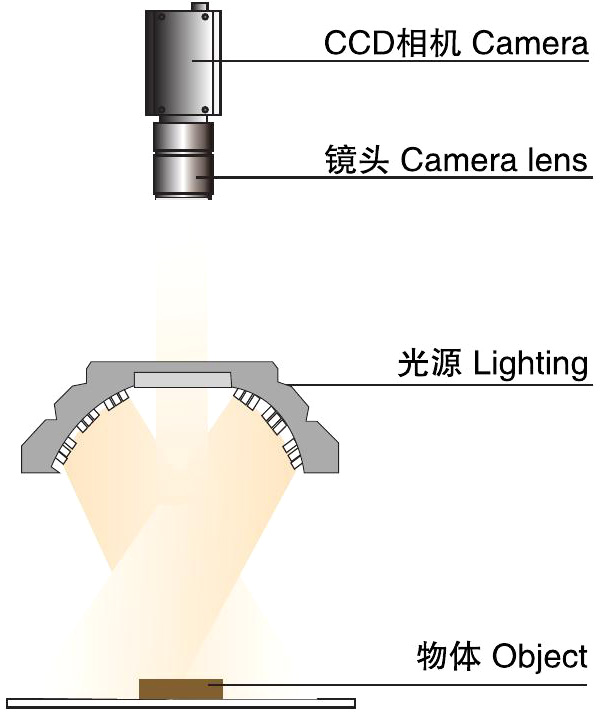

The CCD camera is placed above the object to be inspected, and the three-dimensional feature of the object can be captured through the light。



* This picture is shown as a sketch only.

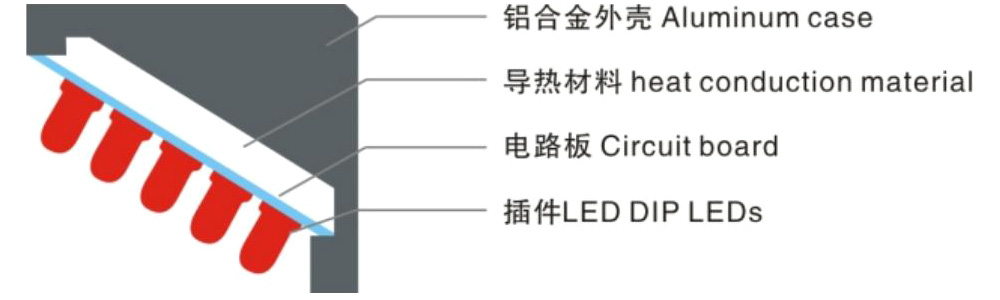

Sectional view of an AOI light

Configuration example

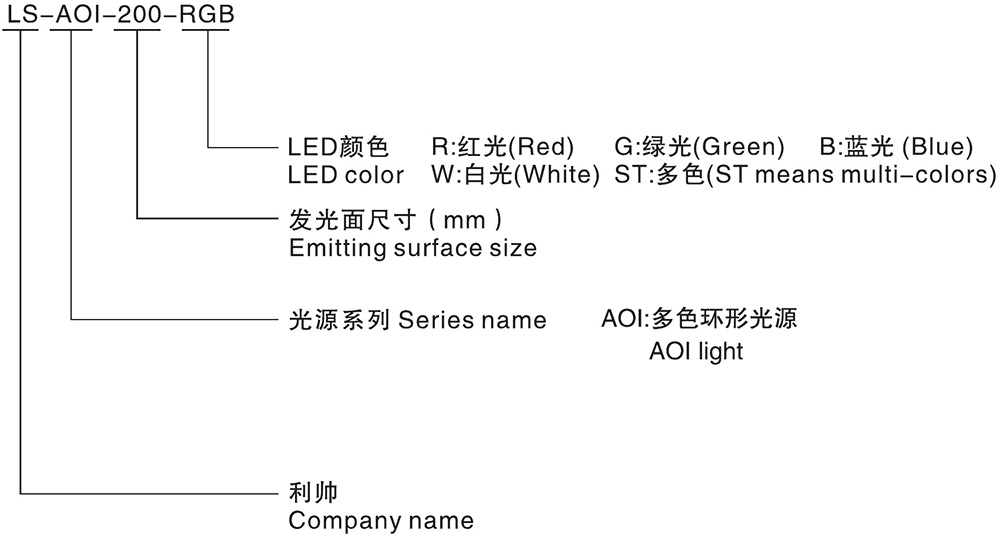

3.Model name explaination

4.Product list

***Subject to the actual product***

5.Applications

1 .Circuit solder inspection

2.Multi-level object inspection

3.Color and barcode recognition detection

4.1C pin detection



6.Application example

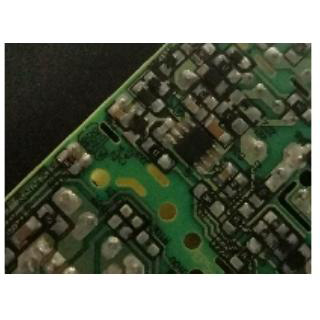

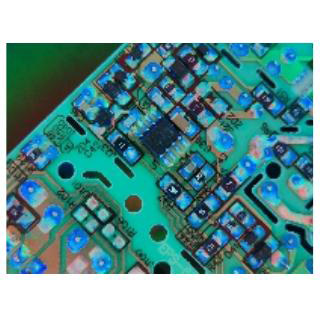

PCB solder joint inspection

Measured object	Configuration	Effect image

7.Service

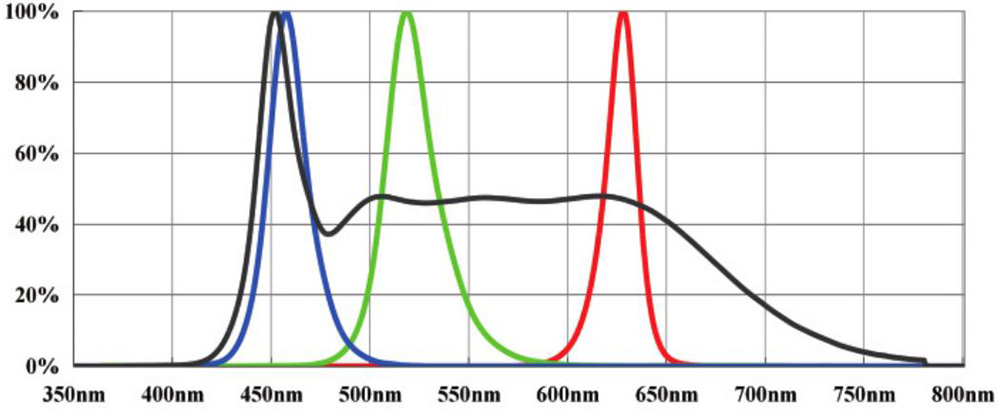

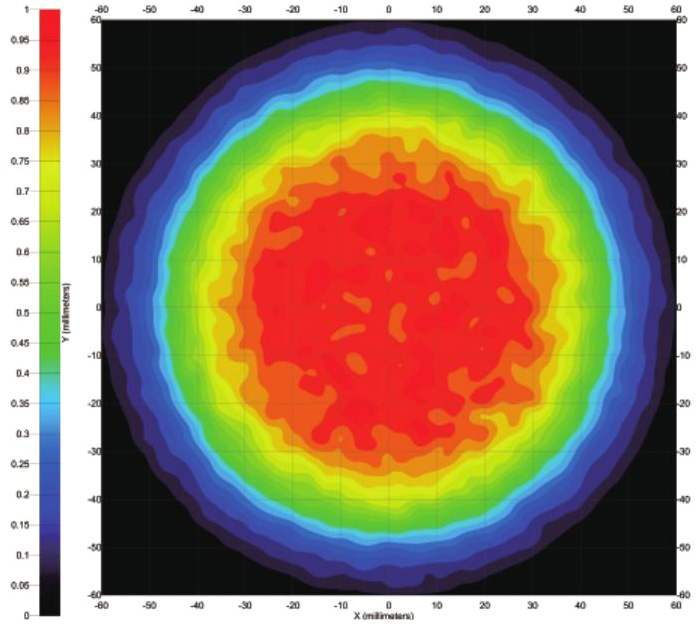

8.Spectrum, uniformity

Spectrum	Uniformity

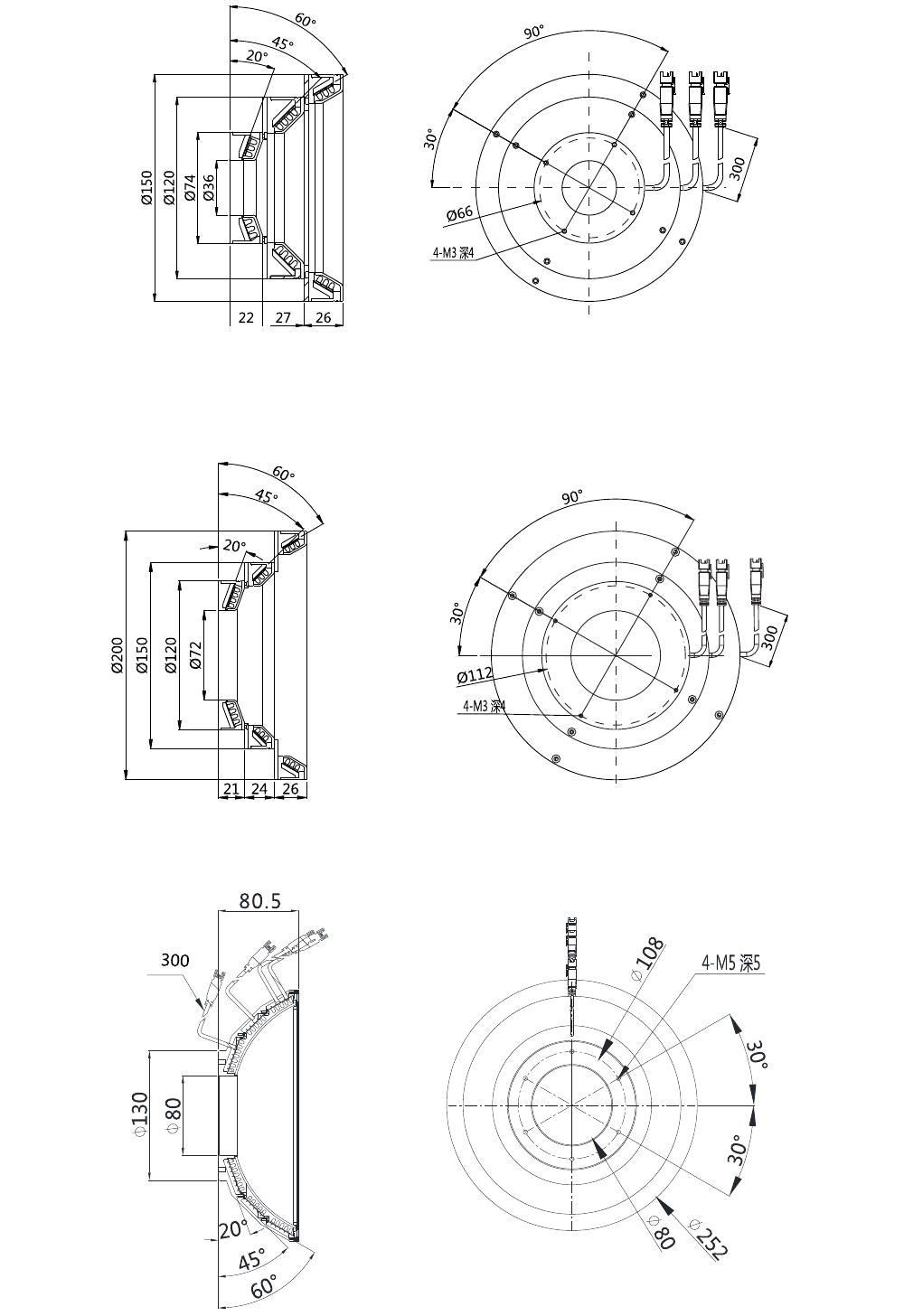

9. Dimensions(mm)
