    Specifications

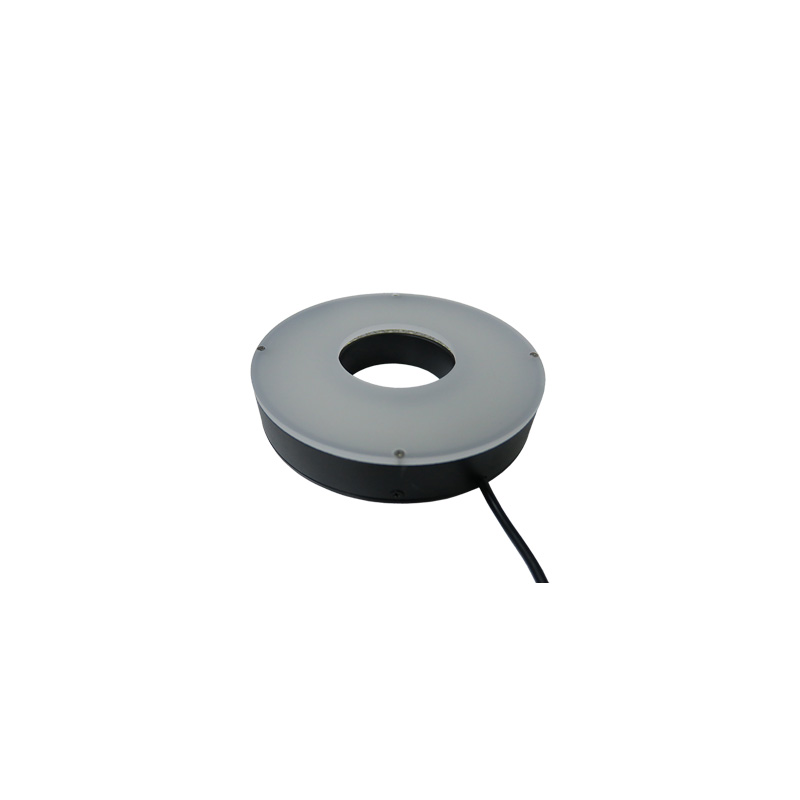

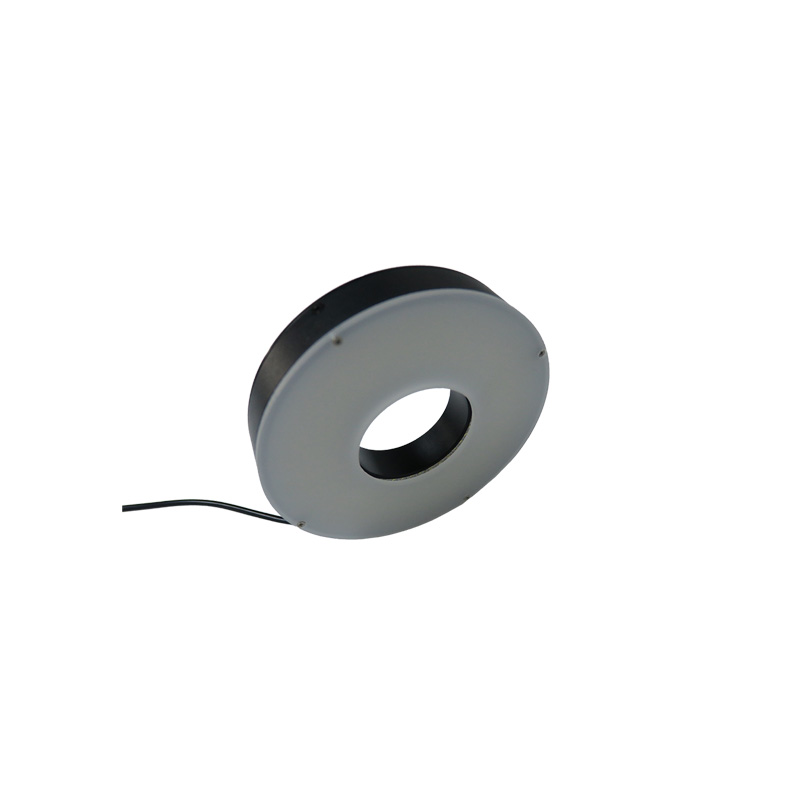

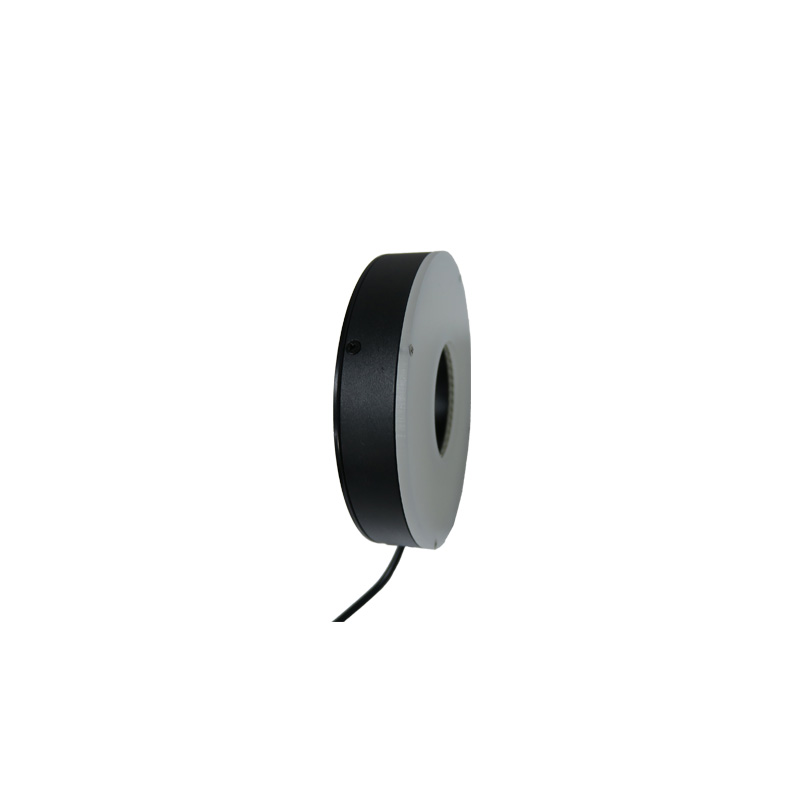

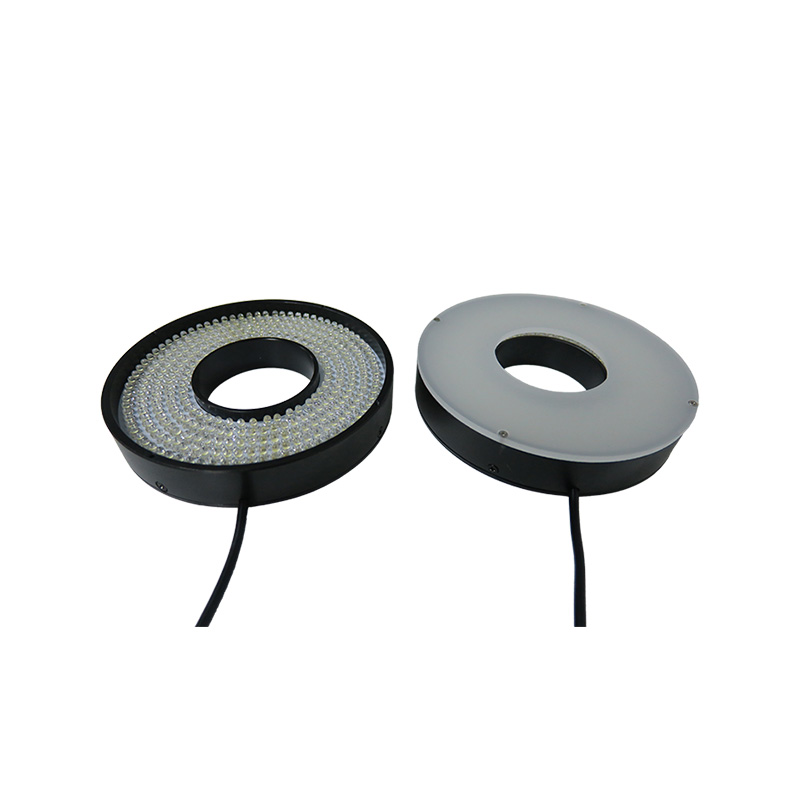

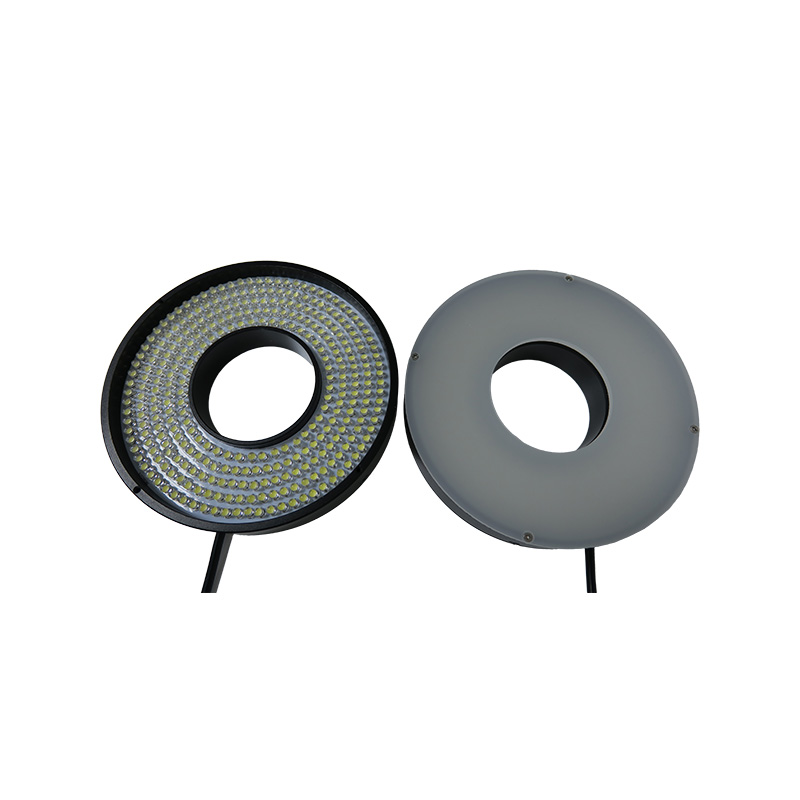

    Ring light with different angles. Optional diffuser to make the light softer.



    1.Product features



    HDR series light uses ultra-thin flexible substrate with special structure. Use light of different sizes, angles, color temperature/wavelength can illuminate the object in all directions.



    2.Configuration example



    The CCD camera captures the characteristics of the measured object through the hole in the light.



    *This picture is shown as a sketch only.



    Sectional view of a ring light

    Configuration example



    3. Model name explaination

    4.Product list



    Model name



    LED color



    Angle



    LED rows



    Voltage



    Power

    Weight

    Output

    connector

    IR

    LS-HDR-50-00

    IR

    1

    24V constant-voltage

    1.5W

    2W

    0.1kg

    SM 2.54 3Pin

    LS-HDR-50-70

    IR

    70°

    3

    2W

    2.5W

    0.1kg

    LS-HDR-75-00

    IR

    1

    2W

    2.5W

    0.1kg

    LS-HDR-75-70

    IR

    70°

    3

    5W

    6W

    0.1kg

    LS-HDR-75-90

    IR

    90°

    2

    5W

    5W

    0.1kg

    LS-HDR-102-70

    IR

    70°

    3

    7W

    8.5W

    0.2kg

    LS-HDR-120-60

    IR

    60°

    3

    10W

    12W

    0.2kg

    LS-HDR-134-70

    IR

    70°

    3

    10W

    12.5W

    0.3kg

    LS-HDR-134-90

    IR

    90°

    2

    11W

    13W

    0.3kg

    LS-HDR-172-70

    IR

    70。

    3

    13W

    16W

    0.4kg

    LS-HDR-210-70

    IR

    70°

    3

    17W

    19.5W

    0.4kg

    ***Subject to actual product***

    5.Applications



    1.Inspecting the appearance defect

    2.Locating the edge of the hardware piece

    3.Inspecting the appearance of workpiece

    4.Inspecting electronic components

    5.Inspecting printing on PCB



    6.Application example



    Inspecting the characters on coins

    Measured object Configuration Effect image

    7.Service



    Color temperature/ Peak wavelength

    620nm-630nm 460nm-475nm 520nm-530nm

    3200K-7000K IR750~950nm

    Operating temperature and humidity

    a.Temperature 0-40°C

    b.Humidity: 20%-85% (with no condensation)

    Service life

    Lighting decay 5% per 30,000hrs

    Accessories

    a.Extension cable

    b.Constant-voltage control unit

    c.Diffusion plate

    Customization

    a.Customizing emitting surface size and dimension

    b.Customizing color temperature, illuminance, peak wavelength

    c.Customizing LED rows

    d.Customizing output connector, input voltage, drive mode.

    e.Customizing LED rows

    f.Customizing bi-color or multiple combined lights

    Warranty

    One year product warranty and provide technical support

    8.Spectrum, uniformity

    Spectrum Uniformity(LS-HDR-134)

    9. Dimensions(mm)


    Model name

    Unit(mm)

    Frame size(±1mm)

    Emitting surface size(±1mm)

    安装孔(±1mm)

    相机孔(± 1mm)

    A

    B

    C

    D

    LS-HDR-50-70

    Φ50

    Φ36

    Φ31

    Φ20

    LS-HDR-75-70

    Φ75

    Φ62

    Φ56

    Φ45

    LS-HDR-102-70

    Φ102

    Φ88

    Φ82

    Φ70

    LS-HDR-134-70

    Φ134

    Φ120

    Φ114

    Φ96

    LS-HDR-172-70

    Φ172

    Φ158

    Φ151

    Φ134

    LS-HDR-210-70

    Φ210

    Φ196

    Φ188

    Φ174

    Model name

    Unit(mm )

    Frame size(± 1mm)

    Emitting surface size

    (± 1mm)

    Mounting hole(± 1mm)

    Camera hole(± 1mm)

    A

    B

    C

    D

    LS-HDR-50-00

    Φ50

    Φ25

    Φ45.7

    Φ20

    LS-HDR-75-00

    Φ75

    Φ50

    Φ71.7

    Φ45

    Model name

    Unit(mm )

    Frame size(± 1mm)

    Emittinq surface size(± 1mm)

    Mounting hole(±1mm)

    Camera hole(± 1mm)

    A

    B

    C

    D

    LS-HDR-120-60

    Φ120

    Φ108

    Φ110

    Φ72

    Model name

    Unit(mm)

    Frame size

    (± 1mm)

    Emitting surface size(± 1mm)

    Mounting hole(±1mm)

    Camera hole(± 1mm)

    A

    B

    C

    D

    LS-HDR-75-90

    Φ75

    Φ69

    Φ60

    Φ45

    LS-HDR-134-90

    Φ134

    Φ127

    Φ115

    Φ96

    ***The size of the light source can be customized***
